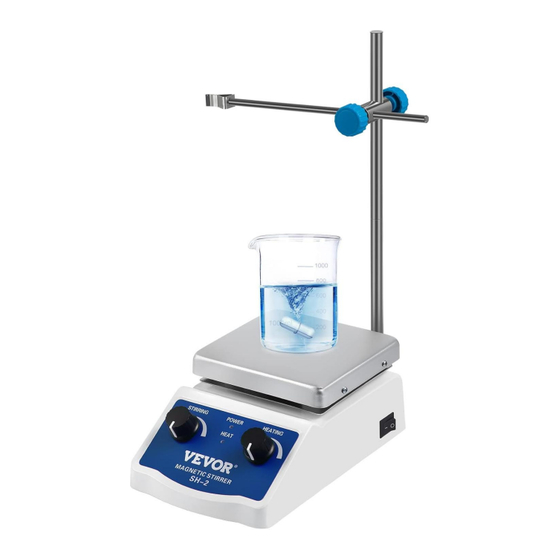

MAGNETIC STIRRERS
USER MANUAL
MODEL NO.: 79-1, 85-2, SH-2
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR 79-1
Summary of Contents for VEVOR 79-1
- Page 1 Technical Support and E-Warranty Certificate https://www.vevor.com/support MAGNETIC STIRRERS USER MANUAL MODEL NO.: 79-1, 85-2, SH-2 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if...
- Page 3 WARNING: Please read this manual carefully before using the product. Failure to do so may result in serious injury. Warning! Read the operating instructions carefully before use. Ensure that only trained staff works with the instrument. Risk of burn! ...
-
Page 4: Proper Use
Elemental fluorine, three fluoride and alkali metals will corrode the PTFE and Halogen alkanes making it expand at room temperature. Molten alkali, alkaline earth metals or their solution, as well as the powder in the second and third ethnic of the Periodic Table of Elements will have a chemical reaction with PTFE when temperature reaches 300 ~ 400℃... -
Page 5: Technical Specifications
(min. 100 mm). Figure 1 This device is not suitable for use in residential areas or other constraints mentioned in Safety Instructions. TECHNICAL SPECIFICATIONS Model 79-1 85-2 SH-2 120/ 120/ 120/ Voltage [VAC]... -
Page 6: Package Contents
PACKAGE CONTENTS MODEL NO.: 79-1 Support*1 Fixed assembly*1 Machine*1 Stirrer bar*1 MODEL NO.: 85-2 Support*1 Fixed assembly*1 Machine*1 Temperature probe*1 Stirrer bar*1... -
Page 7: Assembly Steps
MODEL NO.: SH-2 Support*1 Fixed assembly*1 Power cord*1 Stirrer bar*1 Machine*1 ASSEMBLY STEPS Support frame and sensor installation steps 1. Connect the upright post of the support frame (screw connection, please do not plug it directly) ; 2. Install the crossbar fixer of the support frame; 3. -
Page 8: Product Functions
4. Please ensure that all parts are tightly connected without looseness; If you find that the connection part is loose during use, please stop using it immediately and reinstall it to avoid causing parts and experiments. The instrument is damaged. PRODUCT FUNCTIONS MODEL NO.: 79-1... - Page 9 Support Heating plate Power switch Mixing knob Heating switch Operation mode: 1. Place the machine on a horizontal desktop, and then connect the power cord to the power outlet on the back of the base. 2. Plug the other end of the power cord into a standard socket. 3.
- Page 10 4. Place the machine stably, put the beaker with the liquid medicine in the center of the working plate, put an appropriate rotor in the beaker and make it in the center of the beaker, turn on the power supply. Press the "Heat" button, the line (-) indicates on, and (o) indicates OFF, to start the machine to run and Heat up.
- Page 11 Operation mode: 6. Place the machine on a horizontal desktop, and then connect the power cord to the power outlet on the back of the base. 7. Plug the other end of the power cord into a standard socket. 8. Pay attention to the power switch on the right side of the base. The line (-) indicates on, and (o) indicates OFF.
- Page 12 degrees when P equals 10, then it means it it will start to control the heating speed once it reaches 49 degrees, when P equals 4, then it will start to control the heating speed once it reaches 47.5 degrees. Please decrease P value if the temperature is in huge disparity, please increase P value if the temperature is rising too slowly or just cannot reach your desired temperature.
- Page 13 Use operation mode 1. Place the machine stably, and put the beaker with the liquid medicine in the center of the working plate. 2. put the appropriate rotor in the beaker, and make it in the center of the beaker. 3.
- Page 14 This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.
- Page 15 Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 SHUNSHUN GmbH Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten,Germany Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom...
- Page 16 Support and E-Warranty Certificate www.vevor.com/support...
