Powered Asset Gateway
CBL-AG-BABS / CBL-AG-BPLC
INSTALL GUIDE - TRAILER ..................................................................... 2-5
IMPORTANT SAFETY AND USE INFORMATION ....................................... 6
samsara.com/support
© 2024 Samsara Inc.
samsara.com/fleet-app
R04

Advertisement

loading
Need help?

Need help?

Do you have a question about the CBL-AG-BABS and is the answer not in the manual?

Questions and answers

Summary of Contents for Samsara CBL-AG-BABS

  • Page 1 Powered Asset Gateway CBL-AG-BABS / CBL-AG-BPLC INSTALL GUIDE - TRAILER ..............2-5 IMPORTANT SAFETY AND USE INFORMATION ........6 samsara.com/fleet-app samsara.com/support © 2024 Samsara Inc.
  • Page 2: Cable Diagram

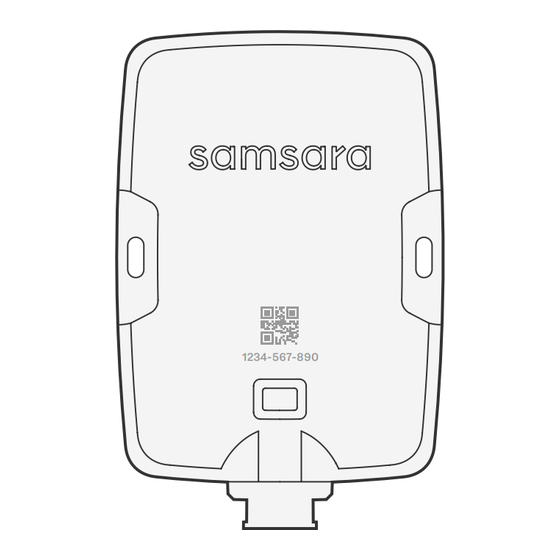

    (to ABS) WHAT YOU’LL NEED 1234-567-890 1x Asset Gateway 1x Asset Gateway Cable 2x #6 Asset Gateway screws 4x Mountable Zip-ties 4x Zip-tie Mounting screws Diagonal Cutters Drill 1x Bracket 1x Connector Cover (optional) (optional) samsara.com/support © 2024 Samsara Inc.
  • Page 3 To locate the connector, trace the wire harness from the ABS unit. 1234-567-890 7-Way Connect the trailer’s 5-pin connection to the Samsara cable using both of the two connectors you’ve just disconnected. warning: Ensure both connections are fully mated and retaining latch is engaged.
  • Page 4 Secure the wire harness every 30 to 50 cm using Plug the cable into the AG and twist to lock. cable ties while ensuring that the cables are free from sharp edges, bending load, or tension. samsara.com/support © 2024 Samsara Inc.
  • Page 5 Turn on power to the trailer and verify that the trailer’s ABS system is functioning properly as described in step 2. Now that the AG is powered, verify the connection in the Samsara dashboard. After a successful connection, the LED will turn green.
  • Page 6: Important Safety Information

    Do not attempt to repair this product, use any third party replacement parts with this product, or otherwise modify this product except in accordance with product manuals or as otherwise instructed by Samsara. Failure to do so may cause property damage, lead to physical injury, or void your product warranty.

This manual is also suitable for:

Cbl-ag-bplc
