Summary of Contents for 4B PST2000A

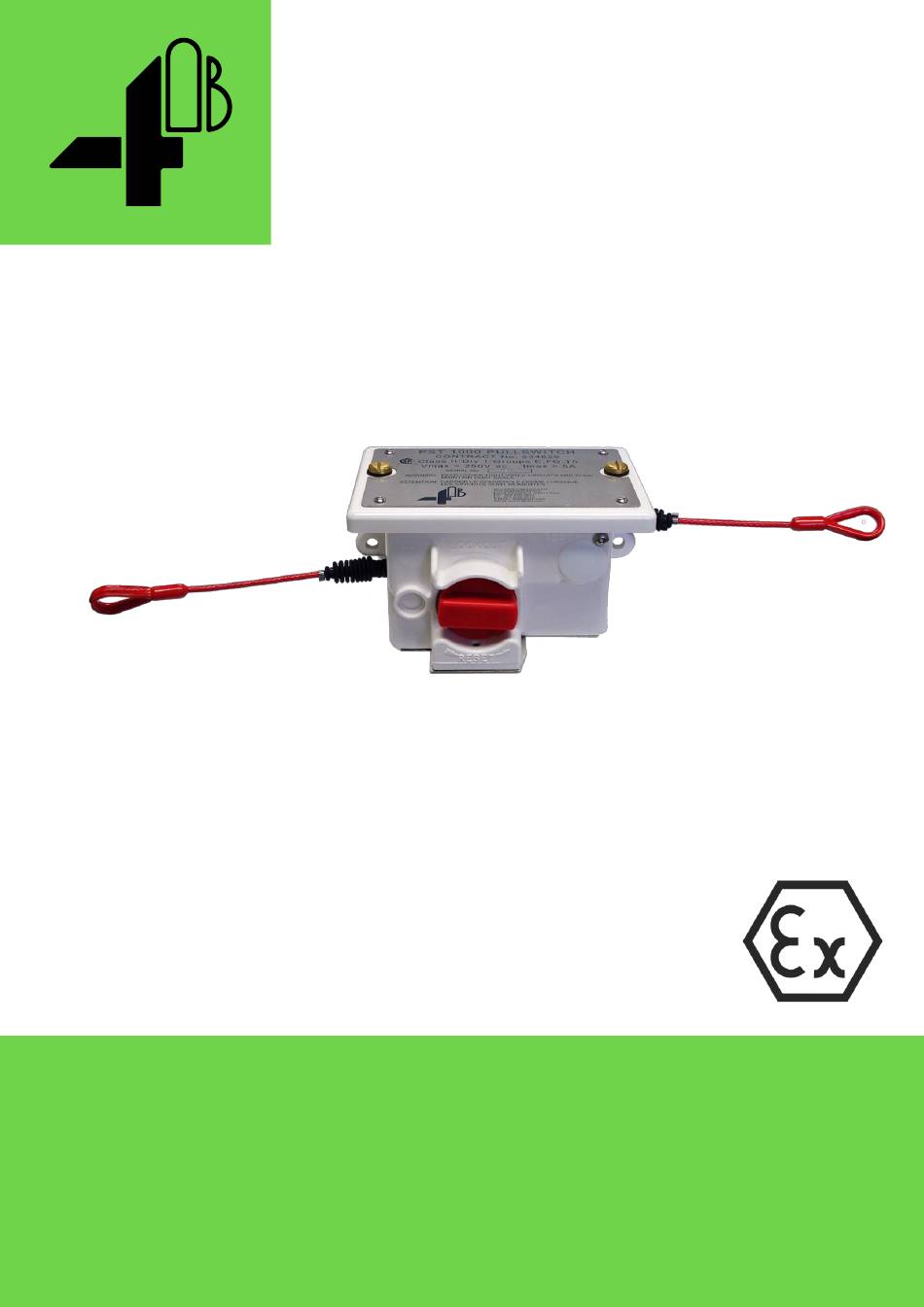

- Page 1 INSTRUCTION MANUAL Approvals PST2000A Pullswitch Part Number: PST2000A REV071524...
- Page 2 To download the digital version of this instruction manual and to check other available languages scan the following QR code. Para descargar la versión digital de este manual de instrucciones y consultar otros idiomas disponibles, escanee el siguiente código QR. Para baixar a versão digital deste manual de instruções e verificar outros idiomas disponíveis, escaneie o seguinte código QR.
-
Page 3: Table Of Contents
TABLE OF CONTENTS CUSTOMER SAFETY RESPONSIBILITIES ................4 PRODUCT OVERVIEW ......................7 SPECIFICATIONS .........................7 DIMENSIONS ........................8 TYPICAL CONFIGURATIONS ....................9 STANDARD WIRING DIAGRAM ..................11 INSTALLATION ......................... 12 TESTING & COMMISSIONING ..................13 TROUBLESHOOTING GUIDE .................... 14 PARTS & ACCESSORIES....................15 INSTALLATION IMAGES ....................16 APPENDIX 1 PILZ SAFETY RELAYS ................ -
Page 4: Customer Safety Responsibilities
The proper installation and maintenance of all our products is the responsibility of the user unless you have asked 4B to perform these tasks. - Page 5 Correct installation of the product is important for safety and performance. If you have not asked 4B to perform the installation of the unit on your behalf, it is critical for the safety of your operation and those who may perform work on your operation that you select a qualified and competent electrical installer to undertake the installation.
- Page 6 Retain the Operation Manual and other important maintenance and service documents provided by 4B and have them readily available for people servicing your 4B equipment. Should you have any questions, please call the 24-hour hotline number 309-698-5611, contact your local distributor, or use one of the contact ways available in our website www.go4b.com/usa.
-
Page 7: Product Overview

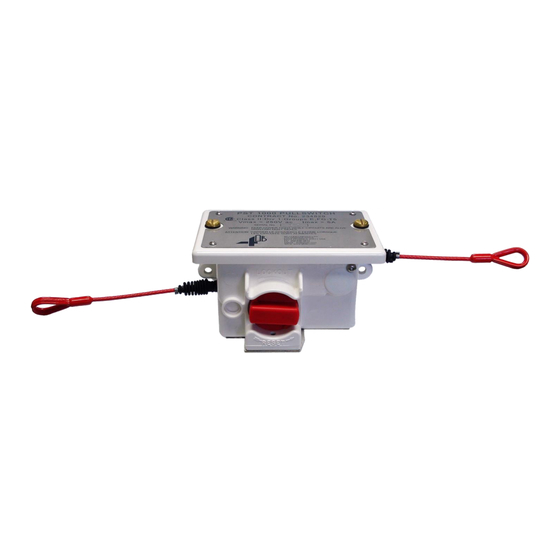

PRODUCT OVERVIEW The Pullswitch is a fail-safe taut wire emergency pull cord safety stop switch for open conveyors. PVC coated steel pull wire and pigtails connect between the switches to provide easy installation and continuous emergency stop access along the length of the entire conveyor. -
Page 8: Dimensions
DIMENSIONS 8 of 26... -
Page 9: Typical Configurations
For double sided installations, 4B recommends mirroring Pullswitch installations on both sides of the conveyor. Use the illustrations 1 - 4 above as a reference for the installation configurations listed below -... - Page 10 NOTE Install a Pigtail (PTPVC4) every 10 feet along the entire length of the conveyor. • Some regulations may require an anchor spring (PAS100) at the start and end • points instead of fixed anchors as illustrated above. 10 of 26...
-
Page 11: Standard Wiring Diagram
STANDARD WIRING DIAGRAM All wiring must be In accordance with local and national electrical codes and should be undertaken by an experienced and qualified electrician. Always use dust/liquid tight flexible metal conduit with approved fittings to protect the sensor cables. Use rigid metal conduit to protect the cables from the sensors to the control unit. -
Page 12: Installation
Fit pull wire and support guides (pigtails or eyebolts) along the length of the system. Detailed configuration diagrams can be found on pages 8 - 9. For double sided installations, 4B recommends mirroring the installation on both sides of the conveyor. -
Page 13: Testing & Commissioning
Reset the system by turning the lockout knob counterclockwise to its original position. If the system does not reset, then check the tension of the cable. 4B recommends inspecting and testing the operation of the system at regular intervals. WARNING... -
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE FAULT REMEDY Getting an alarm, but the Check that there is tension on the cable. The Pullswitch is a pull wire cable has not been taut wire system, so you should get an alarm if the cable is pulled. -
Page 15: Parts & Accessories
PARTS & ACCESSORIES 5. PFK100 - Flag Indicator* 1. PSE100 - Wire Rope Thimble 6. PWPVCR - Pull Wire (Red) 2. PDS100 - D-Shackle 7. PTPVC4 - PVC Coated Pigtail 3. PTA100 - Tensioner 8. PGSC100 - Wire Rope Clip 4. -
Page 16: Installation Images
INSTALLATION IMAGES Pullswitch Installed on Open Conveyor at Sand and Gravel Facility Customer Fabricated Brackets for Pullswitch Installation at Grain Handling Facility Pull Wire Installation with Pigtails Every 3m (10 ft.) at Grain Handling Facility 16 of 26... -
Page 17: Appendix 1 Pilz Safety Relays
APPENDIX 1 PILZ SAFETY RELAYS PNOZ X2.7P and PNOZ X2.8P Introduction Pilz safety relays type PNOZ X2.7P and PNOZ X2.8P are designed for use in emergency stop circuits. These relays comply with BSEN 60204-1, and when used in conjunction with the Pullkeys described in this manual, meet the requirements of BSEN 418 and BSEN 954-1 (Category 2 or Category 3). - Page 18 Installation The Pilz safety relays described in the manual must be installed by a competent electrician or a person trained and instructed who is familiar with the appropriate legislation for controlling machines. Familiarity with the Health and Safety at Work Act and local regulations are required.
- Page 19 Fig 2 - Pilz Safety Relay PNOZ X2.7P (Single Channel With Monitored Manual Reset Provided terminal S21 is connected to earth, earth fault protection is provided on the input circuit connected between terminal S11 and S12. The reset switch is active after a delay of 300 ms has been allowed following the Pullkey having been reset or power restored after a loss of power.
- Page 20 Fig 3 - Pilz Safety Relay PNOZ X2.7P (Dual Channel With Monitored Manual Reset Provided terminal S21 is connected to earth, earth fault protection is provided on the input circuit connected between terminals S11 and S12 and S11 and S52. The reset switch is active after a delay of 300 ms has been allowed following the Pullkey having been reset or power restored after a loss of power.
- Page 21 Fig 4 - Pilz Safety Relay PNOZ X2.8P (Single Channel With Automatic Reset) Provided terminal S21 is connected to earth, earth fault protection is provided on the input circuit connected between terminal S11 and S12. The arrangement shown provides automatic reset, since terminals S12 and S34 are linked.
- Page 22 Fig 5 - Pilz Safety Relay PNOZ X2.8P (Dual Channel With Automatic Reset) Provided terminal S21 is connected to earth, there is earth fault protection on the input circuits connected between terminal S11 and S12 and between S11 and S 52. The arrangement shown provides automatic reset, since terminals S12 and S34 are linked.
- Page 23 Operation When the Pullkeys are reset with the switch contacts closed and the Reset button pressed (if fitted), relays K1 and K2 energise. Indicators CH 1 and CH 2 will glow and the three sets of safety contacts 13-14; 23-24 and 33-34 close, and the auxiliary contact 41-42 opens. In the case of relay type PNOZ X2.7P, a delay of 300 ms must elapse before the reset switch becomes active.
- Page 24 NOTES 24 of 26...
-
Page 25: Product Warranty
(1) year after date of purchase from 4B. Any product determined by 4B at its sole discretion to be defective in material or workmanship and returned to a 4B branch or authorized service location, as 4B designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced at 4B’s option. - Page 26 P.O Box: SHJ-0., UAE reg. no. 23784 Jiangsu Province Tel: +971 (0) 6 5212 044 Tel: +86-136 0160 9266 Copyright © 2023 4B Group - All Rights Reserved go4b.com 4B Group reserves the right to change the contents of this document without prior notice.
