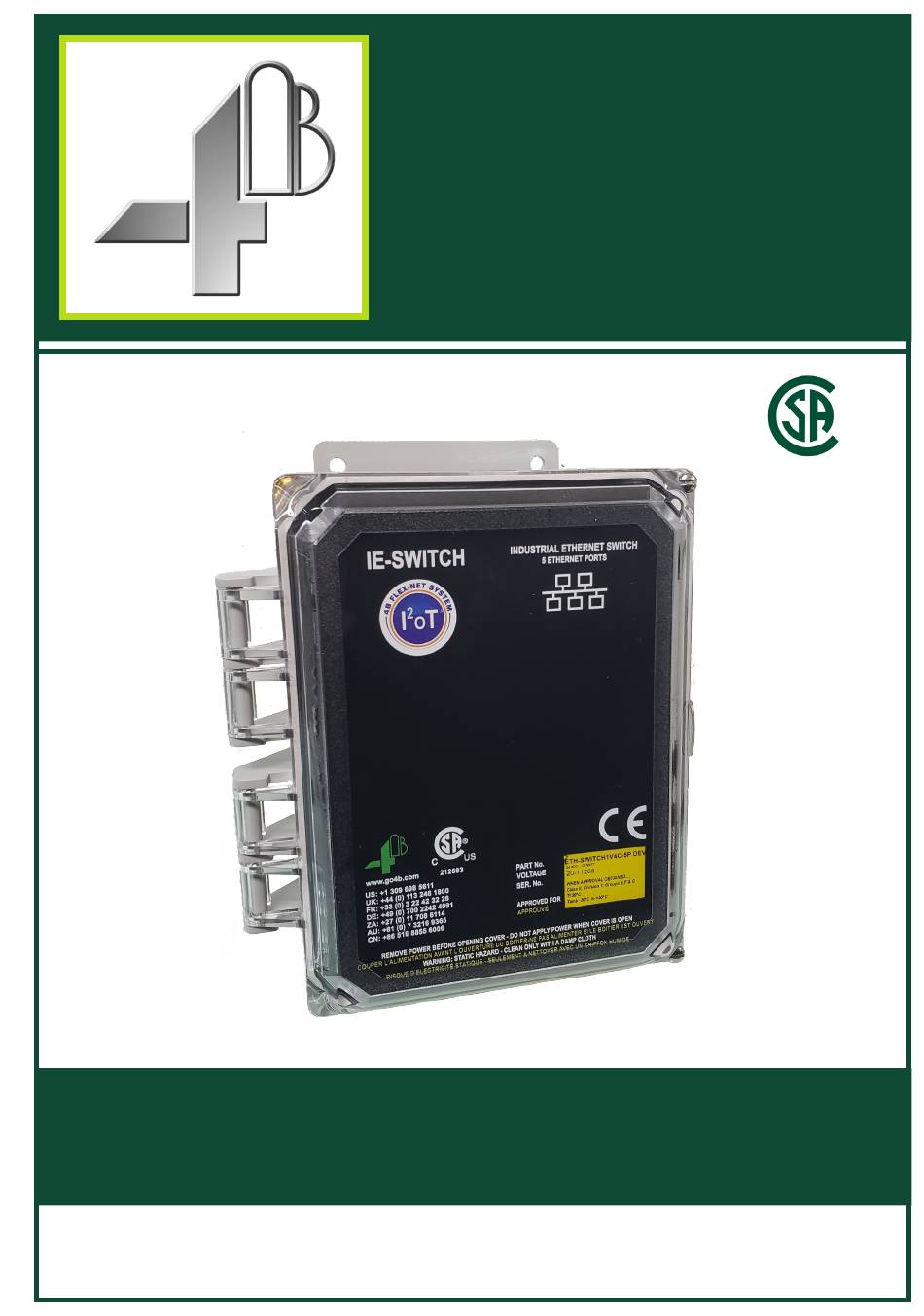

- Page 1 Industrial Ethernet Switch Industrial Ethernet Switch ® APPROVED Class II Div. 1 INSTALLATION INSTRUCTIONS OPERATION MANUAL Part No. ETH-SWITCH1V4C-5P www.go4b.com/usa...
- Page 2 DANGER DANGER Exposed buckets and moving parts will cause severe injury or death. Lockout power before removing cover or inspection door. WARNING Moving parts can crush and cut. Lockout power before removing guard or servicing. Do NOT operate with guard removed...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. CUSTOMER SAFETY RESPONSIBILITIES Page 4 - 5 2. PRODUCT OVERVIEW Page 6 3. SPECIFICATIONS Page 6 4. DIMENSIONS Page 6 5. INSTALLATION Page 7 6. ELECTRICAL CONNECTION Page 8 7. WIRING DIAGRAMS Page 10 7.1 SUPPLY VOLTAGE WIRING (24 VDC) Page 10 7.2 NETWORK BLOCK DIAGRAM Page 10... -
Page 4: Customer Safety Responsibilities
1. CUSTOMER SAFETY RESPONSIBILITIES 4B appreciates your business and is pleased you have chosen our products to meet your needs. Please read in its entirety and understand the literature accompanying the product before you place the product into service. Please read the safety precautions carefully before operating the product. - Page 5 Correct installation of the product is important for safety and performance. If you have not asked 4B to perform the installation of the unit on your behalf, it is critical for the safety of your operation and those who may perform work on your operation that you select a qualified and competent electrical installer to undertake the installation.
-
Page 6: Product Overview
2. PRODUCT OVERVIEW The Industrial Ethernet Switch is an unmanaged switch with 5x RJ45 Ethernet sockets for 10/100 Mbps Ethernet Communications. It is designed to work with 4B’s Industrial Ethernet Nodes (IE-NODEs) or any other devices requiring 10/100 Mbps Ethernet communications. -
Page 7: Installation
5. INSTALLATION ENCLOSURE INSTALLATION - 1. Use the correct cable, glands and sealing arrangement in accordance to local installation codes. 2. Where other certified components are used as part of the assembly or installation procedure, the user must take in to account any limitations which might be listed on the relevant certificates. 3. -
Page 8: Electrical Connection
Additional wire used during the installation must have a temperature rating of 158° F (70° C) or above, and be at least 24 AWG. 4B recommends using shielded cable to reduce electromagnetic interference (EMI) to maintain signal integrity. Never run low voltage cables in the same conduit as three phase motor cables. - Page 9 Output 4 Output 3 Output 2 Output 1 Input Power Image 1 Earth / Ground PAGE 9...
-
Page 10: Wiring Diagrams
7. WIRING DIAGRAMS 7.1 SUPPLY VOLTAGE WIRING (24 VDC) J104 +24V Output 4 +24 VDC J103 +24V Output 3 +24 VDC J102 Output 2 +24V +24 VDC J101 +24V Output 1 +24 VDC J100 Input Power +24V Earth / Ground Fuse +24 VDC 7.2 NETWORK BLOCK DIAGRAM... -
Page 11: Ie-Switch Operation
8. IE-SWITCH OPERATION When the ETH-SWITCH has power, the POWER LED will illuminate red. Each Port on the switch has a green LED. When a cable is plugged into the port, the LED will illuminate solid green. When there is Ethernet activity on the port, the LED will flash green. -
Page 12: Testing And Maintenance
10. TESTING AND MAINTENANCE Below is the procedure that the end user must adhere to in order to maintain the system in a safe state. 1. Inspect that all the cabling is in good state and that all the electrical connections, including the terminal blocks in the junction boxes are secure and in good order. - Page 13 END USER NOTES PAGE 13...
- Page 14 END USER NOTES PAGE 14...
-
Page 15: Product Warranty
AS 4B TO THE ORIGINAL PURCHASER AGAINST DEFECTS IN WORKMANSHIP OR MATERIALS UNDER NORMAL USE FOR ONE (1) YEAR AFTER DATE OF PURCHASE FROM 4B. ANY PRODUCT DETERMINED BY 4B AT ITS SOLE DISCRETION TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP AND RETURNED TO A 4B BRANCH... - Page 16 2163 Johannesburg Queensland Development Zone, Fax: +33 3 22 42 37 33 South Africa Australia Changzhou 213164, Jiangsu Tel: +27 11 708 6114 Tel: +61 7 3216 9365 Province, China www.go4b.com Copyright © 2020 4B Group - All Rights Reserved REV071320...
