GENERAL DESCRIPTION
The TAU-B-CP-RB-01/B / TAU-B-WCP-RB-01/B call point permits the manual activation of a fire alarm.
The TAU-B-CP-RB-01/B / TAU-B-WCP-RB-01/B is battery powered and doesn't need any system cabling installation.
The TAU-B-CP-RB-01/B / TAU-B-WCP-RB-01/B is in compliance with Fire alarm systems in accordance with DIN VDE V 0826-2.
Product view
Picture 1
DEPLOYMENT PROCEDURE
1) Select a location for the call point. See LOCATION SELECTION.
2) Unbox the call point from its packaging.
3) Power up the call point. See POWERING UP - FIRST TIME USE / POWERING UP - RECOVERY.
4) Link the call point to the system. See LINKING - WAKE-UP / LINKING - ONE-BY-ONE.
5) Install the device. See DEVICE INSTALLATION.
6) Test the call point. See TESTING.
7) Remove the " Out of order" label when the call point is in operation.
LOCATION SELECTION
Select a location for the call point that conforms to your local applicable safety standards and that is in a good position for sending / receiving
wireless signals to / from the TAU-TRM-01, TAU-CEM-01 or TAU-EXM-01 network device.
Mount the call point as far as possible from metal objects, metal doors, metal window openings, etc. as well as cable conductors, cables
(especially from computers), otherwise the operating distance may greatly drop.
The TAU-B-CP-RB-01/B / TAU-B-WCP-RB-01/B must NOT be installed near electronic devices and computer equipment that can interfere
with its wireless communication quality.
Hyfire Wireless Fire Solutions Ltd - Unit B12a, Holly Farm Business Park, Honiley, Warwickshire,
CV8 1NP - United Kingdom
TAU-B-CP-RB-01/B
TAU-B-WCP-RB-01/B

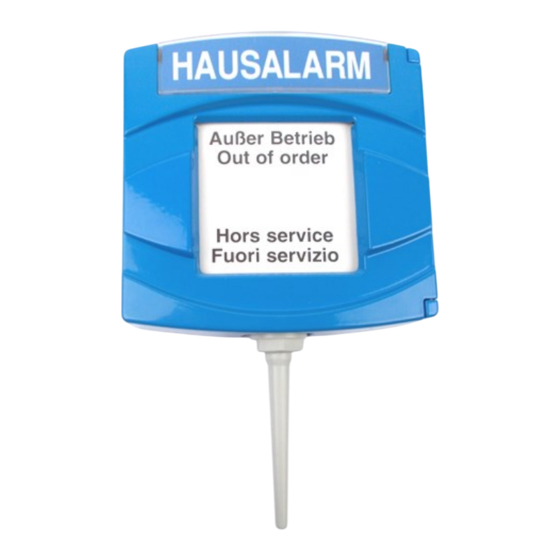

Hyfire Taurus Manual Call Point (Type B) - Blue
Hyfire Taurus Waterproof Manual Call Point (Type B) - Blue
LED indicator
Activation button
Operable front
Window - "Out of
Fixing holes
Back box
It is advisable to use the TAU-STK-01 survey kit
to locate a good wireless installation location.
Battery B
housing
Locking
Tamper
switch
Opening key
Link program
switch
Battery A
housing
Always remove the "Out of Order" label
when the call point comes in operation.
www.hyfirewireless.com
1
