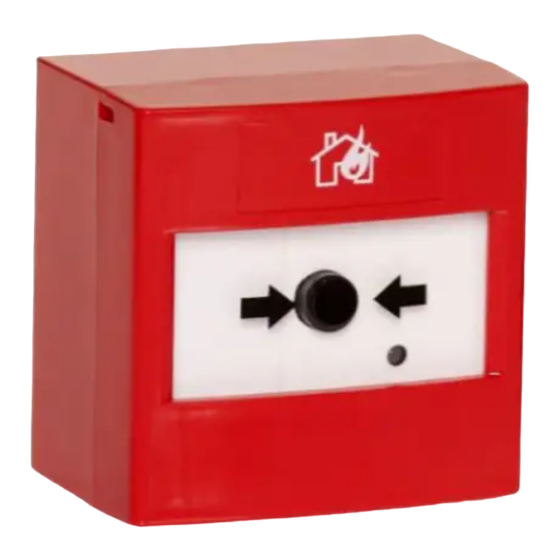

GENERAL DESCRIPTION
The TAU-CP-R-01 call point permits the manual activation of a fire alarm. After its use, the call point can be reset with its proper key,
making it immediately ready for reactivation.
TAU-CP-R-01 is battery powered and doesn't need any system cabling installation.
Device
block
Operable front
window
Reset key

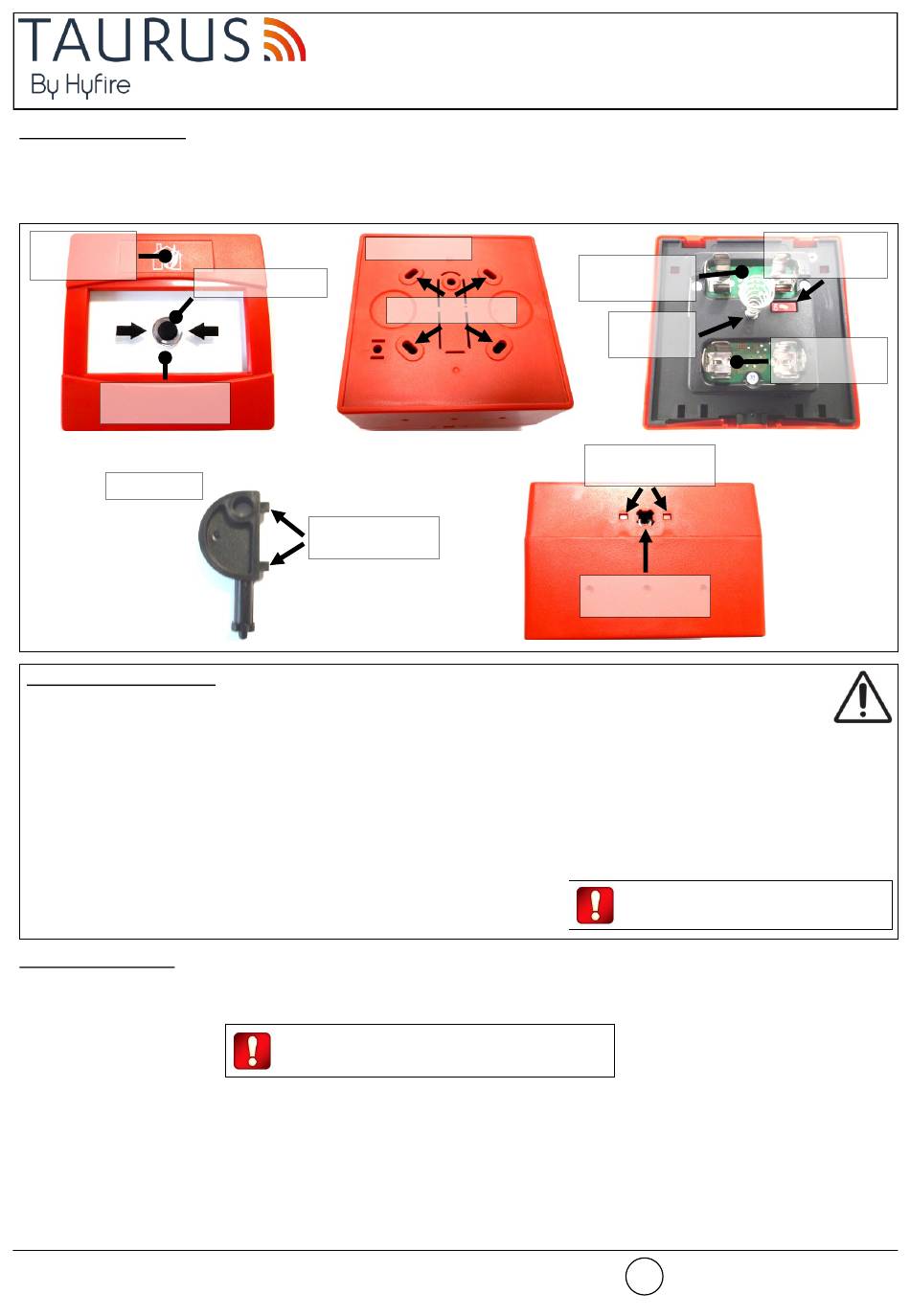

Picture 1
DEPLOYMENT PROCEDURE
1) Select a location for the call point. See LOCATION SELECTION.
2) Unbox the call point from its packaging.
3) Power up the call point. See POWERING UP - FIRST TIME USE / POWERING UP - RECOVERY.
4) Link the call point to the system. See LINKING - WAKE-UP / LINKING - ONE-BY-ONE.
5) Install the back box. See FIXING THE BACK BOX.
6) Install the device block onto the back box. See DEVICE BLOCK INSTALLATION / DEINSTALLATION.
7) Test the call point. See TESTING.
8) Remove the "NOT IN USE LABEL" when the call point is in operation.
LOCATION SELECTION
Select a location for the call point that conforms to your local applicable safety standards and that is in a good position for sending / receiving
wireless signals to / from the father TAU-TRM-01, TAU-CEM-01 or TAU-EXM-01 network device.
Mount the call point as far as possible from metal objects, metal doors, metal window openings, etc. as well as cable conductors, cables
(especially from computers), otherwise the operating distance may greatly drop.
The TAU-CP-R-01 must NOT be installed near electronic devices and computer equipment that can interfere with its wireless com-
munication quality.
Hyfire Wireless Fire Solutions Ltd - Unit B12a, Holly Farm Business Park, Honiley, Warwickshire,
CV8 1NP - United Kingdom
Hyfire Taurus Manual Call Point
LED indicator
Latch release
pins
It is advisable to use the TAU-STK-01 survey kit
to locate a good wireless installation location.
TAU-CP-R-01
Back box
Fixing holes
Battery A
housing
Tamper
switch
Device block
latch
Activation
release
Always remove the "NOT IN USE" label
when the call point comes in operation.
www.hyfirewireless.com
1
Link program
switch
Battery B
housing
Advertisement
Related Manuals for hyfire TAURUS TAU-CP-R-01
Summary of Contents for hyfire TAURUS TAU-CP-R-01
- Page 1 The TAU-CP-R-01 must NOT be installed near electronic devices and computer equipment that can interfere with its wireless com- munication quality. Hyfire Wireless Fire Solutions Ltd - Unit B12a, Holly Farm Business Park, Honiley, Warwickshire, www.hyfirewireless.com CV8 1NP - United Kingdom...
- Page 2 LED INDICATOR STATUS MESSAGES Please mind that LED signalling burns out bat- The LED indicator communicates to the final user the status of the tery power, therefore reducing batteries lifespan. TAU-CP-R-01. Device status LEDs indication Power up (DIP on “ON”) Blinks red 4 times Power up (DIP opposite “ON”) Blinks green 4 times...
- Page 3 1) Insert the reset key into the activation release hole. 2) Turn the key clockwise until you hear a snap sound. Picture 4 Picture 5 Hyfire Wireless Fire Solutions Ltd - Unit B12a, Holly Farm Business Park, Honiley, Warwickshire, www.hyfirewireless.com CV8 1NP - United Kingdom...
- Page 4 Detection systems must be checked, serviced and maintained on a regular basis to confirm correct operation. Smoke sensors may respond differently to various kinds of smoke particles, thus application advice should be Hyfire Wireless Fire Solutions sought for special risks. Sensors cannot respond correctly if barriers exist between them and the fire location and Ltd - Unit B12a, Holly Farm may be affected by special environmental conditions.
