Exsys EX-1105-2 Manual

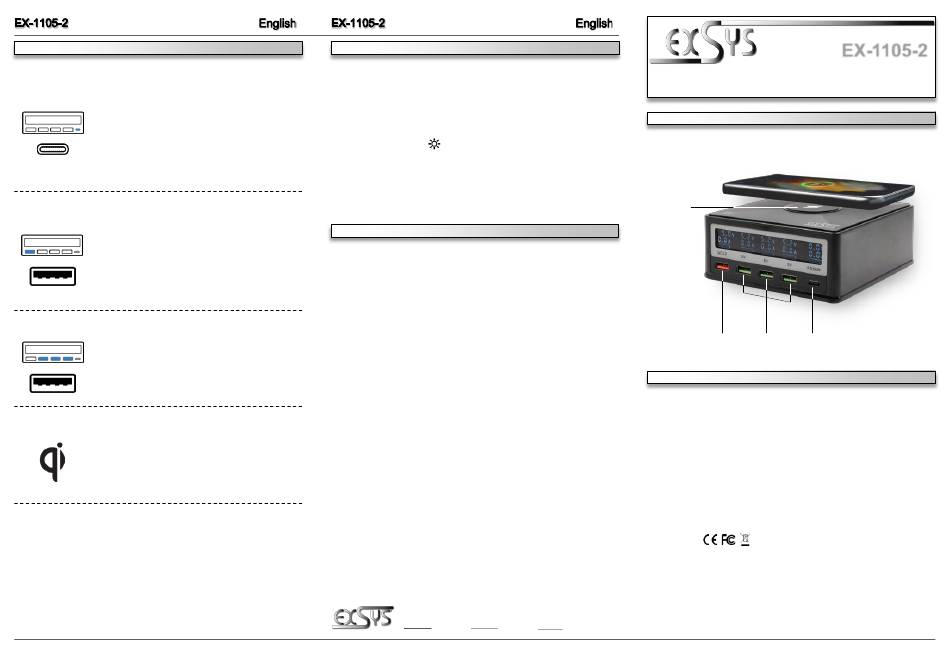

CONNECTORS & LED'S
USB-C connection:
•
Supports Power Delivery (PD)
•
Maximum power: 65 W
•
Output voltages/currents:
•
5 V, 3 A
•
9 V, 2 A
•
12 V 3 A
•
15 V, 3 A
•
20 V /3.25 A
Quick Charge USB Anschluss:
•
Qualcomm Quick Charge 3.0 compatible
•
Maximum power: 18 W
•
Output voltages/currents:
•
5 V, 3 A
•
9 V, 2 A
•
12 V 1.5 A
Standard USB Anschlüsse:
•
Maximum power: 12 W / port
•
Output voltage/current: 3x 5 V, 2.4 A
Qi-Lader:
•
Wireless charging of smartphones and other compatible
devices
•
Maximum power: 10 W
Notice Power Delivery/QC 3.0
•
Plug&Go: No manual settings necessary: Power Delivery and QC 3.0/2.0 automatically
adjusts voltage and power.
•
Note that for efficient and optimized charging, PD (Power Delivery) or QC 3.0/2.0
function must be supported by your end device.
•
Due to the large number of PD/QC-enabled devices with different firmware versions,
the function may not be fully supported.
5
HARDWARE INSTALLATION
Please read the following installation instructions carefully.
1. Connect the charging station to a power outlet.
2. Switch on the charging station using the switch on the back.
3. Connect your devices to the corresponding port using a compatible cable.
4. The charging voltage and charging current can be read on the display.
5. The touch-sensitive button can be used to switch the display on/off.
NOTICE & CLEANING
Operate the product only from an approved power outlet. The socket outlet must be located
near the product and must be easily accessible.
When not in use, disconnect the product from the mains using the on/off switch or unplug the
mains cable from the socket.
It is normal for the charger to heat up during operation. We recommend not to use it in a closed
or unventilated environment.
In the event of a fault, e.g. due to overvoltage, overheating, etc., the display flashes and the EX-
1105-2 switches off. In this case, disconnect all cables to relieve the charger. After five minutes,
the charger resets automatically and can be put back into operation.
To clean the device, please use only a dry, non-fibrous cloth and remove the dirt with light
pressure. In the area of the connections, please make sure that no fibers of the cloth are left in
the socket.
Attention! Never use a moist or wet cloth for cleaning!
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 W angen
www.exsys.de www.exsys.ch
6
Manuale
Vers. 1.0, 29.01.24
STRUTTURA
Carica batterie
Qi 10W
QC 3.0 18W USB 3x 12W
DESCRIZIONE & DATI TECNICI
L'EX-1105-2 è una stazione di ricarica multi porta con carica batterie wireless integrato per una
potenza totale di 130 W. Dispone di tre porte USB da 12 W ciascuna per caricare smartphone e
tablet, nonché una porta di ricarica rapida compatibile con Quick Charge 3.0. dispositivi. Inoltre
la porta USB-C Power Delivery (PD) carica anche notebook/MacBook con una potenza di 65
W. Infine, ma non meno importante, gli smartphone compatibili con Qi, gli auricolari TWC, ecc.
possono essere caricati senza fili sul tetto. Il clou: il display mostra la tensione di carica attuale
e la corrente di carica per ciascuna porta.
Compatibilità: USB-C PD, Qualcomm Quick Carge 3.0, Qi-Charging
Alimentazione: 100-240 VAC, Interruttore on/off sul retro
Attacchi: 1x USB Type-C PD, 1x USB Type-A QC 3.0, 3x USB-A, 1x wireless Qi)
Confezione:
EX-1105-2, Cavo alimentazione
Certificati:
Italy:
EXSYS Italia Srl
Via Belvedere, 45/B
I-22100 Como
www.exsys.it
EX-1105-2
USB-C PD 65W
