Exsys EX-11016 Manual

CONNECTORS & LED'S
USB-C connection:
•
Supports Power Delivery (PD) 2.0 & 3.0
•
Maximum power: 30 W per Port
•
Output voltages/currents:
•
5 V, 3 A
•
9 V, 3 A
•
12 V 2.5 A
•
Supports Qualcomm Quick Charge 2.0 & 3.0
•
Supports Samsung Fast Charging Protocol AFC
•
Supports Huawei Fast Charging Protocol FCP
•
Supports Battery Charging BC1.2 DCP, Apple Protocol
Notice Power Delivery/Quick Charge
•
Plug&Go: No manual settings necessary: Power Delivery and QC 3.0/2.0 automatically
adjusts voltage and power.
•
Note that for efficient and optimized charging, PD (Power Delivery) or QC 3.0/2.0
function must be supported by your end device.
•
Due to the large number of PD/QC-enabled devices with different firmware versions,
the function may not be fully supported.
LED charging indicators:
Color LED Indication
Red Charging
Green Fully charged
5
HARDWARE INSTALLATION
Please read the following installation instructions carefully.
1. If required, mount the charging station in a 19" rack using the supplied mounting brackets.
2. Connect the charging station to a power outlet.
3. Switch on the charging station using the switch on the back.
4.Connect your devices using a compatible cable.
5.The LED charging indicator turns to red. 6.
After the device is fully chrged, the indicator LED turns to green.
NOTICE & CLEANING
Operate the product only from an approved power outlet. The socket outlet must be located
near the product and must be easily accessible.
When not in use, disconnect the product from the mains using the on/off switch or unplug the
mains cable from the socket.
Temperature controlled fan:
It is normal for the charger to heat up during operation. We recommend not to use the EX-
11016 in a closed or unventilated environment.
If the temperature inside the charging station rises above 35°C, the built-in fan turns on automa-
tically. This leads to noise development with a sound pressure level of up to 50 dB(A) which can
be bothersome in quiet environments.
Never place anything on the fan vent.
Never cover the ventilation openings of the device.
Zur Reinigung des Gerätes verwenden Sie bitte ausschließlich ein trockenes nicht faserndes
Tuch und entfernen Sie die Verschmutzung mit leichtem Druck. Im Bereich der Anschlüsse bitte
darauf achten, dass keine Fasern des Tuchs in der Buchse hinterlassen werden.
Verwenden Sie bitte zur Reinigung in keinem Fall ein feuchtes oder nasses Tuch!
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 W angen
www.exsys.de www.exsys.ch
6
Manuale
Vers. 1.0, 07.03.23

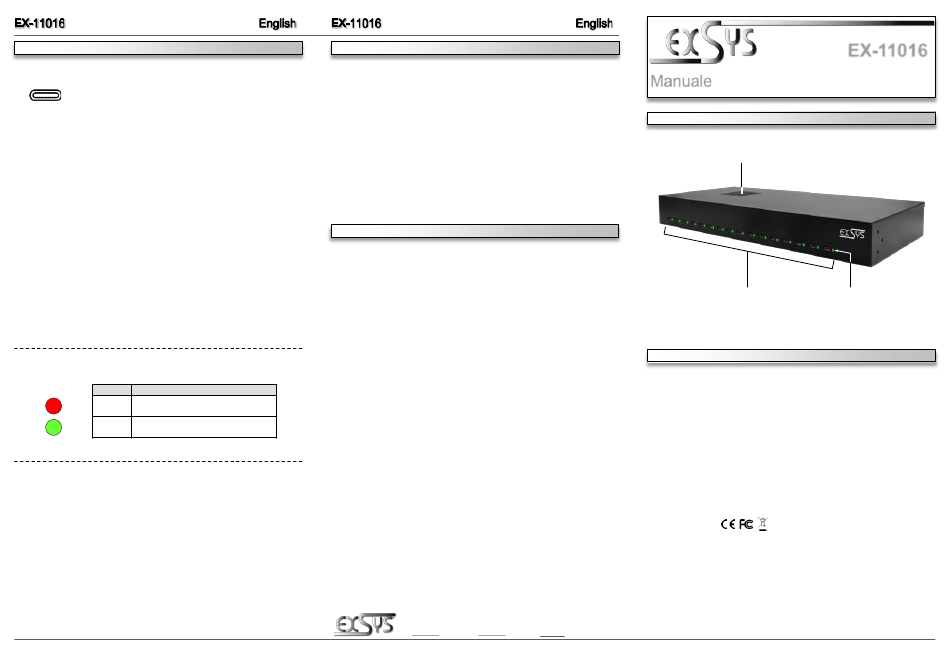

STRUTTURA
DESCRIZIONE & DATI TECNICI
L'EX-11016 è una stazione di ricarica industriale con una potenza totale di 480 W. Tutte le 16
porte USB Type-C supportano Power Delivery (PD) con una potenza di ricarica massima di 30
W ciascuna. Ciò significa che 16 smartphone, tablet e notebook. I MacBook possono essere
caricati contemporaneamente.
automaticamente quando è necessario ed impedisce così che l'alimentatore integrato generi un
calore eccessivo. Con le staffe di montaggio incluse, l'EX-11016 può essere installato in un
rack da 19". È ideale come stazione di ricarica per scuole/università, hotel, ristoranti, club e
molto altro.
Compatibilità:
Alimentazione:
Attacchi:
Contenuto Confezione:
Certificati:
Italy:
EXSYS Italia Srl
Via Belvedere, 45/B
22100 Como (CO)
www.exsys.it
EX-11016
ARIA
USB Type-C Visualizzazione dello
PD 16x 30W stato di carica a LED
La ventola a temperatura controllata si
USB-C PD, Qualcomm Quick Carge, Fast Charge
220-240 VAC, interruttore on/off sul retro
16x USB Type-C
EX-11016, 5 Adattatori x USB Type-C a USB Type-A (EX-
47990), Cavo Alimentazione, Kit Rack 19", Manuale
1
accende
