Exsys EX-1106 Manual

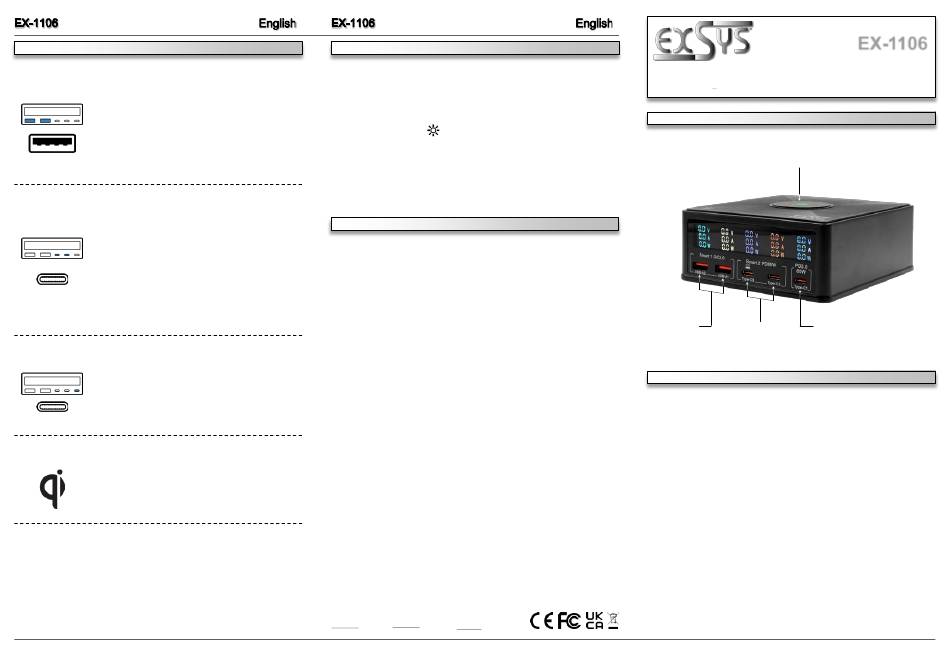

CONNECTORS & LED'S
Smart 1 QC3.0 - USB-A connections:
1 port used:
•
Qualcomm Quick Charge 3.0 compatible
•
Maximum power: 18W
•
Output voltages/currents:
•
5V/3A, 9V/2A, 12V/1.5A
2 ports used:
•
Maximum power per port: 12W (5V/2.4A)
Smart 2 PD 3.0 65W - USB-C connections:
Supports Power Delivery (PD) 3.0 / QC4+
1 port used:
•
Maximum power: 65W
•
Output voltages/currents:
•
5V/3A, 9V/3A, 12V/3A. 15V/3A, 20V/3.25A
PPS: 3.3 - 11V/5A, 3.3 - 21V/3A
2 ports used:
•
Left port maximum power: 45W
•
Right port maximum power: 20W
PD 3.0 65W - USB-C connection:
•
Supports Power Delivery (PD) 3.0 / QC4+
•
Maximum power: 65W
•
Output voltages/currents:
•
5V/3A, 9V/3A, 12V/3A. 15V/3A, 20V/3.25A
PPS: 3.3 - 11V/5A, 3.3 - 21V/3A
Qi charger:
•
Wireless charging of smartphones and other compatible
devices
•
Maximum power: 15W
Notice Power Delivery (PD) / Quick Charge (QC)
•
Plug&Go: No manual settings necessary: Power Delivery and Quick Charge
automatically adjusts voltage and power.
•
Note that for efficient and optimized charging, PD (Power Delivery) or QC (Quick
Charge) function must be supported by your end device.
•
Due to the large number of PD/QC-enabled devices with different firmware versions,
the function may not be fully supported.
5
HARDWARE INSTALLATION
Please read the following installation instructions carefully.
1. Connect the charging station to a power outlet.
2. Connect your devices to the corresponding port using a compatible cable.
3. The charging voltage and charging current can be read on the display.
4. The touch-sensitive button can be used to switch the display on/off.
NOTICE & CLEANING
Operate the product only from an approved power outlet. The socket outlet must be located
near the product and must be easily accessible.
When not in use, disconnect the product from the mains using the on/off switch or unplug the
mains cable from the socket.
It is normal for the charger to heat up during operation. We recommend not to use it in a closed
or unventilated environment.
In the event of a fault, e.g. due to overvoltage, overheating, etc., the display flashes and the EX-
1106 switches off. In this case, disconnect all cables to relieve the charger. After five minutes,
the charger resets automatically and can be put back into operation.
To clean the device, please use only a dry, non-fibrous cloth and remove the dirt with light
pressure. In the area of the connections, please make sure that no fibers of the cloth are left in
the socket.
Attention! Never use a moist or wet cloth for cleaning!
Germany: Switzerland: Italy:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH EXSYS Italia Srl
Industriestrasse 8 Dübendorfstrasse 17 Via Belvedere, 45/B
61449 Steinbach 8602 W angen
I-22100 Como
www.exsys.de www.exsys.ch
www.exsys.it
6
Manuale
Vers. 1.0 / 06.06.24
Vers. 1.0, 21.12.22
STRUTTURA
Carica batterie
Qi- 15W
USB-A QC 3.0 USB-C PD 3.0 65W USB-C PD 3.0 65W
DESCRIZIONE & DATI TECNICI
L'EX-1106 è una stazione di ricarica multiporta con caricabatterie wireless integrato e una
potenza totale di 160 W. Dispone di tre porte USB-C Power Delivery (PD) con una potenza
massima di 65 W ciascuna per caricare notebook/MacBook e due porte Fast porte di ricarica
per dispositivi compatibili con Quick Charge 3.0. Inoltre sul tetto è possibile ricaricare senza fili
gli smartphone compatibili con Qi, gli auricolari TWC, ecc. Il clou: il display mostra la tensione di
carica, la corrente di carica e la potenza di carica per ciascuna porta.
Compatibilità USB-C PD 3.0, PPS, Qualcomm Quick Charge 3.0/4.0+, AFC, FCP,
SCP, PE+, Qi-Charging
100-240 VAC
Alimentazione:
Attacchi: 3x USB Type-C PD, 2x USB Type-A QC 3.0, 1x wireless (Qi)
Confezione: EX-1106, Cavo di alimentazione
1
EX-1106
