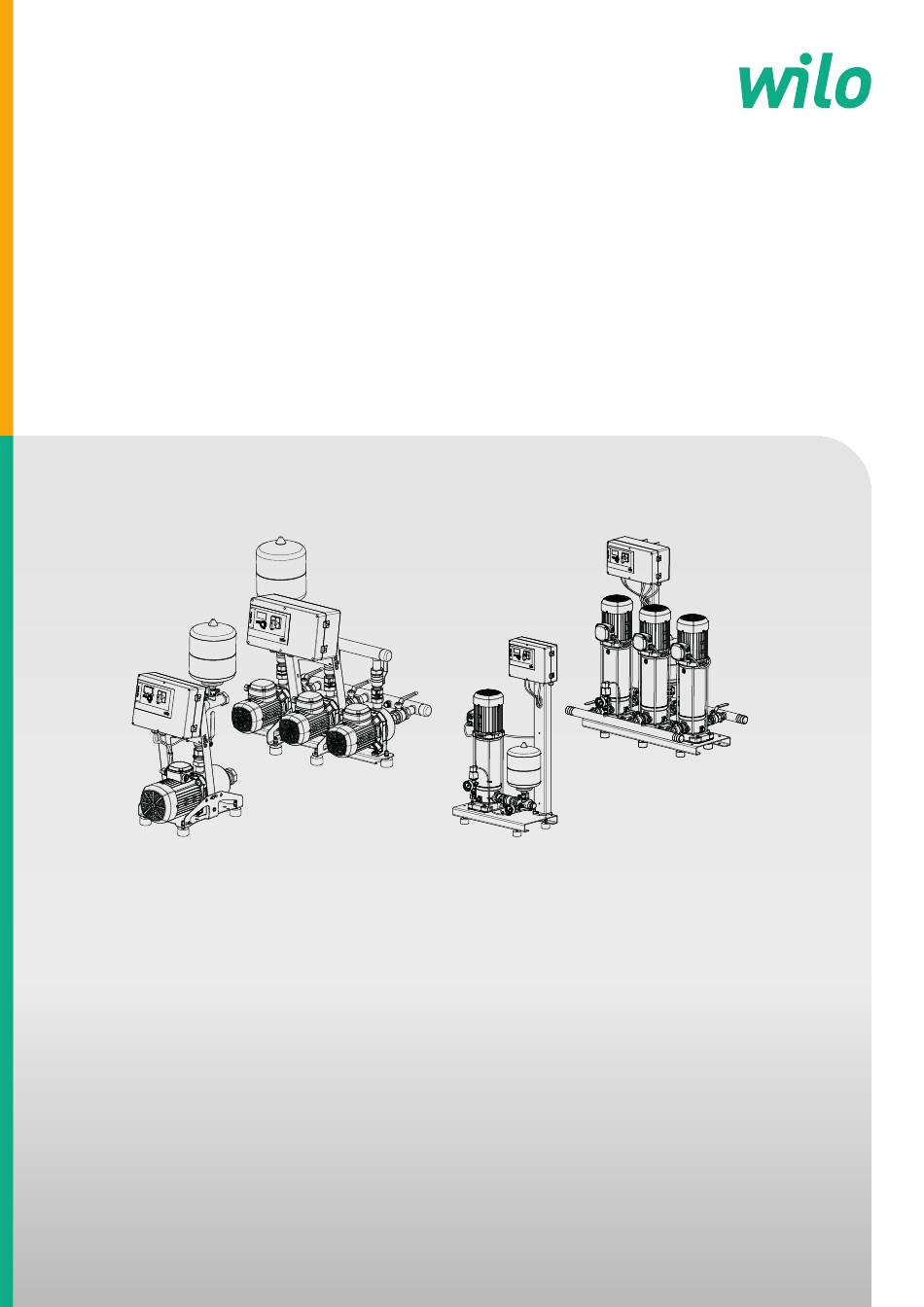

- Page 1 Pioneering for You Wilo Isar-MODH1 Wilo Isar-MODV1 en Installation and operating instructions · 2552079 • Ed.02/2021-04...
- Page 3 Fig. 1 Fig. 1a 11-1...
- Page 4 Fig. 2 Fig. 1b 11-1 11-1...
- Page 5 Fig. 1 Fig. 2a 11-1...
- Page 6 Fig. 2 Fig. 2b 11-1...
- Page 7 Fig. 1 Fig. 3a PIN1 PIN1 PIN3 PIN3 11-1...
- Page 8 Fig. 2 Fig. 3b PIN1 PIN1 PIN3 PIN3 11-1...
- Page 9 Fig. 1 Fig. 3c PIN1 PIN1 PIN3 PIN3 11-1...
- Page 10 Fig. 2 Fig. 3d PIN1 PIN1 PIN3 PIN3 11-1...
- Page 11 Fig. 1 Fig. 4 OPEN CLOSED Nitrogen...
- Page 12 Fig. 2 Fig. 4 Fig. 5...
- Page 13 Fig. 1 Fig. 6a 14-2 14-1 14-4 14-5 14-3 14-6 Fig. 2 Fig. 6b 14-2 14-1 14-4 14-5 14-3 14-6...
- Page 14 Fig. 2 Fig. 4 Fig.6c 14-2 14-1 14-4 14-5 14-3 14-6 14-9 14-8 14-7...
- Page 15 Fig. 1 Fig. 6d 14-1 PIN4 PIN2 PIN2 PIN1 14-1 PS3-4xx P>1,3 bar P>1,0 bar PS3-Nxx P>1,3 bar P>1,0 bar...
- Page 16 Fig. 3 Fig. 7a Fig. 4 Fig. 7b...
- Page 17 Fig. 1 Fig. 8a Fig. 2 Fig. 8b...
- Page 18 Fig. 2 Fig. 9a...
- Page 19 Fig. 1 Fig. 9b...
- Page 20 Fig. 2 Fig. 9c...
- Page 21 Fig. 1 Fig. 10a S - 1 Fig. 2 Fig. 10b S - 2 S - 3...
- Page 22 Fig. 3 Fig. 10c S - 4 S - 5 Fig. 4 Fig. 10d S - 6...
- Page 23 Fig. 1 Fig. 11a...
- Page 24 Fig. 3 Fig. 11b Fig. 4 Fig. 12...
- Page 25 Fig. 1 Fig. 13a...
- Page 26 Fig. 2 Fig. 13b ca. 50 Nm...
-
Page 27: Table Of Contents
Checking the pressure-boosting system .............................. 51 10 Faults, causes and remedies .............................. 52 10.1 Notes .......................................... 52 10.2 Faults, causes and remedies.................................. 52 11 Spare parts.................................... 55 12 Disposal.................................... 55 12.1 Oils and lubricants...................................... 55 Installation and operating instructions Wilo Isar-MODH1, Wilo Isar-MODV1... - Page 28 12.2 Water-glycol mixture ..................................... 55 12.3 Protective clothing ...................................... 55 12.4 Information on the collection of used electrical and electronic products.................... 55 12.5 Batteries/rechargeable batteries .................................. 56 13 Appendix.................................... 57 13.1 Captions ........................................... 57 WILO SE 2021-04...
-
Page 29: General Information
Distribute any content. ƒ Use any content for competition purposes without authorisation. Wilo shall reserve the right to change the listed data without notice and shall not be li- able for technical inaccuracies and/or omissions. Subject to change Wilo shall reserve the rights to make technical changes to the product and individual components. -
Page 30: Personnel Qualifications
Be instructed about locally applicable regulations governing accident prevention. ƒ Have read and understood the installation and operating instructions. The personnel must have the following qualifications: ƒ Electrical work must be carried out by an authorised electrician (in accordance with EN 50110-1). WILO SE 2021-04... -
Page 31: Electrical Work
ƒ Locally applicable laws and regulations on work safety and accident prevention must be complied with. ƒ Disconnect device from the mains and secure it against being switched on again without authorisation. Installation and operating instructions Wilo Isar-MODH1, Wilo Isar-MODV1... -
Page 32: During Operation
Use is not permitted for persons with limited physical, sensory or mental capacities! Application/use Intended use Function and application The Wilo pressure-boosting systems from the ISAR MODH1 and ISAR MODV1 series are designed for water supply systems for pressure boosting and pressure maintenance. The system is used as: ƒ... -
Page 33: Improper Use
MODH With horizontal pumps Fixed-speed version Number of pumps CH1-L Pump series Rated flow rate Q [m3/h] per pump (2- pole – 50 Hz version) Number of pump stages (2-pole – 50 Hz version) Installation and operating instructions Wilo Isar-MODH1, Wilo Isar-MODV1... -
Page 34: Technical Data
Product description Example Wilo- ISAR MODH1-1CH1-L-202/EC Switchgear (here Easy Control) Example Wilo ISAR MODH1-3CH1-L-605/EC Wilo Brand name ISAR Product family: pressure-boosting sys- tems MODH With horizontal pumps Fixed-speed version Number of pumps CH1-L Pump series Rated flow rate Q [m3/h] per pump (2- pole –... - Page 35 MODH1 – on the pressure side 10 bar (see rating plate) ating pressure MODV1 – on the pressure side 16 bar (see rating plate) Max. permissible inlet Indirect connection (but max. 6 bar) pressure Additional data Diaphragm pressure 8 l vessel Installation and operating instructions Wilo Isar-MODH1, Wilo Isar-MODV1...
-
Page 36: Scope Of Delivery
ƒ Installation and operating instructions for the signal transmitter, if applicable ƒ Spare parts list, if applicable Accessories Accessories must be ordered separately as required. The accessories from the Wilo range include the following: ƒ Open break tank (Fig. 11a) ƒ... - Page 37 In vertical single-pump systems, this assembly is installed at the pump’s drain connec- tion (Fig. 6c). Pressure transmitter and pressure gauge (Fig. 3a to 3d) Pressure transmitter kit (on the pressure side, Fig. 3a to 3d). ƒ Pressure gauge (It. 11-1) ƒ Pressure transmitter (It. 12a) Installation and operating instructions Wilo Isar-MODH1, Wilo Isar-MODV1...
-
Page 38: Function
4.6.2 Description Standard and special versions In the standard version, the Wilo pressure-boosting systems from the ISAR MODH1 series consist of non-self-priming multistage horizontal high-pressure multistage centrifugal pumps. The pressure-boosting systems from the ISAR MODV1 series consist of non-self-priming multistage vertical high-pressure centrifugal pumps without an in- tegrated frequency converter. - Page 39 When using a Wilo break tank (Fig. 11a), the scope of delivery includes a float switch (Fig. 11b – It. 52). For existing on-site tanks, you will find various signal transmitters in the Wilo range that can be retrofitted (e.g. float switch WA65 or low-water electrodes with a level re- lay).
-
Page 40: Transportation And Storage
The pressure-boosting system is fixed onto a pallet (Fig. 13a, 13b – It. 55, 56), de- livered on transport boards or in a crate and is foil-wrapped (Fig. 13a, 13b – It. 59) to protect it against moisture and dust. Transport and storage instructions applied to the packaging must be observed. WILO SE 2021-04... -
Page 41: Transport
Before installing the pressure-boosting system, check that all the vibration ab- sorbers are fitted and locked using the threaded nut. (see also Fig. 9a to 9c, It. A) Installation site Requirements for the installation location: Installation and operating instructions Wilo Isar-MODH1, Wilo Isar-MODV1... -
Page 42: Installation
The system should be freely accessible from at least two sides. ƒ Wilo advises against installation and operation near living rooms and bedrooms. ƒ To avoid the transmission of structure-borne noise and to ensure a stress-free con- nection to upstream and downstream pipes, compensators (Fig. 9a –... - Page 43 DIN 1988) and was checked at the factory to make sure it functions correctly. When used in drinking water applications, the complete drinking water installation has to be handed over to the operator in a perfect state of hygiene. Installation and operating instructions Wilo Isar-MODH1, Wilo Isar-MODV1...
- Page 44 Install the float switch in the tank so that the “low water” switching signal is trans- mitted if the water level drops to approximately 100 mm above the draw-off con- nection. (If break tanks from the Wilo range are used, a float switch is installed (Fig. 11a and 11b).
- Page 45 1.1 times the admissible level. NOTICE Refer to the data sheets and characteristic curves of the pressure-boosting system for the design of the data. Securely drain off the outflowing water flow. Installation and operating instructions Wilo Isar-MODH1, Wilo Isar-MODV1...
-
Page 46: Danger Of Injury
3. Take suitable measures to prevent heat transmission through the connection pipes. NOTICE PE tanks from the Wilo range are only designed to accommodate clean water. The maximum temperature of the water must not exceed 50 °C (including tank docu- mentation!). - Page 47 Flexible connection pipes are subject to wear in operation. Regular checks for leak- ages or other defects are necessary (see recommendations of DIN 1988). The flexible connection pipes in the Wilo range consist of a high-quality stainless steel corrugated hose with stainless steel braiding. In the case of pipes with threaded con- nections, use for stress-free installation of the pressure-boosting system and in the event of slight pipe displacement (Fig.
-
Page 48: Electrical Connection
Danger of (serious) injuries during work. Wear safety shoes! NOTICE Automatic activation after power cut Depending on the process, the product is switched on and off using separate con- trols. The product may automatically switch on following power cuts. WILO SE 2021-04... -
Page 49: Safety
NOTICE We recommend that the initial commissioning of the system is performed by the Wilo customer service department. Contact your dealer, your nearest Wilo repres- entative or the Wilo customer service department directly to arrange this. ƒ General preparations and control... -
Page 50: Protection Against Low Water Level (Wms)
Observe the respective manufacturer’s documentation for the component. 7.3.2 For operation with break tank (in- With Wilo break tanks, the level-dependent low-water monitoring is performed via a let mode) float switch. This must be electrically connected to the switchgear before commission- ing. -
Page 51: Commissioning The System
(see DIN 1988). It is advisable to enter into a maintenance contract with a specialist company or with the Wilo customer service department. The following checks must be carried out on a regular basis: ƒ... -
Page 52: Faults, Causes And Remedies
Faults, causes and remedies (Fig. 5) – Wilo customer service). If the pressure is too high, release nitrogen from the valve. In the case of systems with a frequency converter, the inlet and outlet filters of the fan must be cleaned if they are very dirty. - Page 53 Check the pump data and default values and correct if necessary. Incorrect direction of rotation of the mo- Check the direction of rotation and correct it by tors changing over phases if necessary. Installation and operating instructions Wilo Isar-MODH1, Wilo Isar-MODV1...
- Page 54 Replace the non-return valve. Gate valve in the system closed or not suf- Check and open the shut-off valve completely if ne- ficiently open cessary. Low water level indicated Check the inlet pressure and the level in the break tank. WILO SE 2021-04...
-
Page 55: Spare Parts
To ensure proper handling, recycling and disposal of the used products in question, please note the following points: ƒ Hand over these products at designated, certified collection points only. ƒ Observe the locally applicable regulations! Installation and operating instructions Wilo Isar-MODH1, Wilo Isar-MODV1... -
Page 56: Batteries/Rechargeable Batteries
Disposal Please consult your local municipality, the nearest waste disposal site, or the dealer who sold the product to you for information on proper disposal. See www.wilo‑recycling.com for more information about recycling. 12.5 Batteries/rechargeable batteries Batteries and rechargeable batteries must not be disposed of with domestic waste and they must be removed before product disposal. -
Page 57: Appendix
Stop valve Fig. 4 Throughflow fitting operation/pressure testing of the diaphragm pressure vessel Diaphragm pressure vessel Throughflow fitting Open/close Drain Check the supply pressure (nitrogen! – N ) in acc. with Fig. 5 Installation and operating instructions Wilo Isar-MODH1, Wilo Isar-MODV1... - Page 58 Diaphragm pressure vessel on the end pressure side Consumer connections downstream of the pressure-boosting system Infeed connection for system flushing (nominal diameter = pump connec- tion) Draining connection for system flushing (nominal diameter = pump connec- tion) WILO SE 2021-04...
- Page 59 Ensure adequate drainage. Protect siphon or valve against ingress of insects. Free discharge in accordance with EN 1717 Drain Extraction (connection for pressure-boosting system) Terminal box (low-water signal transmitter and, if available, overflow signal transmitter) Installation and operating instructions Wilo Isar-MODH1, Wilo Isar-MODV1...
- Page 60 Fig. 13a Transport example ISAR MODH1 Fig. 13b Transport example ISAR MODV1 Transport pallet (example) Wooden supports Fastening screws Box with accessories (example) Plastic cover/dust protection Approx. position centre of gravity of the system WILO SE 2021-04...
- Page 64 Local contact at www.wilo.com/contact WILO SE Wilopark 1 44263 Dortmund Germany T +49 (0)231 4102-0 T +49 (0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
