SUNSEEKER LM719 Operator's Manual

60v lithium-ion cordless commercial series lawn mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

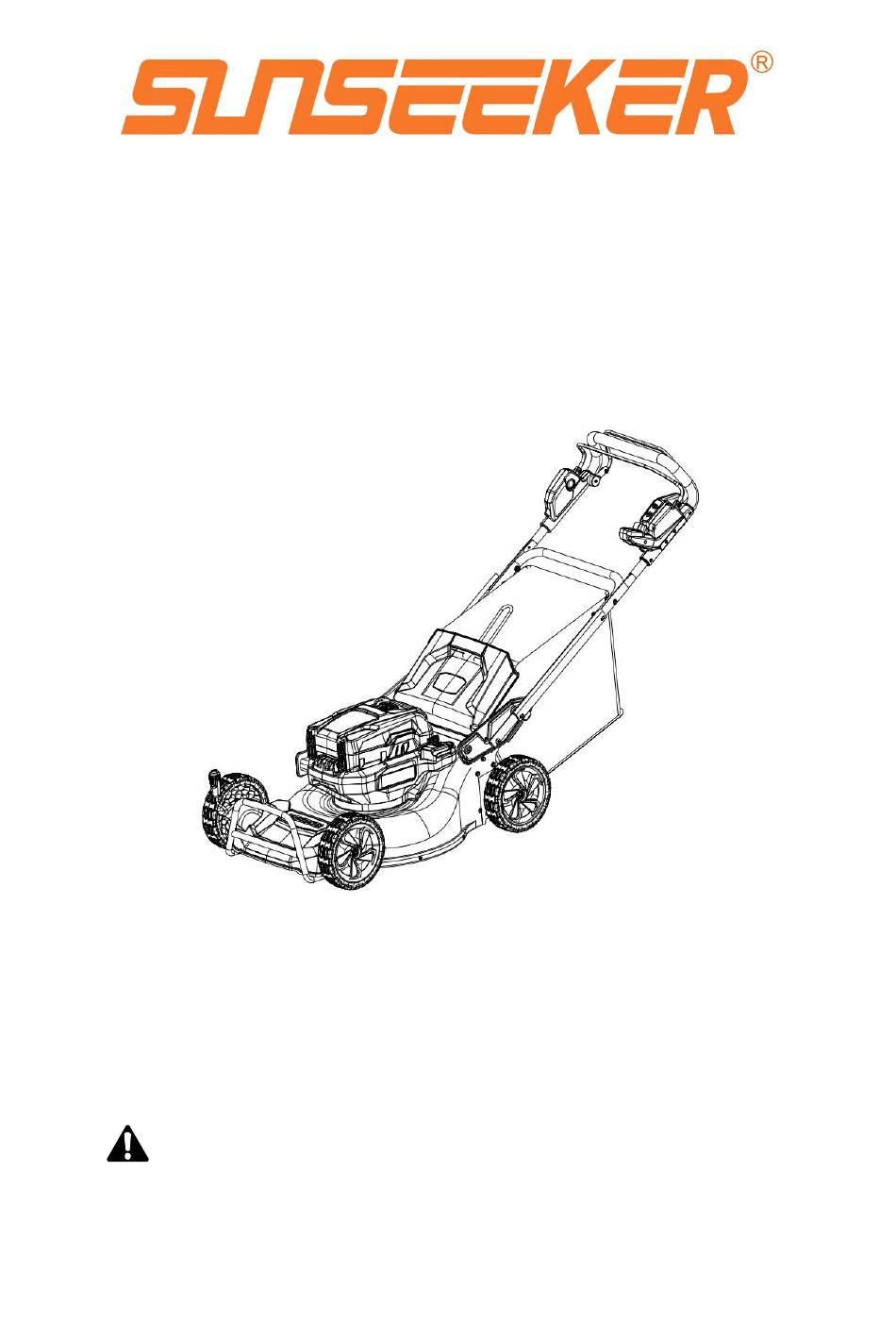

OPERATOR'S MANUAL
60V Lithium-Ion Cordless Commercial Series
Lawn Mower
Model number: LM719
Battery and Charger Sold Separately
WARNING: To reduce the risk of injury, the user must
read and understand the Operator's Manual before using this
product. Save these instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM719 and is the answer not in the manual?

Questions and answers

Related Manuals for SUNSEEKER LM719

Summary of Contents for SUNSEEKER LM719

  • Page 1 OPERATOR’S MANUAL 60V Lithium-Ion Cordless Commercial Series Lawn Mower Model number: LM719 Battery and Charger Sold Separately WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference.

  • Page 2: Safety Symbols

    READ ALL INSTRUCTIONS! READ & UNDERSTAND OPERATOR'S MANUAL WARNING: Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: Your risk from these exposures varies, depending on how often you do this type of work.

  • Page 3: Safety Instructions

    WARNING! The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full-face shield when needed.
  • Page 4 Safe distance Keep a distance from bystanders DANGE— Thrown Remove objects that can be thrown by the blade in Debris any direction. Wear safety glasses. Keep Hands Keep hands and feet away from blade and cutting Feet Away area. DANGER— Cutting/dismember Shut off the motor before leaving the machine.

  • Page 5: Work Area Safety

    Millimeter Length or size Inch Length or size Kilogram Weight Pound Weight GENERAL BATTERY-OPERATED POWER TOOL SAFETY WARNINGS WARNING! Read safety warnings, instructions, illustrations specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 6: Electrical Safety

    sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury. ELECTRICAL SAFETY Do not operate the lawnmower in rain or wet conditions. Water entering a lawnmower may increase the risk of electric shock. PERSONAL SAFETY Use personal protective equipment. Always wear eye protection. Protective equipment will reduce personal injuries.
  • Page 7 complacent and ignore lawnmower safety principles. A careless action can cause severe injury within a fraction of a second. To avoid operator blade contact or a thrown object injury, stay in the operator zone behind the lawnmower handles. Blade contact or thrown objects may result in serious personal injury.
  • Page 8 discharge at anyone. Thrown objects can cause personal injury. Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation. When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction.
  • Page 9 Maintain the lawnmower and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the lawnmower ’ s operation. If damaged, have the lawnmower repaired before use. Many accidents are caused by poorly maintained lawnmowers. Store idle lawnmowers out of the reach of children and do not allow persons unfamiliar with the lawnmower or these instructions to operate the lawnmower.
  • Page 10 a fire. SERVICE Have your lawnmower serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the lawnmower is maintained. Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety.

  • Page 11: Important Safety Instructions

    operate the lawnmower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade. While operating the lawnmower, always wear long trousers. Exposed skin increases the  likelihood of injury from thrown objects. Do not operate the lawnmower in wet grass.

  • Page 12: Specifications

    If you lend this tool to someone else, also lend these instructions to them to prevent misuse of the product and possible injury. SAVE THESE INSTRUCTIONS! SPECIFICATIONS LM719 Model number Motor power 3000W (max)

  • Page 13: Packing List

    PACKING LIST PART NAME QUANTITY Lawn mower Grass bag Mulching insert Discharging chute Operator’s Manual BATTERY TOOL USE AND CARE Recharge only with the charger specified by the manufacturer. A charger that is  suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Page 14 DESCRIPTION KNOW YOUR LAWN MOWER (Fig 1) The safe use of this product requires an understanding of the information on the tool and in this operator’s manual, as well as knowledge of the project you are attempting. Before using this product, familiarize yourself with all operating features and safety rules. Fig 1 1.
  • Page 15 5. Rear Cutting-height adjustment lever 14. Grass bag 6. rear discharge cover 15. Lock key 7. Lower handle 16. Deck 8. Starting control box 17. Discharge attachment 9. Operating bail (blade engagement) 18. Mulching plug Lock key The Lock Key must be installed before the motor can be started. Cutting-height adjustment lever Adjust cutting height Rear discharge cover...
  • Page 16 making adjustments, cleaning, or when not in use. WARNING: All adjustments should be made cold. Always wear gloves when working on a saw chain. Do not operate with a loose chain. Otherwise personal injury might result. WARNING: Always be sure that the lock key and battery are removed before carrying out any work on the mower.
  • Page 17 2. Push the lower handle from position a to position b ; 3. Align the holes in the upper handle with the holes in the lower handle, and then tighten 2 bolts, as shown in the figure below. 4. Align the holes in the upper handle with the holes in the lower handle and cord protection...
  • Page 18 cover, and then tighten 2 bolts. The correct direction of the protection cover is shown in the figure below. WARNING: Do not press the cable when mounting the handle. 5. Align the holes in the lower handle with holes in the protection cover and holes in the mower body, and then tighten 2 bolts, as figure shown below.

  • Page 19: Installing/Removing The Mulching Plug

    Two handle height levels can be chosen by tightening to different holes on the mower body. INSTALLING/REMOVING THE MULCHING PLUG DANGER: The machine can throw grass clippings and other objects through an opening in the machine housing. Objects thrown with enough force could cause serious personal injury or death to you or to bystanders.

  • Page 20: Assembling The Grass Bag

    WARNING: The mulching insert must be removed when installing the grass bag or rear discharge chute. The mulching insert must be re-installed when the grass bag or rear discharge chute is removed. ASSEMBLING THE GRASS BAG Check the grass bag before assembling, to make sure that there is no damage. To install the grass bag, follow the steps below.
  • Page 21 ATTACHING THE REAR DISCHARGE CHUTE 1. Lift up the rear discharge cover 2. Install the rear discharge chute in direction as shown in the figure below. 3. The rear discharge chute is successfully installed as shown in below figure.

  • Page 22: Adjusting The Cutting Height

    ADJUSTING THE CUTTING HEIGHT Keep your feet away from the deck when adjusting the cutting height.The mower can be set to 8 cutting heights between 1 in (25 mm) and 4.5 in ( 114mm). A marking indicates the selected cutting height.This mower allows you to adjust the cutting height of the front and the rear of the mower individually.

  • Page 23: Operation

    OPERATION WARNING: Always wear eye protection that is marked to comply with ANSI Z87.1. or EN 166. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries. WARNING: Do not use any attachments or accessories not recommended by the manufacturer of this product.
  • Page 24 2. Press the connection area shown in the figure below until hear a clear click. CAUTION: Make sure that the portable power pack is securely locked to the battery support levers and the lock button is securely locked. CAUTION: Do not forcefully press. 3.
  • Page 25 4. Open the lock key cover, then insert the lock key in the place shown in the figure as far as it will go, and then close the lock key cover. To remove the portable power pack, perform the installation procedure in reverse. SELECTING BLADE SPEED MODE Control panel 1.

  • Page 26: Starting/Stopping The Mower

    1. Power on/off button, press the power on/off button, the display will be turned on, press the button again, the display will be turned off. 2. Blade speed mode button, default mode is ECO (display will show ECO), press the blade speed mode button can change the blade speed mode between high speed (ECO on the display will disappear and show no word) and ECO (display will show ECO) ECO mode provides the lower noise level and longer runtime from your...
  • Page 27 off and on. CAUTION: Do not attempt to override the operation of the power button and bail switch. 1. Press the power on/off button 2. Press the cutting blade start button and hold, then pull the operating bail toward you to start the machine.
  • Page 28 Selecting self-propel speed The self-propel speed can be adjusted with the speed lever. To decrease the speed, pull the lever toward you, and to increase the speed, push the lever forward. The display will indicate speed levels between 1P-7P accordingly. MOWING WARNING: Before mowing, clear away sticks and stones from mowing area.
  • Page 29 Periodically check the grass bag for mowed grass. Empty the grass before it becomes full. Before every periodical check, be sure to stop the mower then remove the lock key and the battery pack. NOTICE: Using the mower with the grass bag full prevents smooth blade rotation and places an extra load on the motor, which may cause breakdown.

  • Page 30: Maintenance

    cut grass may also block up inside of the mower body. Emptying the grass bag WARNING: To reduce a risk of accident, regularly check the grass bag for any damage or weakened strength. Replace the grass bag if necessary. 1. Release the operating bail and self-propel engagement bail 2.
  • Page 31 NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. 1. Remove the lock key and battery pack. 2. Put the mower on its side so that the mowing height adjusting lever comes to the upper side.

  • Page 32: Replacing The Cutting Blade

    ALWAYS remove the battery when servicing or transporting the mower. Use only a SUNSEEKER replacement blade. • REMOVE BATTERY. • While wearing leather padded gloves, wedge a block of wood (figure below -- b) between the blade and the mower deck in order to prevent the blade ( figure below -- 3) from turning when the bolt (figure below -- 1) is being removed.
  • Page 33 STORING THE MOWER The following steps should be taken in order to prepare the lawn mower for storage. 1. Remove the battery pack from the mower and store it at room temperature in a dry location. 2. Clean the mower as described earlier in the "MAINTENANCE" section. 3.
  • Page 34 when it is in the upright position. If possible, lay it flat for storage. FLAT - RECOMMENDED TRANSPORTING Switch off the mower and remove the battery. When transporting your mower, the self drive can be used without engaging the cutting blade.

  • Page 35: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTION mower Battery installed Check the battery installation. doesn’t work. properly. Battery discharged . Unit does not Battery outside Remove the battery and allow to cool. run when acceptable temperature turned on. range. Battery outside Remove the battery and allow to cool. acceptable temperature range.
  • Page 36 Foreign object such as Remove the foreign object. Mower blade a branch is jammed does near the blade. rotate. Stop The drive system does Ask your local authorized service center for mower not work correctly. repair. immediately! Blade is imbalanced, Replace the blade.
  • Page 37 ERROR ALARM CAUSE SOLUTION INDICATOR Release the trigger and then restart the The power-on logic is machine. If not work, contact the service incorrect, and the point for a professional consultant or baseline is abnormal repairing. Release the trigger and then restart the Over current machine.
  • Page 38 Release the trigger, remove the battery and Battery communication then plug in to restart the machine. If not abnormal work, contact the service point for a professional consultant or repairing. Release the trigger and then restart the machine. If not work, contact the service MOS abnormal point for a professional consultant or repairing.
