Summary of Contents for TNICER T3

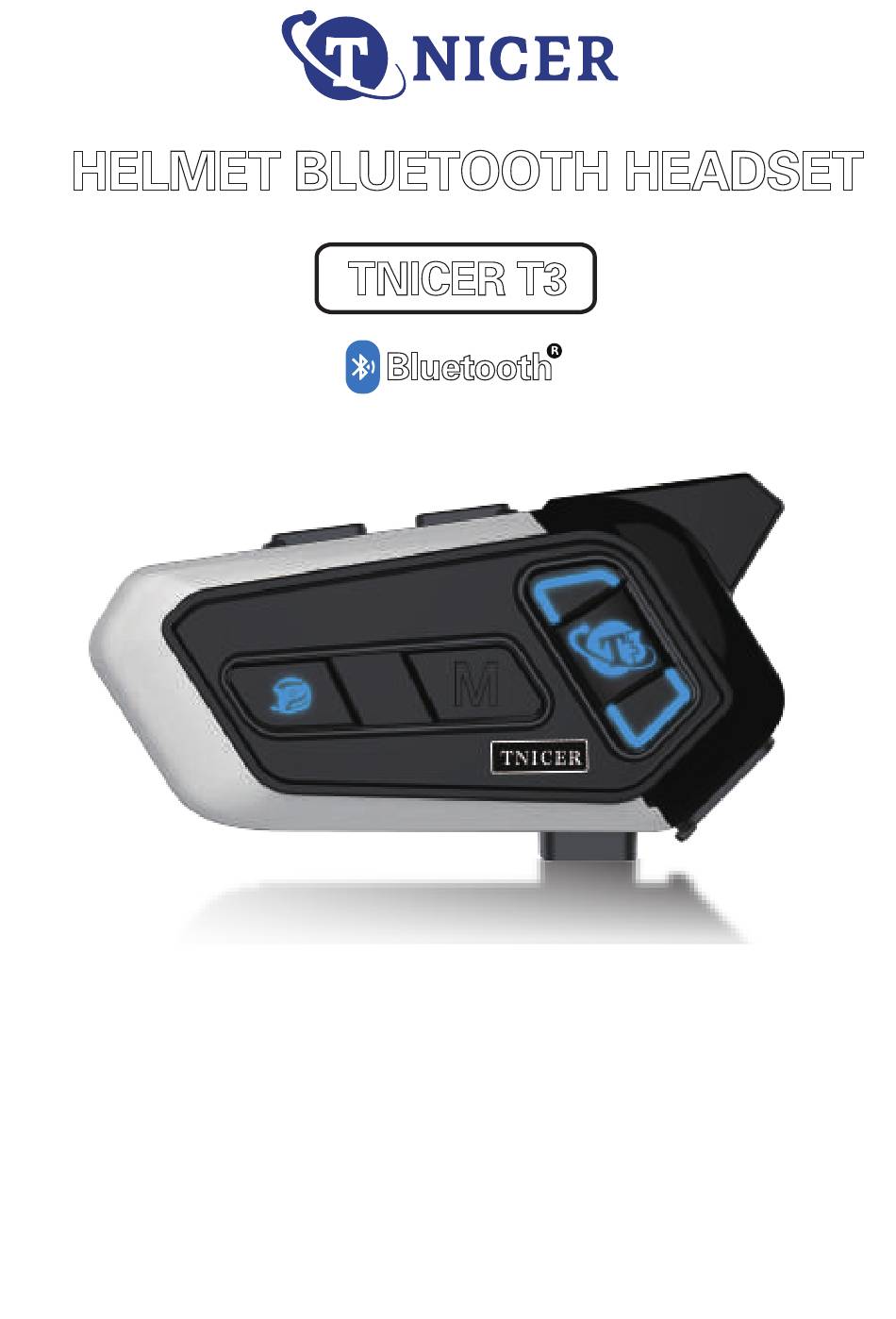

  • Page 1 HELMET BLUETOOTH HEADSET TNICER T3 Bluetooth...
  • Page 2: Product Introduction

    TNICER T3 has the latest version 5.2 Bluetooth chip , stable system operation, dual intelligent noise cancellation, low power consumption, with 40MM high quality speakers and intelligent pickup microphone, support 8 devices connected to achieve multiple people communica- tion.
  • Page 3: Function Description

    Function Description •Qualcomm version 5.2 Bluetooth chip •Intelligent DSP audio processing, the 12th generation of CVC noise reduction processing, 16K voice bandwidth transmission rate •1000m 8-way Bluetooth intercom •High pairing speed •Audio multitasking •3 EQ sound effects •Music sharing •CVC noise reduction •Ambient sound reception •FM radio •Voice assistant...
  • Page 4 Button Functions and Operations Power on/off Power on: Press and hold the [multi-function button + intercom button] for 3 seconds, the power-on prompt will sound, the blue and green light will be on. Power on: Press and hold the [multi-function button + intercom button] for 3 seconds, the power off prompt sounds, and the red light is on.
  • Page 5: Music Control

    Music Control ①Play/Pause: Intercom Bluetooth connection state, short press [multi-func- tion button] to play music, short press [multi-function button] again to pause the music. ②Next song: Long press the [volume down button] for 3 seconds to select the next song. ③Previous song: Long press the [volume up button] for 3 seconds to select the previous song.
  • Page 6: Pairing Operation

    1. If you have connected to other phones, the blue light will flash slowly, please reset and turn on the device again. 2. Search for cell phone Bluetooth, select "Tnicer-T3" connection pairing, click to connect.When the pairing is successful, it will be accompanied by the voice prompt "device is connected", and the Bluetooth connection is successful.
  • Page 7 Pairing and intercom between headsets 1. Pairing and intercom between two Bluetooth intercoms (A,B) Active/passive pairing operation: 1) Turn on the two Bluetooth intercoms (A,B), press and hold the A,B intercom [intercom button] for 3 seconds. At this time, red and blue lights alternately flashing, passive pairing mode on. 2) Short press the [intercom button] of A, red and blue lights alternately slow flashing, into the active pairing mode.When you hear the "search"...
  • Page 8 Multiple Intercom Pairing Procedure Automatic pairing steps (as 6 intercoms for example) 1) Turn on all intercoms (123456), long press all intercoms [[intercom button] for 3 seconds to turn on the passive pairing mode, until the red and blue lights alternately flashing.
  • Page 9 Music Sharing(Between 2 Intercoms) Turn on sharing: When two devices are on, music sharing must be done by the device that initiates intercom in order to share to each other, such as specifying device A to share to device B. The operation steps are as follows: 1.
  • Page 10 Voice assistant In standby state, short press [mode button] to enter the voice assistant function.At this time, the blue light flashes slowly. Last number redial In standby mode, short press [Multi-function key] twice to redial the last number. At this time, the blue light flashes quickly. Reset In the power on state, long press [multi-function button+ volume up button] for 3 seconds, the red and blue lights up at the same time to reset.
  • Page 11: Installation

    Installation Method 1: Use double-sided adhesive tape Put the double-sided adhesive pad 1 on the mounting bracket Double-sided 2 silicone pad Helmet 1 3 Mounting bracket 4 Intercom Put the mounting bracket with Snap the intercom into the mounting 2 3...
  • Page 12 Installation Method 2: Use metal clip Adhere the single-sided adhesive to the 1 mounting bracket, and then snap the metal clip into the mounting bracket Single-sided 2 Metal clip 3 silicone pad helmet 1 4 Mounting bracket 5 Intercom Snap the intercom into the mounting 3...
  • Page 13 T3 Package List Single-sided silicone pad Mounting bracket Intercom Speaker & microphone Double-sided silicone pad Charging cable Manual Metal clip Speaker velcro Square velcro 1.IntercomX1 6.Metal clipX1 2.Speaker & microphoneX2 7.Speaker velcroX2 3.Mounting bracketX1 8.Square velcroX2 4.Single-sided silicone padX2 9.Charging cableX1 5.Double-sided silicone padX2...
  • Page 14: Product Parameters

    Product Parameters Working distance: 8-way intercom, 1000m working distance between 2 riders Working frequency: 2.4GHz Bluetooth version: Bluetooth 5.2 Support Bluetooth protocol: HSP/HFP/A2DP/AVRCP Battery type: 1000mAh rechargeable lithium polymer Standby time: 350 hours Talking time: 15 hours of cell phone talk/intercom Charging time: about 2 hours Power adapter: DC 5V 1A (optional) Charging interface: TYPE-C interface...
