Summary of Contents for Westinghouse WM24FA9420
- Page 1 WM24FA9420 / WM27FA9420...
- Page 5 Power Adapter WM24FA9420/WM27FA9420...
- Page 7 Insert the neck into mounting on the back of the monitor and secure the installation by inserting and tightening the 2 BM4*8 screws.
- Page 9 Monitor Button Action Open the OSD Menu. Confirm the selection to enter the sub-menu/option. Select signal source or Exit OSD. Power ON/OFF the monitor. Press to move the option to the desired menu/settings and adjust on submenu.Crosshair Shortcut Button During Gaming. Press to move the option to the desired menu/settings and adjust on submenu.Brightness adjustment shortcut button.
- Page 10 DC interface Please connect the power adapter plug to the corresponding power port of the monitor, and then connect the power cable to a properly grounded power outlet.
- Page 11 Brightness/Contrast...
- Page 12 Main menu Secondary menu Third menu Auto Source Input Source HDMI1 HDMI2 Brightness 0~100 Contrast 0~100 Brightness/Contrast On/Off MPRT On/Off Gamma Off/1.8/2.0/2.2/2.4/2.6 Picture Mode Standard/Game/Movie/PhotO/FPS/RTS Color Temperature Cool/Normal/Warm/User Color Setting 0~100 Saturation 0~100 Low Blue Mode 0~100 Sharpness 0~100 Picture Quality Setting Response Time Off/Low/Middle/High Display...

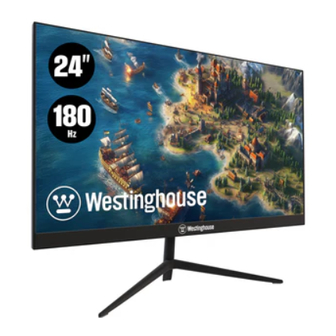

- Page 14 Product Name 23.8" Flat GAMING MONITOR 27" Flat GAMING MONITOR WM24FA9420 WM27FA9420 Product model Screen Size 23.8inches 27inches 16:9 16:9 Viewing Angle 178°(H) / 178°(V) 178°(H) / 178°(V) Contrast ratio 1000:1（TYP） 1000:1（TYP） Colors 16.7M(8bit) 16.7M(8bit) 1920×1080 1920×1080 180Hz 180Hz Maximum refresh rate...
