Summary of Contents for Zenty ZT-198

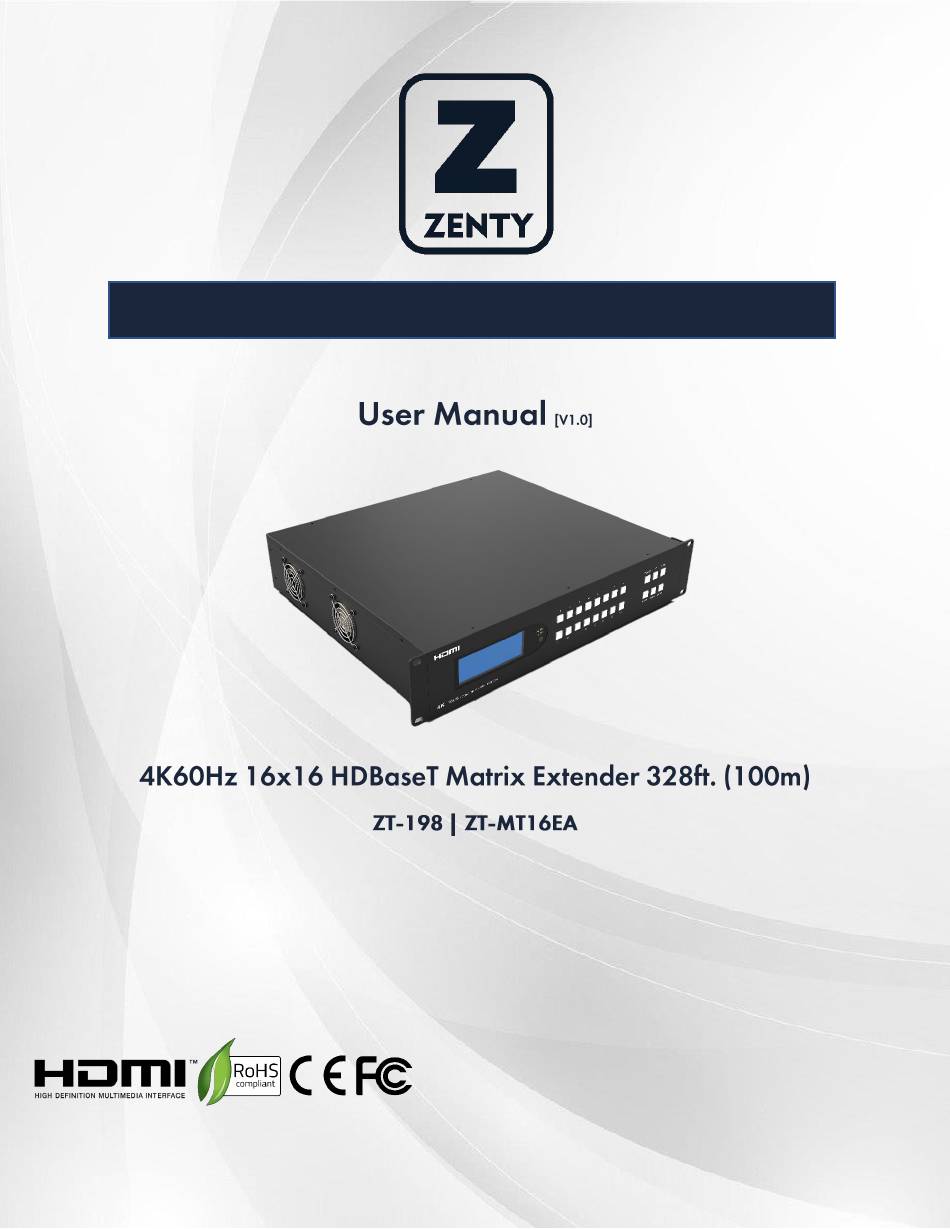

Page 1 Zenty | Professional A/V Solution Provider ® ZENTY 9807 EMILY LANE STAFFORD, TX 77477 (844) 200-1945 SALES@ZENTY.COM (844) 200-1945 | sales@zenty.com Page 1 of 32 Copyright © Zenty AV...
Page 2 This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. (844) 200-1945 | sales@zenty.com Page 2 of 32 Copyright © Zenty AV...
Page 5 -10 to +60°C (-14 to +140 °F) Operating Humidity Range 5 to 90 % RH (no condensation) Input Video Signal 0.5-1.0 volts p-p Input DDC Signal 5 volts p-p (TTL) Bandwidth (844) 200-1945 | sales@zenty.com Page 5 of 32 Copyright © Zenty AV...
Page 6 VESA Resolution List Rate Resolution Supported 640×480 √ 800×600 √ 1024×768 √ 1280×768 √ 1280×1024 √ 1600×1200 √ 1680x1050 √ 1920×1080 √ 60Hz 1280×720 √ 1360×768 √ 1920×1200 √ (844) 200-1945 | sales@zenty.com Page 6 of 32 Copyright © Zenty AV...
Page 7 720P / 1080P / 4K2K √ 25Hz ① LCD: Showing Matrix information ② Output button OUT1~16 & Input button IN1~16 ③ Function button: PRESET; MENU; UP; DOWN; LOCK; ENTER (844) 200-1945 | sales@zenty.com Page 7 of 32 Copyright © Zenty AV...
Page 8 1. 2x HDMI 2.0 Outputs 2. IR Out and IR In 3. DC12-24V (When PoC ON, no need to plug power adapter) 4. CAT5e/6 Port 5. RS232 Port 6. FW Upgrade port (844) 200-1945 | sales@zenty.com Page 8 of 32 Copyright © Zenty AV...
Page 10 1 x 16 ~ 16 x 1, which can switch any input signal to 1 channel output or all channel output. The specific operation as follows: (844) 200-1945 | sales@zenty.com Page 10 of 32 Copyright © Zenty AV...
Page 11 1. Output Setting Including 17 sub menu (Output1~16, All). Each sub menu with Video and Audio option Video supports switching the channels and turn on/off the video signals (844) 200-1945 | sales@zenty.com Page 11 of 32 Copyright © Zenty AV...
Page 12 Audio supports turn on/off HDMI, HDMI SRC, DEC On/Off DEC SRC (Source) switching (844) 200-1945 | sales@zenty.com Page 12 of 32 Copyright © Zenty AV...
Page 13 2. Input Setting Including 17 sub menu (Output1~16, All). Each sub menu with Video and EDID option Video supports turning on/off the video signals, and won’t affect the Audio extraction (844) 200-1945 | sales@zenty.com Page 13 of 32 Copyright © Zenty AV...
Page 14 EDID including 4xDefault, 4xUser, 16x Copy Output Default1 1080P 444-LPCM: 2.0-192Khz Default2 4K30 444-LPCM: 2.0-192Khz Default3 4K60 420-DTSHD-8-192Khz Default4 4K60 444-DTSHD-8-192Khz (844) 200-1945 | sales@zenty.com Page 14 of 32 Copyright © Zenty AV...
Page 15 3. Preset setting Including Clear, Save, Call option. Total support 8 presets. 4. Config setting Including Network, RS-232, User EDID, System (844) 200-1945 | sales@zenty.com Page 15 of 32 Copyright © Zenty AV...
Page 17 *Factory simple: restore running info. (Includes Video, Audio, EDID, Setup). *Factory All: reset all default setup functions. (844) 200-1945 | sales@zenty.com Page 17 of 32 Copyright © Zenty AV...
Page 18 ② Lock or Unlock the Panel Button ③ Choose output from 1-16 ④ Choose input from 1-16 ⑤ Menu (back to previous option) button ⑥ UP button ⑦ Down button ⑧ Enter button (844) 200-1945 | sales@zenty.com Page 18 of 32 Copyright © Zenty AV...
Page 19 192.168.1.168 TCP Port 5000 UDP Port 5001 Telnet Port Baud Rate 115200 Control software operation: The serial control software is illustrated with SSCOM32 as an example. Basic Settings: (844) 200-1945 | sales@zenty.com Page 19 of 32 Copyright © Zenty AV...
Page 20 1. All commands start from “#”, command head “%c”: “d” parameters, “l” lock, “s” save. 2. The “_” in the commands cannot omit. Parameter: %d: 0 means ALL.1-x means specified outputs (1~16). (844) 200-1945 | sales@zenty.com Page 20 of 32 Copyright © Zenty AV...
Page 21 ① ”window”+ “R” typing“cmd”+ “Enter” ② Typing: Telnet 192.168.1.168 (According to the correct IP address) + “Enter” ③ User: admin; Password: admin ④ Command: #cmd to get the command list (844) 200-1945 | sales@zenty.com Page 21 of 32 Copyright © Zenty AV...
Page 22 6). Select Use the following IP Address for static IP addressing and fill in the details. For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.168). 7). Click OK. (844) 200-1945 | sales@zenty.com Page 22 of 32 Copyright © Zenty AV...
Page 23 Enter the default IP address of the matrix: 192.168.1.168 Account: admin Password: admin (If forgetting the account information, sending command: #factory root=8 back to the default account information) (844) 200-1945 | sales@zenty.com Page 23 of 32 Copyright © Zenty AV...
Page 24 EDID: For setting and checking Default EDID, Copy output and User EDID information USER EDID: Supports saving Default or Output’s EDID to User EDID, and using the BIN documents upload to the User EDID (844) 200-1945 | sales@zenty.com Page 24 of 32 Copyright © Zenty AV...
Page 25 Audio Dec and ARC can only enable one of them Dec Src means decode the source audio from HDMI 1~16, Auto HDMI means follow with the output’s selection (844) 200-1945 | sales@zenty.com Page 25 of 32 Copyright © Zenty AV...
Page 28 First upgrade MCU (layer of application) and then upgrade CPLD, finally upgrade MCU, HTML (web page), (CPLD, HTML, MCU all support to use USB Micro port for upgrading) (844) 200-1945 | sales@zenty.com Page 28 of 32 Copyright © Zenty AV...
Page 29 Open the software UART_ISP_V1.6.exe on PC, select the correct port and baud rate 115200, enter "F0" in Port, then select the path of the program (XXX. HTML) in PATH, and click UPDATA to complete the upgrade. (844) 200-1945 | sales@zenty.com Page 29 of 32 Copyright © Zenty AV...
Page 30 When shipping the unit, carefully pack and send it prepaid, adequately insured, and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached. (844) 200-1945 | sales@zenty.com Page 30 of 32 Copyright © Zenty AV...
Page 31 The items listed are not exclusive, but are for illustration only.) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. (844) 200-1945 | sales@zenty.com Page 31 of 32 Copyright © Zenty AV...
Page 32 WWW.ZENTY.COM 9807 EMILY LANE STAFFORD, TX 77477 (844) 200-1945 SALES@ZENTY.COM (844) 200-1945 | sales@zenty.com Page 32 of 32 Copyright © Zenty AV...
