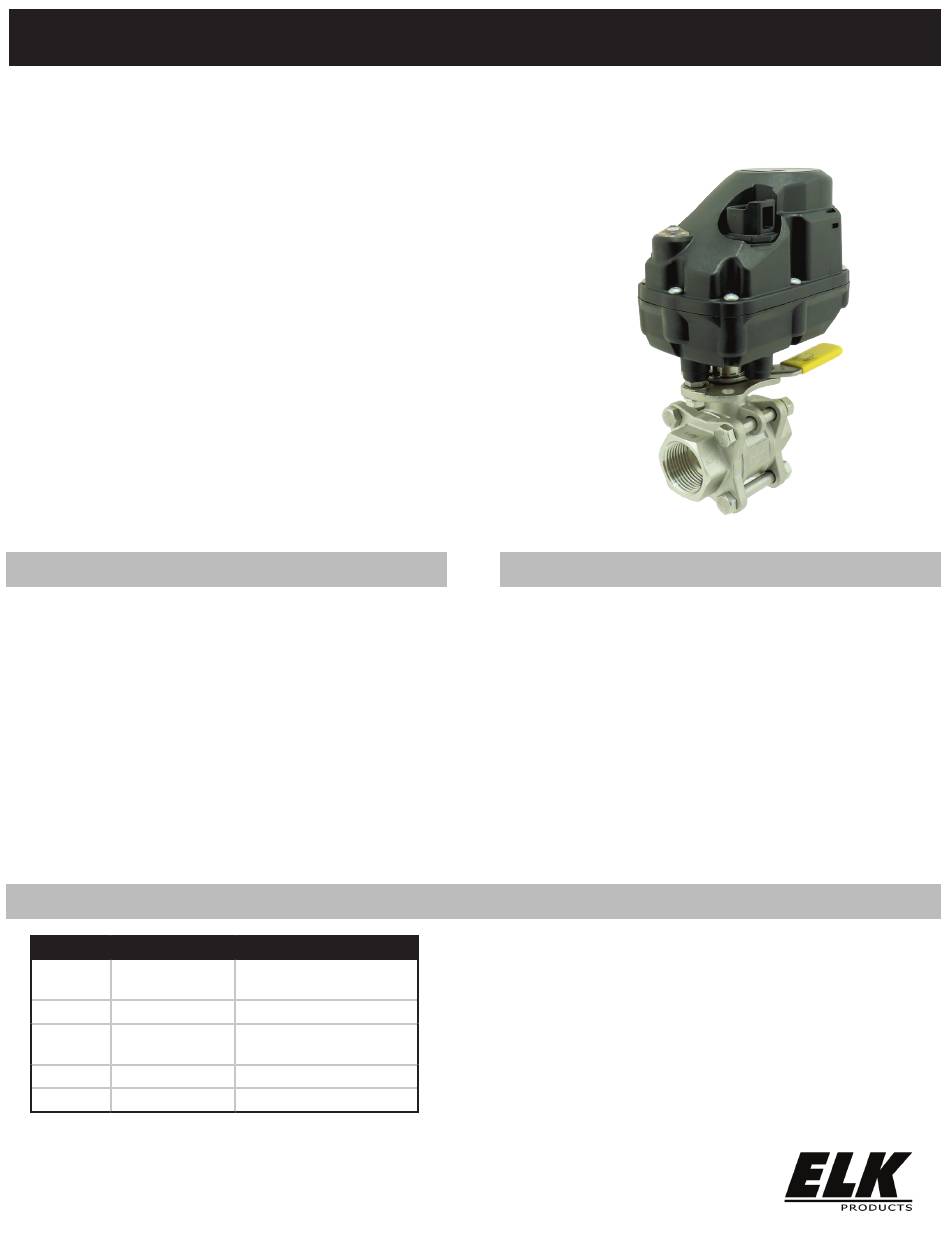

Elk Products ELK-WSV3 Manual

Water Shutoff Valve
Prevent costly water damage caused by broken pipes, leaking or broken hoses
from washing machines, ice makers, toilets, water heaters, etc.
The ELK-WSV3 is a new and improved model of our highly popular electric water
shutoff valve. It is designed for residential and light commercial domestic water
applications. The WSV3 features a 12VDC high torque on/off actuator motor as
well as a manual control handle for power outages. It features a multi-colored
LED status indicator. From the time of activation the WSV3 can shut off the main
water supply to a building in just under 1 second.
The ELK-WSV3 features a 1" full bore stainless steel ball valve with commercial
grade seats and seals. This valve does not restrict water flow and is safe for
drinking water. The motorized actuator has a permanently lubricated gear drive
with sufficient torque to open or close the valve under high pressure or after long
periods of inactivity.
The ELK-WSV3 can be operated via a SPDT (single pole, double throw) relay
triggered from virtually any security or automation controller. It can also be
operated using a simple SPDT latching push button.
NOTICE: This valve is not designed, intended, or rated for use in any fire sprinkler
.
or fire alarm application
Features
• Valve control mechanism does not incorporate built-in
water flow sensing/detection
• Integrates to Security or Automation Controller (e.g. E27
Alarm Engine or M1 Gold)
• Can be Integrated with a Manual Latching Push Button
or Wireless Receiver & Wireless Latching Push Button
• Manual emergency override control handle for use
during power outages
• Rapid Action - Opening or Closing
• Multi-color LED Status Indicator
• Wiring Harness Included
• Two (2) Year Warranty
• MADE IN USA
LED Indicator States
Color Indicator State
Red Blinking
Red Solid
Green Blinking
Green Solid
Yellow Blinking
800-797-9355 • www.elkproducts.com • info@elkproducts.com
11/23
Status
Traveling to
Closed Position
Currently Closed
Traveling to
Open Position
Currently Open
Failure/Manual Override*
Specifications
• Full Port, 2-way Ball Valve
• Stainless Steel Grade 316
• Safe for Drinking Water
• 1" NPT female threaded pipe connections
• Min./Max. Temperature Rating: 32° / 125° F
• Requires a 12 Volts DC Power Supply
• Operating Current Draw: 3.2 A
• Nominal Current Draw: 50mA
• Actuating Speed: < 1 seconds
• Enclosure Rating: IP68M Per ISO 20653
• Connections: 18 gauge, 4 conductor cord
• Overall Dimensions: 7.5" x 5.2" x 3.3"
*Note: The manual emergency override control handle is intended
for use when power has been disconnected from the valve. If the
manual emergency override control handle is used when the valve
is powered, the yellow LED will blink and the valve will no longer
respond when trigger voltage is applied to or removed from the Valve
Open (White) wire. The valve must be reset by removing power from
the Power In (Red) wire, or by using the manual emergency override
control handle to return the valve the appropriate position.
ELK-WSV3
