High Performance Siren Driver Module

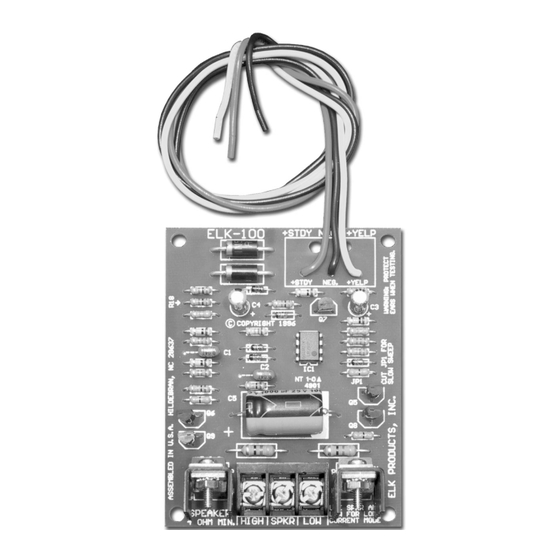

ELK-100
The ELK-100 Siren Driver is a great choice for
residential and commercial security installations. It
draws less current than most siren drivers, and
offers two volume levels (example: one indoor, the
other outdoor) simultaneously. Our exclusive
MilliMiser™ option allows further reduction of
current draw for controls that have limited alarm or
auxiliary output power. The ELK-100 has two
inputs, Yelp & Steady. The Steady sound overrides
the Yelp. The Yelp input has our unique
ComboTrigger™ feature, especially designed for
controls that have a single alarm output with a
pulsing option for fire or burglary. When pulsed,
this channel produces a distinctive third sound
pattern.

Features

• Two Volume Levels Simultaneously.
• Draws Less Current Than Most Sirens.
• MilliMiser™ Lowers Current Draw.
• Economical - Drives Multiple Speakers.
• ComboTrigger™ For Single Outputs.
• Pre-Wired for easy Installation.
• Lifetime Limited Warranty.

Specifications

• Operating Voltage: 6 to 14 Volts D.C.
• Current Draw: 1.2 Amps, (700mA on MilliMiser
• Sound Level: 120 dB @ 1 meter, 14 Volts D.C., with one 8 ohm speaker.
• Max. Speaker Loading: 4 Ohms.
• Size: 2.75" x 3.6" (70mm x 91mm).
Features and Specifications subject to change without notice.
PO Box 100 • Hildebran, NC 28637 • 800-797-9355 • 828-397-4200
Fax 828-397-4415 • www.elkproducts.com • info@elkproducts.com
05/02
™
setting), with one 8 ohm speaker.
