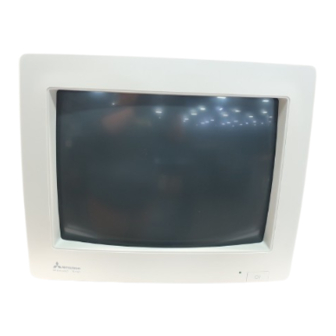

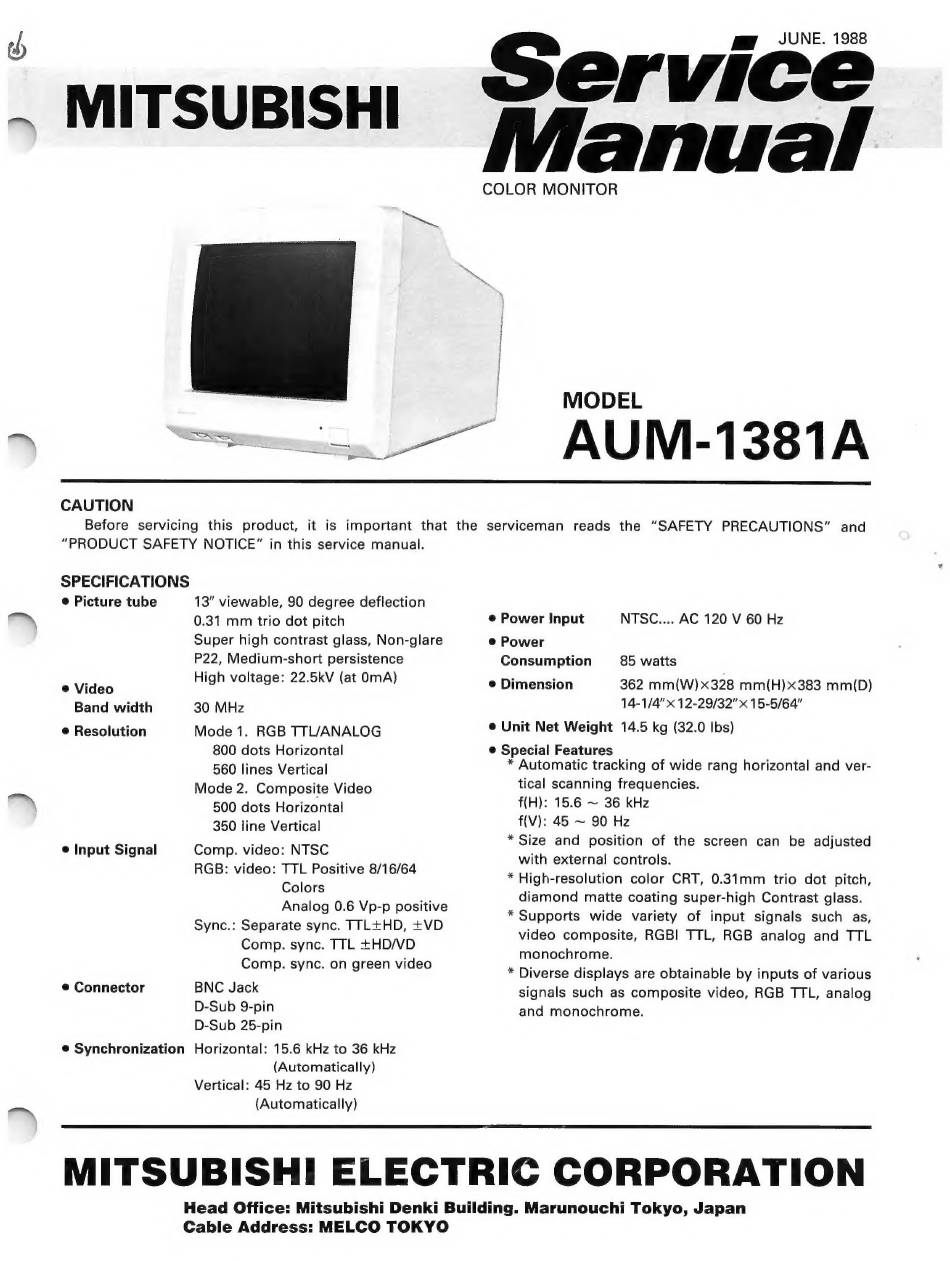

Mitsubishi AUM-1381A Service Manual

JUNE. 1988
4 Service
- MITSUBISHI Ла nua f
COLOR MONITOR
MODEL
CAUTION
Before servicing this product, it is important that the serviceman reads the "SAFETY PRECAUTIONS" and
"PRODUCT SAFETY NOTICE" in this service manual.
SPECIFICATIONS
ө Picture tube 13" viewable, 90 degree deflection
" 0.31 mm trio dot pitch е Power Input NTSC.... AC 120 V 60 Hz
Super high contrast glass, Non-glare е Power
P22, Medium-short persistence Consumption 85 watts
à Video Migh voltages 22.5KVNat:OmA) е Dimension 362 mm(W)x328 mm(H)x383 mm(D)
Band width 30 MHz 14-1/4" x 12-29/32" x 15-5/64"
е Resolution Mode 1. RGB TTL/ANALOG * Unit Net Weight 14.5 kg (32.0 Ibs)
800 dots Horizontal ө Special Features
560 lines Vertical * Automatic tracking of wide rang horizontal and ver-
Mode 2. Composite Video
tical scanning frequencies.
9" 500 dots Horizontal f(H): 15.6 — 36 kHz
350 line Vertical КМ: 45 ~ 90 Hz
а input Signal Comp. video: NTSC * Size and position of the screen can be adjusted
ORAL: - with external controls.
RGB: video: A a 8/16/64 * High-resolution color CRT, 0.31mm trio dot pitch,
ere 0.6 Vp-p positive diamond matte coating super-high Contrast glass.
Sonea Sendrate а piii qi +VD * Supports wide variety of input signals such as,
им cnn anes be ame ict video composite, RGBI TTL, RGB analog and TTL
у : 5 А monochrome.
Comp. ATE UT а * Diverse displays are obtainable by inputs of various
% Connector BNC Jack signals such as composite video, RGB TTL, analog
D-Sub 9-ріп and monochrome.
D-Sub 25-pin
е Synchronization Horizontal: 15.6 kHz to 36 kHz
(Automatically)
Vertical: 45 Hz to 90 Hz
(Automatically)
A
