Suzhou eSkywireless Inc.                      ES620 user manual
ES620 user manual
Suzhou eSkywireless Inc.



http://www.eskywireless.com






Advertisement

loading
Need help?

Need help?

Do you have a question about the ES620 and is the answer not in the manual?

Questions and answers

Summary of Contents for eSky wireless ES620

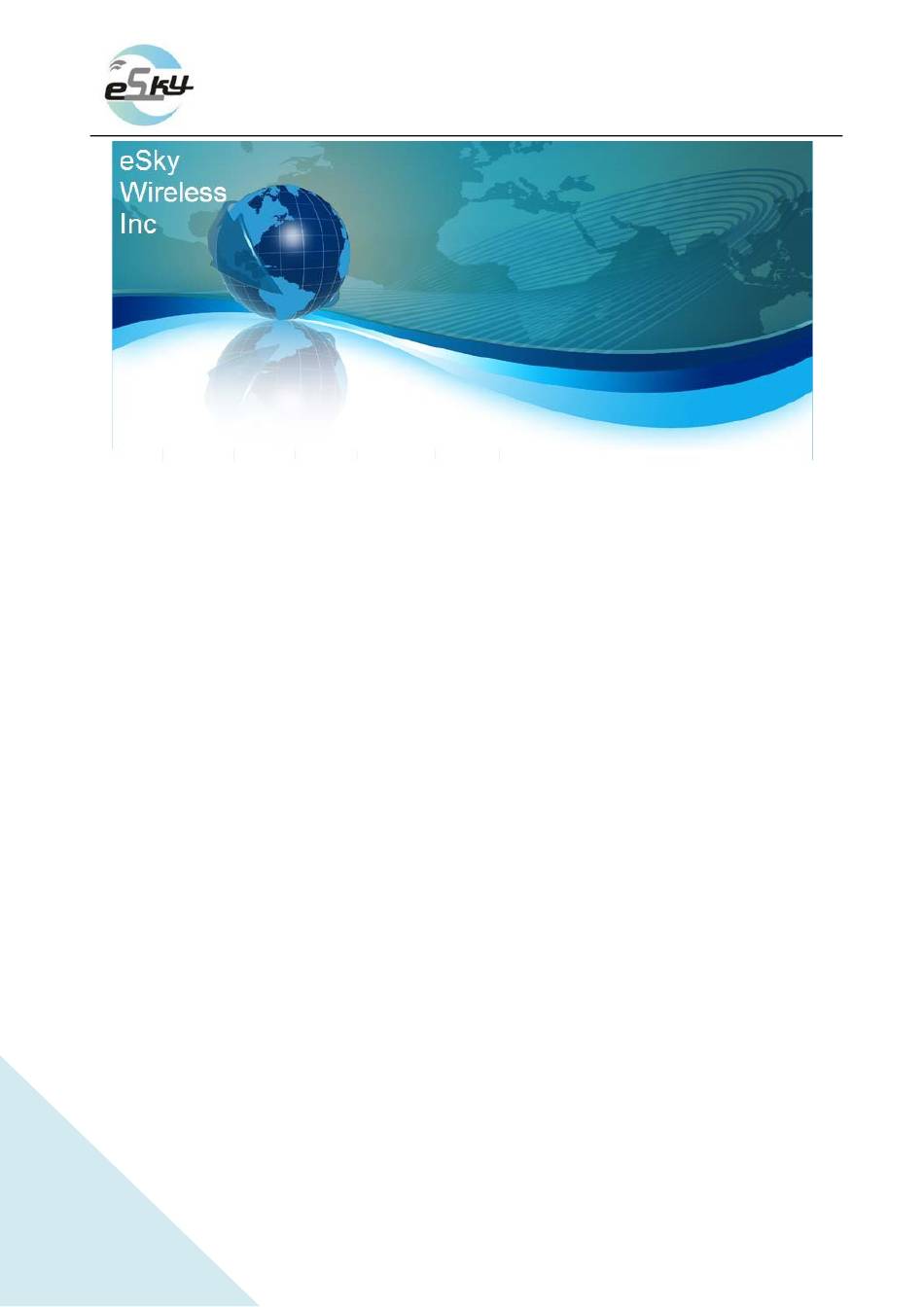

  • Page 1     Suzhou eSkywireless Inc.                      ES620 user manual     ES620 user manual                                      Suzhou eSkywireless Inc.           http://www.eskywireless.com ...
  • Page 2     Suzhou eSkywireless Inc.                      ES620 user manual     Information to User    This device complies with part 15 of the FCC Rules. Operation is subject to the following two  conditions: (1) This device may not cause harmful interference, and (2) this device must accept any  interference received, including interference that may cause undesired operation.     RF warning      This device meets the government’s requirements for exposure to radio waves.  This device is designed and manufactured not to exceed the emission limits for exposure to radio  frequency(RF) energy set by the Federal Communications Commission of the U.S. Government.   For body worn operation, this device was tested for compliance with the applicable FCC specific  absorption rate (SAR) limits for radio frequency (RF) exposure during body‐worn operations. To  ensure that RF exposure levels remain at or below the tested levels, use a belt‐clip, holster, or similar  accessory between your body and the device. Such accessories should not contain any metallic  components. Body‐worn accessories that do not meet these specifications may not ensure  compliance with applicable SAR limits and their use should be avoided.            http://www.eskywireless.com ...
  • Page 3     Suzhou eSkywireless Inc.                      ES620 user manual   1 PREPARE before INSATLLATION        1.1 Product Display    (image of ES620)    1.2Packaging Inspection   Open the box, check the terminal model is correct and the accessories are complete. Otherwise,  please contact your dealer.     1.3Install SIM Card      1.3.1 Selection of SIM Card   The ES620 is a GPS/GPRS terminal, and it needs a GSM/GPRS SIM card. please reference dealer’s  opinion to select carrier.     1.3.2 Installation SIM card   Open the terminal cover, and put the metal side of SIM card face down and then fasten the card slot  cover.     1.4Power On   The terminal standard power supply is 3.7V‐4.2V. The red light is the power light, orange light is GSM  signal, a green light is GPS signals.     Note: Equipment working temperature is ‐20℃ to 65℃。      http://www.eskywireless.com ...
  • Page 4     Suzhou eSkywireless Inc.                      ES620 user manual   2 Steps of AT Setting before tests       Start hyper-terminal connection as follows.         1)select the comm port of PC through which ES620 is connected with PC, as the follows             http://www.eskywireless.com ...
  • Page 5   3)Final step is the certain AT settings necessary after 1 running of downloaded program.     3.1) Start connection first   3.2) Restart ES620   3.3) After you see the "IIII"as the following picture, start setting.     http://www.eskywireless.com ...
  • Page 6: Install And Operation

        Suzhou eSkywireless Inc.                      ES620 user manual         3 INSTALL and OPERATION      3.1 Installation Method   The terminal is GPS positioning products, it is recommended that you follow the instructions to  install.    Note:    1) The following installation order, please do not inverted.   2) During the installation process, please do not supply the terminal.           http://www.eskywireless.com ...
  • Page 7     Suzhou eSkywireless Inc.                      ES620 user manual           Charging line.  ① charging plug.   ②   3.1.1 Installation   The equipment can be placed in any position.      ① The equipment can be in your hands.   ② Equipment can be placed in the position of any car(such as under the dashboard, windshield,  feet, etc.)   ③ The equipment can be in any package         http://www.eskywireless.com ...
  • Page 8     Suzhou eSkywireless Inc.                      ES620 user manual     3.2 Installation Notes   ① Avoid put together with the emission source, for example, reversing radar, anti‐theft devices  and other on‐board communications equipment.    ② As for fixing the terminal, you can bound with ties or stick with wide sponge strength double‐ faced adhesive.   ③ The terminal has GSM antenna and GPS antenna,so the installation should ensure that the  ES620face up (that is GPS toward the sky). Besides, there is no on‐metallic object that obscures  above the terminal.    ④ If your device is in the metal mask, GPS receiving signal will be weakened, and it may cause GPS  work abnormal. So please change the location you installed the terminal. 、                                  http://www.eskywireless.com ...
  • Page 9     Suzhou eSkywireless Inc.                      ES620 user manual   4.SOS Introduction       SOS can make an SOS call or SMS message to a pre‐configured phone.   1).SOS message: When press the SOS button, if the device positioning by GPS, the equipment will  receive GPS information; If the device can’t positioning by GPS, the equipment will receive the base  station information;    2).SOS call: When press the SOS button, the device will connect the specified number. During the call,  please held the equipment close to ear (the usage is similar with mobile phone).       http://www.eskywireless.com ...
  • Page 10     Suzhou eSkywireless Inc.                      ES620 user manual   Federal Communication Commission Interference Statement   This equipment has been tested and found to comply with the limits for a Class B digital device,  pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection  against harmful interference in a residential installation. This equipment generates, uses and  can radiate radio frequency energy and, if not installed and used in accordance with the  instructions, may cause harmful interference to radio communications. However, there is no  guarantee that interference will not occur in a particular installation. If this equipment does  cause harmful interference to radio or television reception, which can be determined by turning  the equipment off and on, the user is encouraged to try to correct the interference by one of  the following measures:   ‐ Reorient or relocate the receiving antenna.   ‐ Increase the separation between the equipment and receiver.   ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is  connected.   ‐ Consult the dealer or an experienced radio/TV technician for help.   FCC Caution: Any changes or modifications not expressly approved by the party responsible for  compliance could void the user's authority to operate this equipment.   This transmitter must not be co‐located or operating in conjunction with any other antenna or  transmitter.   This equipment complies with FCC radiation exposure limits set forth for an uncontrolled  environment.         http://www.eskywireless.com ...
