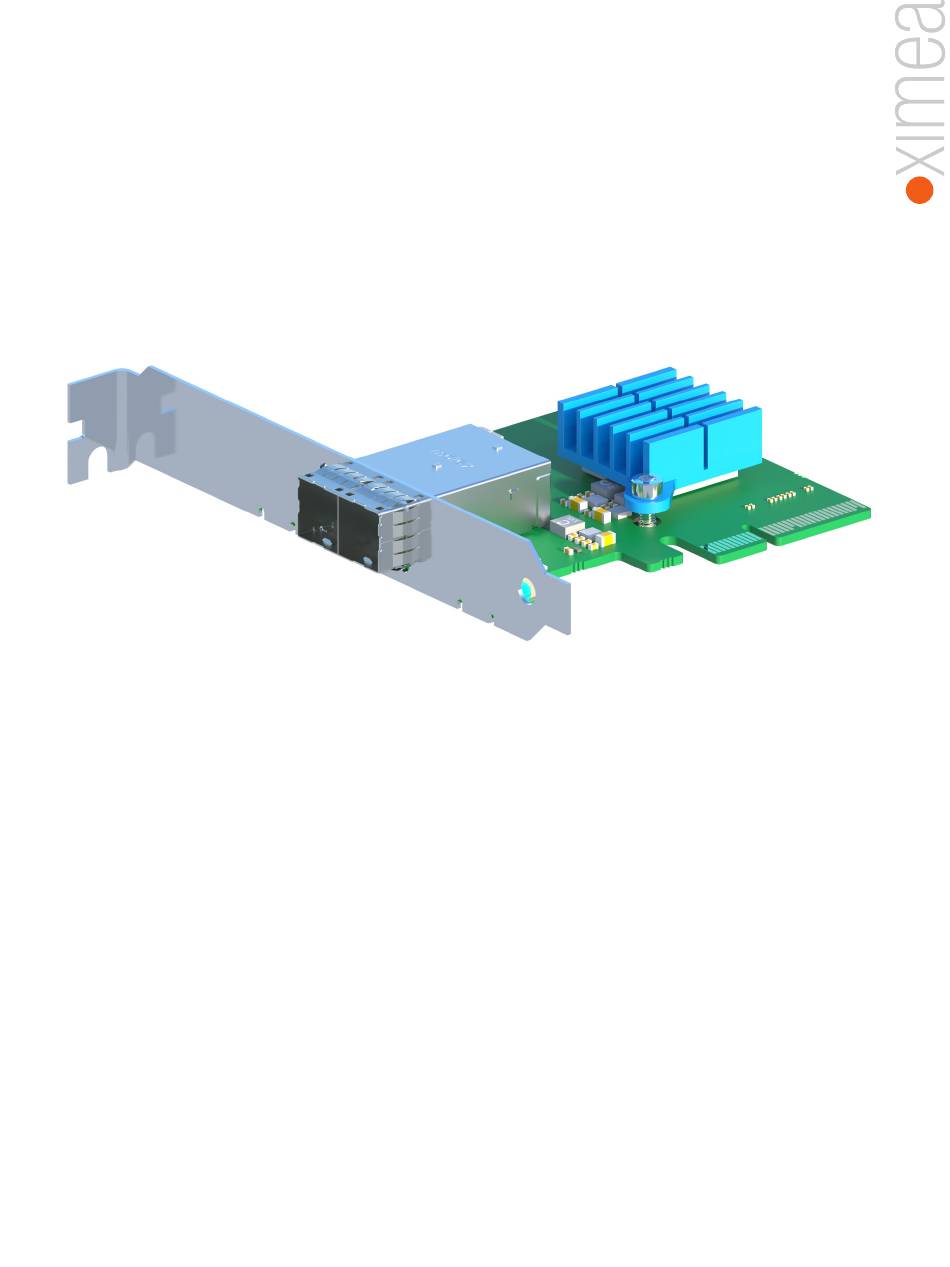

- Page 1 • HA-2P-X4G3-SFF-X4G3 Host adapter Ximea accessories • Technical Manual • Version v240830 •...
-
Page 2: About This Manual
The purpose of this document is to provide a description of Ximea accessories and to describe the correct way to install related software, drivers and run it successfully. Please read this manual thoroughly before operating your new Ximea accessories for the first time. Please follow all instructions and observe the warnings. -
Page 3: Table Of Contents
........................10 XIMEA Technical Manual, Version: v240830... -
Page 4: General Description
Blinking 2 Hz (256 ms ON / 256 ms Off) - Link is up, 5.0 GT/s, any negotiated link width ON - Link is up, 8.0 GT/s, any negotiated Link Width Table 1: LED status Figure 2: LED position XIMEA Technical Manual, Version: v240830... -
Page 5: Dimensional Drawings
Figure 3: host adapter dimensional drawing Width [ W ] Height [ H ] Depth [ D ] Mass [ M ] Material Cooling options 92 mm 121.5 mm 18.4 mm 60.6 g Stainless steel Passive heatsink Table 2: parameters XIMEA Technical Manual, Version: v240830... -
Page 6: Configuration
Port A - Port 1, Port B - Port 2 Port A - Port 1/Port 2, Port B - Port 3/Port 4 Devices connected to Port 1 and Port 2 have to share X4G3 bandwidth Table 3: DIP switches XIMEA Technical Manual, Version: v240830... -
Page 7: Connectors
Connectors Location of connectors Figure 5: HA-2P-X4G3-SFF-X4G3 connectors num. connector 2x ports for SFF-8644 fiber optic cables Table 4: connectors location Note: Port 1 is the port located further from the PCIe edge connector (PCIe blade). XIMEA Technical Manual, Version: v240830... -
Page 8: Quickstart Guide
Connect SFF-8644 fiber optic cables to the turned-off connected device (e.g., the camera) Step 4. Power up the connected device Step 5. Power up the PC Figure 6: host adapter connecting For more information about HA-2P-X4G3-SFF-X4G3 please contact: sales@ximea.com. XIMEA Technical Manual, Version: v240830... -
Page 9: List Of Figures
....................XIMEA Technical Manual, Version: v240830... -
Page 10: List Of Tables
..................... . . XIMEA Technical Manual, Version: v240830... - Page 11 XIMEA GmbH Am Mittelhafen 16 • 48155 Münster • Germany • www.ximea.com © Copyright, XIMEA GmbH, All rights reserved...
