STIENEN CLK-20 User Manual

Timer control for 20 timer functions

Advertisement

Quick Links

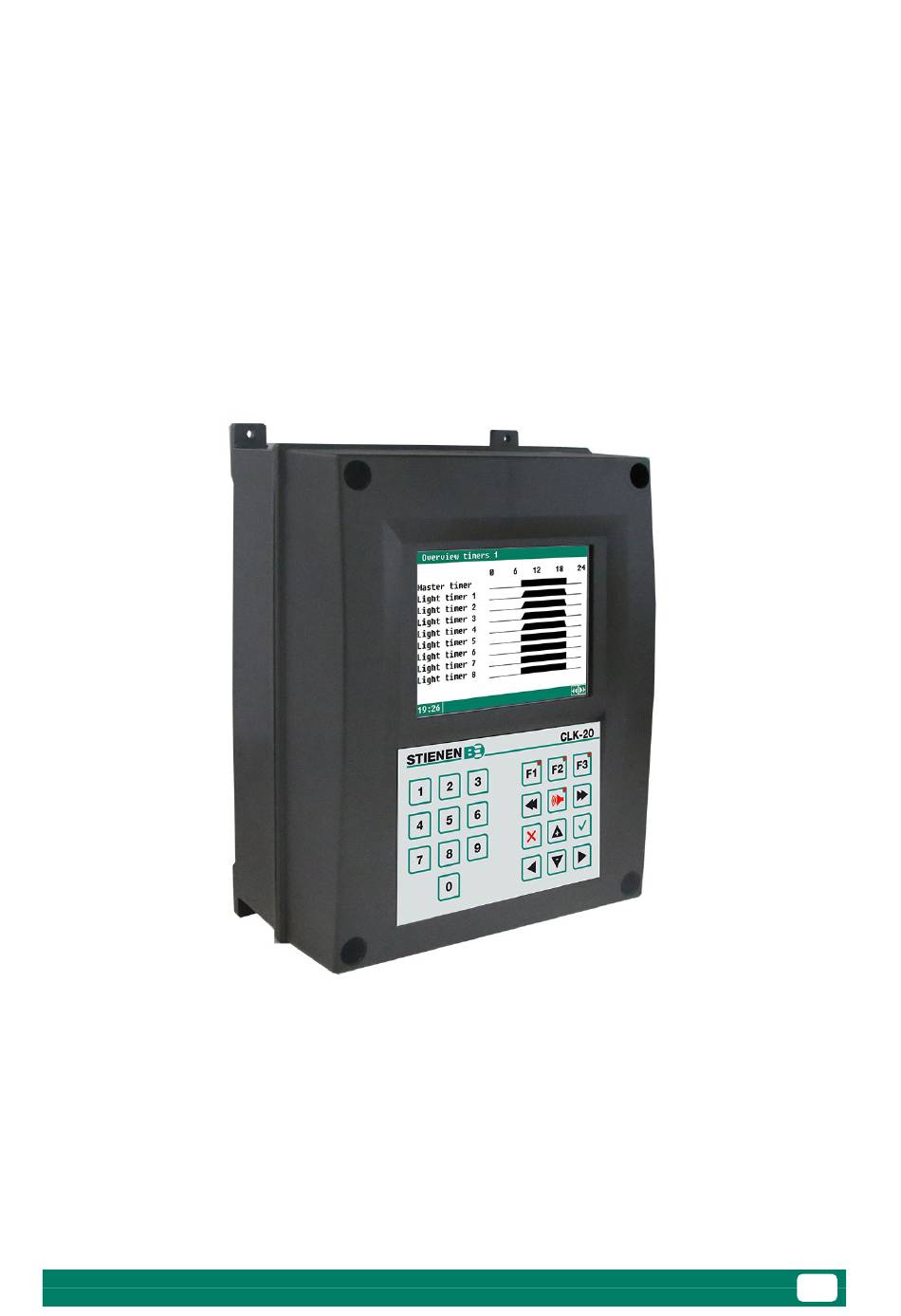

CLK-20(-i)
TIMER CONTROL FOR 20 TIMER FUNCTIONS
USER MANUAL
EN
CLK-20-I-EN02060

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLK-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for STIENEN CLK-20

  • Page 1 CLK-20(-i) TIMER CONTROL FOR 20 TIMER FUNCTIONS USER MANUAL CLK-20-I-EN02060...
  • Page 2: Table Of Contents

    No part of this publication may be copied and/or published by photocopying or any other means whatsoever, without prior written permission from Stienen BE (www.stienen.com). We do not accept any liability for the contents of this manual and explicitly waive all implicit guarantees of merchantability or fitness for a certain use.
  • Page 3: General Introduction

    Please read all information and instructions carefully before using the product. Symbols mark warnings, important notes, tips, etc. in this manual. Stienen has compiled this manual with all due care. If you find any errors, please let us know. 1.1 Symbols and definitions Risk of injury by dangerous electric shock.
  • Page 4: Safety Instructions And Warnings

    The EU has set up systems for the separate collection of waste electrical and electronic equipment and batteries (Directive 20212/19/EU). If you do not dispose of the device properly, you risk a fine. Electrical and electronic equipment must be collected separately at the end of its life. CLK-20-I-EN02060...
  • Page 5: Operation

    Whenever a key is pressed, the screen will be lit for a couple of minutes so that you can also see  the settings and measurements in a dark animal house.  Only press the keys with the tip of your finger. Sharp objects can damage the keyboard. CLK-20-I-EN02060...
  • Page 6 In edit mode, increase or decrease value. In control mode, select next or previous screen. Control buttons Confirm menu selection, enter edit mode and confirm change. Abort menu selection or change. Press and hold to return to the main menu. Shortcut to alarm screen. CLK-20-I-EN02060...
  • Page 7: Inserting Or Removing Breakpoint Or Period

    LED in the alarm button is on when there is an alarm in one of the rooms and/or central controls. In addition to the alarm cause, the relevant control and the room number are displayed. After resolving a fault, remember to turn the alarm back ON. Preferably use the Off function for troubleshooting. CLK-20-I-EN02060...
  • Page 8: Main Menu

    If you use an access code, write it down and keep it in a safe place. You cannot change settings without an access code. The access code remains active until you select the Overview screen. After that, you must enter the access code again to change settings. CLK-20-I-EN02060...
  • Page 9: Timers

    If you have not set any under Time schedule in the growth curve, the local times are used again. Master timer Standard timer (not linked to a time schedule number) With fixed time schedule number With variable time schedule number CLK-20-I-EN02060...
  • Page 10 In example: Time schedule 1. Variable time schedule number In the above two examples, the settings are copied from the curve-derived central time schedule. If Time schedule is set to no in the growth curve, local times are used. CLK-20-I-EN02060...
  • Page 11: Light Timers

    3. At the time entered at point 3, dimming of the lighting starts. In 30 minutes ( :30), the lighting is reduced to 10% and the after-run time starts. 4. At the time entered at point 4, the lighting switches off. Fixed light schedule number CLK-20-I-EN02060...
  • Page 12 You can correct the actual Begin and End times (last column) by entering a correction under Begin and End times (first column). The maximum correction allowed is + or - 8:00 hours. You do this, for example, when you want to use the master timer for several time processes with the same number of periods. CLK-20-I-EN02060...
  • Page 13: Timers

    You can correct the actual Begin and End times (last column) by entering a correction under Begin and End times (first column). The maximum correction is + or - 8:00 hours. You do this, for example, if you want to use the master timer for several time processes with the same number of periods. CLK-20-I-EN02060...
  • Page 14: Sequential Timers

    5.6 Laying nest timer The CLK-20 has a timer with on/off times for opening or closing the laying nests. The laying nest can even be opened and closed with intervals (according to a pulse/pause principle). Your installer sets the pulse/pause times, so that the laying nest will open or close at the speed you require.
  • Page 15: Date And Time

    In addition to the date and time, you can enter the start time of a new day at Beginning new day. Be careful when changing the Beginning new day setting. If this time is in a dosing period, the error message Conflicting periods appears. CLK-20-I-EN02060...
  • Page 16: Timer Overview

    Graphical overview of the timers 5.10 Alarm Besides the alarm status, the current control signal sent to the laying nest and the laying nest status are displayed. Menu 5 (Alarm) appears only if the laying nest timer has been installed. CLK-20-I-EN02060...
  • Page 17: Alarm

    6.3 Communication alarm Here you can enable and disable the communication alarm. This screen appears only on the master device. Device address The address from which the master device did not receive any data. CLK-20-I-EN02060...
  • Page 18: Alarm Codes

    No input assigned No input terminal number entered. No info from houses  Software version in CLK-20 is not up to date, update software.  The house is not in use. No output assigned No output terminal number entered.
  • Page 19: System

    System 7.1 General This screen shows the device name, the device type (172 = CLK-20), the program version, program date and other information. Set the language to ENG (English) for this manual. You can also change the language by pressing and holding functional key F1 while simultaneously pressing the left or right cursor key.

This manual is also suitable for:

Clk-20-i
