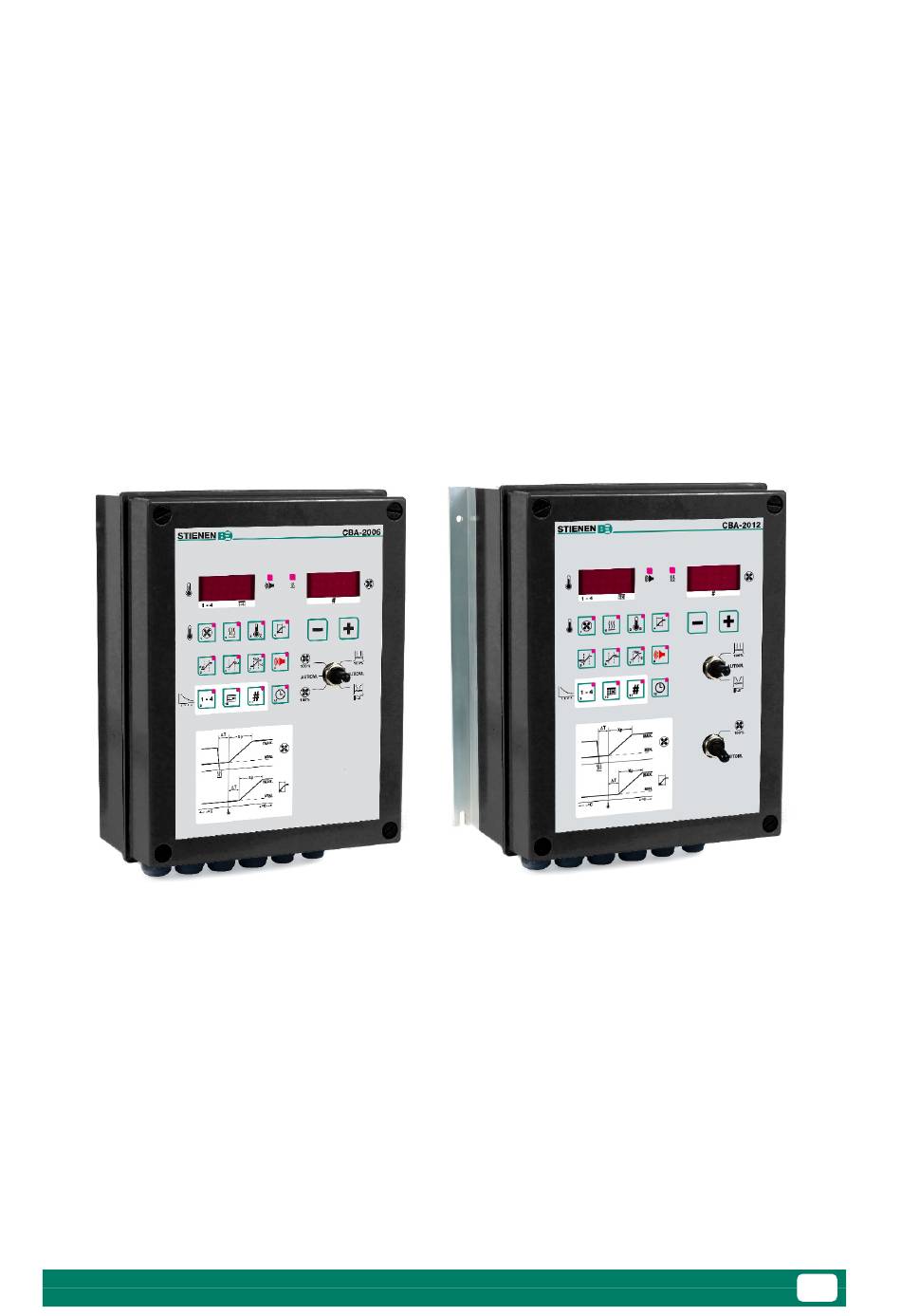

- Page 1 CBA-2006 / CBA-2012 CLIMATE CONTROL CBA-2006 CBA-2012 USER MANUAL CBA-2006-G-EN04641...
-
Page 2: Table Of Contents
No part of this publication may be copied and/or published by photocopying or any other means whatsoever, without prior written permission from Stienen BE (www.stienen.com). We do not accept any liability for the contents of this manual and explicitly waive all implicit guarantees of merchantability or fitness for a certain use. -
Page 3: General Introduction
Please read all information and instructions carefully before using the product. Symbols mark warnings, important notes, tips, etc. in this manual. Stienen has compiled this manual with all due care. If you find any errors, please let us know. 1.1 Symbols and definitions Risk of injury by dangerous electric shock. -
Page 4: Safety Instructions And Warnings
The EU has set up systems for the separate collection of waste electrical and electronic equipment and batteries (Directive 20212/19/EU). If you do not dispose of the device properly, you risk a fine. Electrical and electronic equipment must be collected separately at the end of its life. CBA-2006-G-EN04641... -
Page 5: Control Panel
Using the plus and minus keys, you can change the day number (0=curve off). 3.3 Time The Time key is used to set the current day number. Press The left display shows the hours, the right display shows the minutes. You can change these values using the plus and minus keys. CBA-2006-G-EN04641... -
Page 6: Temperature
By pressing the key again, you can set the temperature difference compared to the room temperature setpoint. 4.2 Outside temperature Press and then press . The left display shows the current outside temperature. See also parameter 2.07. CBA-2006-G-EN04641... -
Page 7: Ventilation
ON and the LED in is flashing. Press keys in succession to set the bandwidth (the temperature range within which the air inlet position is controlled from minimum to maximum). The LED in is ON and the LED in is flashing. CBA-2006-G-EN04641... -
Page 8: Growth Curves
To set the minimum air inlet position curve for the air inlet valve. To set the maximum air inlet position curve for the air inlet valve. For example, use this key combination to set the day number of the minimum ventilation curve. CBA-2006-G-EN04641... -
Page 9: Alarm
With extremely high outside temperatures, the alarm upper limit can become too high due to outside temperature compensation. You can prevent this by setting an absolute limit. The alarm is triggered when the measured room temperature exceeds the absolute upper alarm limit. CBA-2006-G-EN04641... -
Page 10: Alarm Codes
If the alarm relay is de-energized in another room and the alarm key is pressed twice in quick succession, the left display shows the letter A. The right display shows the room number concerned. * Your installer can set the alarm limits for temperature sensor 2. CBA-2006-G-EN04641... -
Page 11: Manual Control
To adjust the AQC valve, place the switch in its lower position. This will disconnect the power supply to the AQC unit and allow you to adjust the valve manually. Press and hold the MANUAL OPERATION key on the AQC unit and adjust the valve by moving the lever. CBA-2006-G-EN04641...
