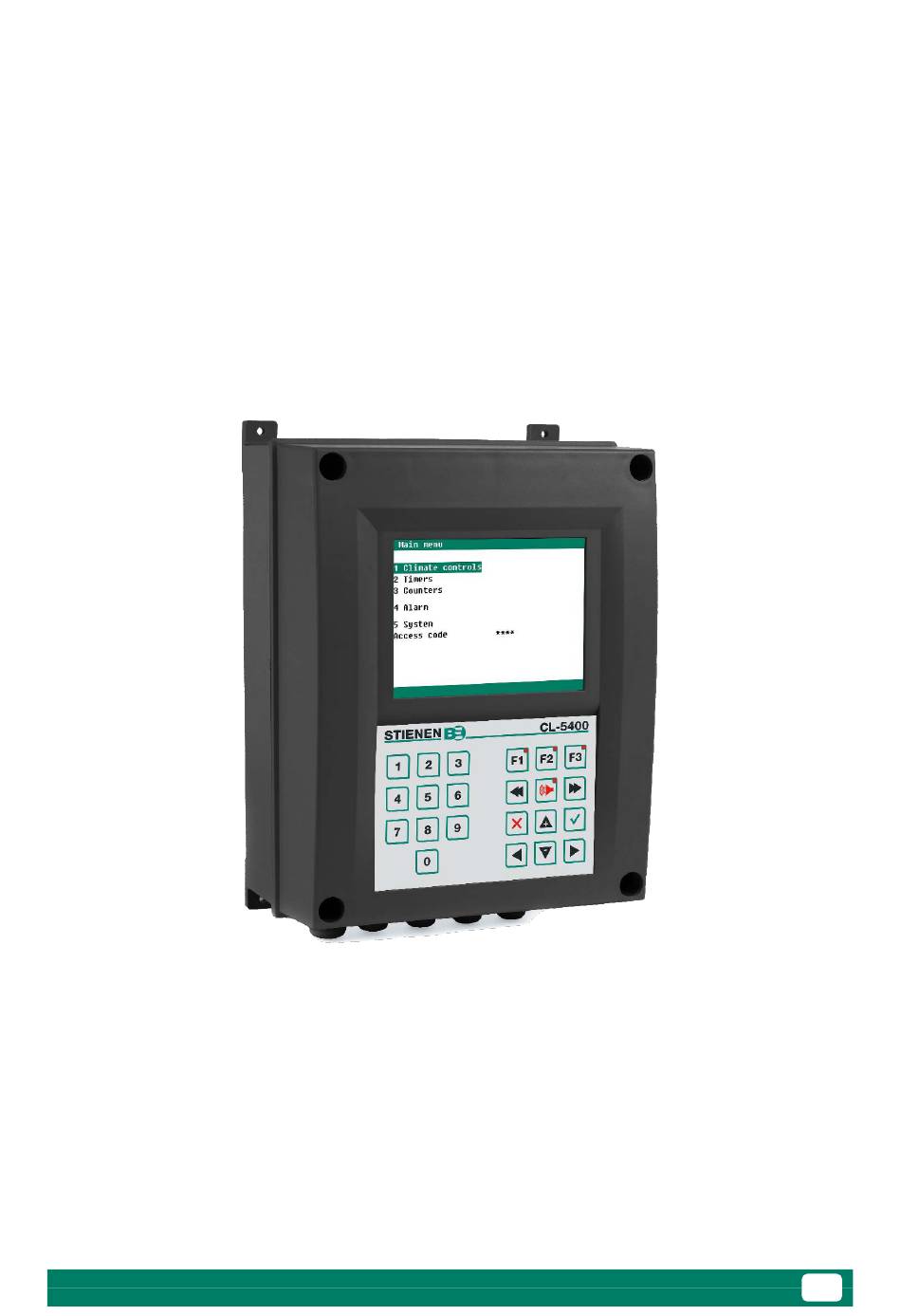

- Page 1 CL-5400 CLIMATE CONTROL FOR NATURALLY VENTILATED HOUSES USER MANUAL CL-5400-G-EN02081...
-
Page 2: Table Of Contents
7.4 Alarm ............................. 35 Alarm ..............................36 8.1 Last alarms in the house ........................ 37 8.2 Communication alarm ........................37 8.3 Alarm codes ........................... 37 System ..............................39 9.1 Date/Time ............................39 9.2 Remote control ..........................39 9.3 Display ............................39 CL-5400-G-EN02081... - Page 3 No part of this publication may be copied and/or published by photocopying or any other means whatsoever, without prior written permission from Stienen BE (www.stienen.com). We do not accept any liability for the contents of this manual and explicitly waive all implicit guarantees of merchantability or fitness for a certain use.
-
Page 4: General Introduction
Please read all information and instructions carefully before using the product. Symbols mark warnings, important notes, tips, etc. in this manual. Stienen has compiled this manual with all due care. If you find any errors, please let us know. 1.1 Symbols and definitions Risk of injury by dangerous electric shock. -
Page 5: Safety Instructions And Warnings
The EU has set up systems for the separate collection of waste electrical and electronic equipment and batteries (Directive 20212/19/EU). If you do not dispose of the device properly, you risk a fine. Electrical and electronic equipment must be collected separately at the end of its life. CL-5400-G-EN02081... -
Page 6: Display And Keyboard
The dot (●) in the graph indicates the calculated value. Pressing F3 again turns off the graphical mode. Indication that you can select the previous/next screen pressing 3.2 Keyboard Function keys Navigation keys Numeric keys Operate the keys with your fingertips and not with sharp objects, such as a pen or screwdriver. CL-5400-G-EN02081... -
Page 7: Function Keys
Hold down function key and press: to insert a breakpoint/period (provided that the maximum value for periods/breakpoints has not been reached) to remove a breakpoint/period (provided that there is at least one period/breakpoint) The number of breakpoints/periods is adjusted automatically. CL-5400-G-EN02081... -
Page 8: Alarm Key
Analog 0-10V input for connection of e.g. measuring sensors (RH, pressure, 0-10V input , NH etc.) Digital input Measuring fans, counter contacts etc. Module to which wind speed, wind direction and a rain sensor can be Meteo station connected. Pressure sensor n.a. CL-5400-G-EN02081... -
Page 9: Overview Screen + Main Menu
If one access code is active, you can only change the setting after entering the correct access code. The access code will remain active until the overview screen is selected. If you want to change a setting, you will then have to enter it again. CL-5400-G-EN02081... -
Page 10: Climate Control
Temperature control is based on absolute temperature settings. If the temperature is set at 5.0°C, the output also controls at 5.0°C. The temperature control works independently of the house temperature setpoint. 5.2 Ventilation groups Ventilation groups and fan groups CL-5400-G-EN02081... - Page 11 Fan group control based on THI basis ❷ ❹ ❻ ❸ ❶ ❺ ❶ Setting THI ❸ Minimum ventilation ❷ Bandwidth THI ❹ Maximum ventilation ❺ Current THI ❻ Current ventilation THI setting The ventilation group control is based on the THI (Temperature Heat Index). CL-5400-G-EN02081...
- Page 12 2 ventilation control, 3 = 1 and 3 ventilation control. Fan period-off time The Fan period off setpoint allows to switch off the fan for up to four periods. This prevents overloading the mains connection, e.g. during milking. CL-5400-G-EN02081...
- Page 13 Calculated flap opening The air inlet opening is calculated from the current temperature, the bandwidth and the minimum and maximum air inlet opening setpoints. Current flap opening Displays the current air inlet opening of the ventilation group. CL-5400-G-EN02081...
-
Page 14: Temperature-Based Cooling Control
THI based on which the cooling control. Bandwidth THI The bandwidth – within which the cooling is controlled from minimum to maximum – determines the ‘sensitivity’ of the control. With a smaller bandwidth, the cooling system reacts more strongly to a THI change. CL-5400-G-EN02081... - Page 15 Set Clear running hours to Yes to delete the operating hours of the cooling system. Options If the cooling should only be active on certain days or parts of the day, you can set this via the Timer. CL-5400-G-EN02081...
-
Page 16: Other
The recirculation control can be used to cool the house. If the temperature rises above the temperature setpoint, the recirculation control switches on. If the temperature drops below the hysteresis setpoint, the recirculation control switches off again. Your installer can set a hysteresis of up to 5.0°C. CL-5400-G-EN02081... -
Page 17: Compensations
Current position Current control status (ΔT measurement). 5.6 Compensations Bandwidth Max. RH influence Min. Set temperature [°C] If RH compensation, NH compensation and CO compensation are active, the highest compensation value determines the correction of the ventilation/air inlet position. CL-5400-G-EN02081... - Page 18 Relative = ((Current RH compensation start) × RH compensation factor)/100%) × Calculated ventilation compensation The CO compensation only influences the ventilation/air inlet valve position. This means that the ventilation increases as soon as the measurement exceeds the CO compensation setpoint. The absolute compensation is always displayed. CL-5400-G-EN02081...
- Page 19 NH compensation setpoint. The absolute compensation is always displayed. Menu No. 1 appears only for more than 9 Menu 1531 has a dynamic structure. ventilation groups. Controls without NH3 compensation or uninstalled controls are not shown. CL-5400-G-EN02081...
- Page 20 Above this value, there is no wind influence on the ventilation/ air inlet valve position. Influence wind Wind influence setpoint: 0 = no influence ….. 9 = maximum influence. Per side you can set a factor: Windward, Leeward and Crosswind side. CL-5400-G-EN02081...
- Page 21 The wind influence (value between 0 and 9) can be adjusted per ventilation group: 0 = no influence, 9 = maximum influence. You can set a wind influence factor for each side: wind side, lee side and cross side. The wind influence can be corrected by the outside temperature. See: Influence wind outside temp. page 17). CL-5400-G-EN02081...
- Page 22 Wind compensation (absolute) = ((Cur. wind speed - Influence wind start) / (10 - Influence wind start)) × 10 × factor Influence outside temperature = (No influence above - Cur. outside temp.) / (No influence above - max influence below) The calculated values may differ from the displayed values due to the hysteresis Flap (air inlet) closes when wind CL-5400-G-EN02081...
- Page 23 The waiting time setpoint is entered here. The second value displays the current remaining waiting time, which is only visible if it is greater than 0. Maximum ventilation If no meteo station is installed, the maximum air inlet position can be set here. CL-5400-G-EN02081...
- Page 24 The second value displays the current remaining waiting time, which is only visible if it is greater than 0. Without meteo station with separate rain sensor Maximum ventilation If no meteo station is installed, the maximum air inlet positions can be set here per ventilation group. CL-5400-G-EN02081...
- Page 25 If it rains harder than the entered rain level setpoint, the air inlet (curtain of valve) closes completely. Calculated air inlet position = Minimum air inlet position (default 0%). No influence If your installer has turned off the ventilation group compensation, the screen on the right will appear. CL-5400-G-EN02081...
-
Page 26: Overviews
Today. The house temperature is equal to the temperature of Fan 1. Fan 1 Fan 2 Fan 3 Overview Fan 1/House temperature Overview Fan 2 Overview Fan 3 Fan 4 Outside temperature Overview Fan 4 Outside temperature overview CL-5400-G-EN02081... -
Page 27: Alarm
Set Clear running hours to yes to delete the operating hours. Sensors In the same way you can display the summaries for sensors 2 to 4. 5.8 Alarm Alarm limits These temperature limits apply to fan groups and ventilation groups. CL-5400-G-EN02081... - Page 28 The alarm can only be switched on or off. The alarm limit displayed is a calculated alarm limit and depends, among other things, on the entered Maximum Alarm Limit and the THI setpoint of the control. In this example: 15 + 60 = 75. CL-5400-G-EN02081...
- Page 29 If the measuring fan is switched off, it no longer affects the control and the alarm of the ventilation group. Only if you have connected air inlet valves on a DMS module, you can turn the ventilation alarm ON and OFF on the CL-5400. Cooling...
- Page 30 Here you can enable or disable the alarm for the CO control. At Minimum alarm limit you set the CO lower limit, at Maximum alarm limit you set the CO upper limit. Furthermore are displayed the current and the current alarm status of the CO control. CL-5400-G-EN02081...
- Page 31 Alarm status shows the current alarm status of the temperature control. Outside temperature Here you can enable or disable the Outside Temperature alarm. In addition to the outside temperature, the current alarm status is displayed. CL-5400-G-EN02081...
- Page 32 Release emergency stop If the emergency stop was active, you can deactivate the alarm by setting Release emergency stop to yes. The alarm will be deleted and the text will automatically change to no). Alarm status Current alarm status. CL-5400-G-EN02081...
-
Page 33: House Status
5. Climate control 5.9 House status Overview of current measurements. CL-5400-G-EN02081... -
Page 34: Timers
ON to reduce light intensity switches OFF based on the twilight switch based on the twilight switch 100% CONTROLLED TIMER 5:30 23:00 TWILIGHT SWITCH With a twilight switch, you can switch the light on and off in between. CL-5400-G-EN02081... -
Page 35: On/Off Timer
If the light control is active and the brightness in the barn is below the set value, the light control continues to switch off until the desired brightness is reached. If it turns out that the brightness level is still too low CL-5400-G-EN02081... -
Page 36: Overview
Current brightness in the house Lighting control Current status of lighting control in %. Lighting Current lighting output; 0% = off. 6.4 Overview The graphical overview of the time switches shows the times when the installed timers are active. CL-5400-G-EN02081... -
Page 37: Counters
For each counter, you see an overview of the last seven days, the calculated weekly total and the total from the last time you cleared this counter. Furthermore, you can clear the counter readings of the individual counters here. 7.3 Overview Total overview of the three counter positions. CL-5400-G-EN02081... -
Page 38: Alarm
These screens allow you to set the maximum amount of water/feed that can flow through the water/feed pipes during the set period. If this maximum is exceeded, an alarm is triggered. In this way, you can detect possible pipe breaks or leaks at an early stage. CL-5400-G-EN02081... -
Page 39: Alarm
Installation errors such as Output already assigned, Output type incorrect, Input already assigned, etc. must be resolved before the system can be put into operation. Do not forget to turn the alarm back on after solving a malfunction. Preferably use the off function to solve a malfunction. CL-5400-G-EN02081... -
Page 40: Last Alarms In The House
8.2 Communication alarm Enabling and disabling the communication alarm A communication alarm can only occur with a CL-5400 set as the main station. If the main station does not receive data from a device in the same communication loop, a communication alarm occurs. - Page 41 Description Module not found The module number set for the terminal does not exist. Poor or no connection between CL-5400 and module. Module not responding Meteo station measurement (wind direction, wind speed, rain level) outside set limits. These limits depend on the type of transducer ME-54 or PL-MWA.
-
Page 42: System
Number of seconds the backlight stays on since the last key press. 0 seconds = backlight does not turn off. Cursor left When editing, the cursor is placed on the far left digit. When editing, the cursor is placed on the far right digit. CL-5400-G-EN02081...
