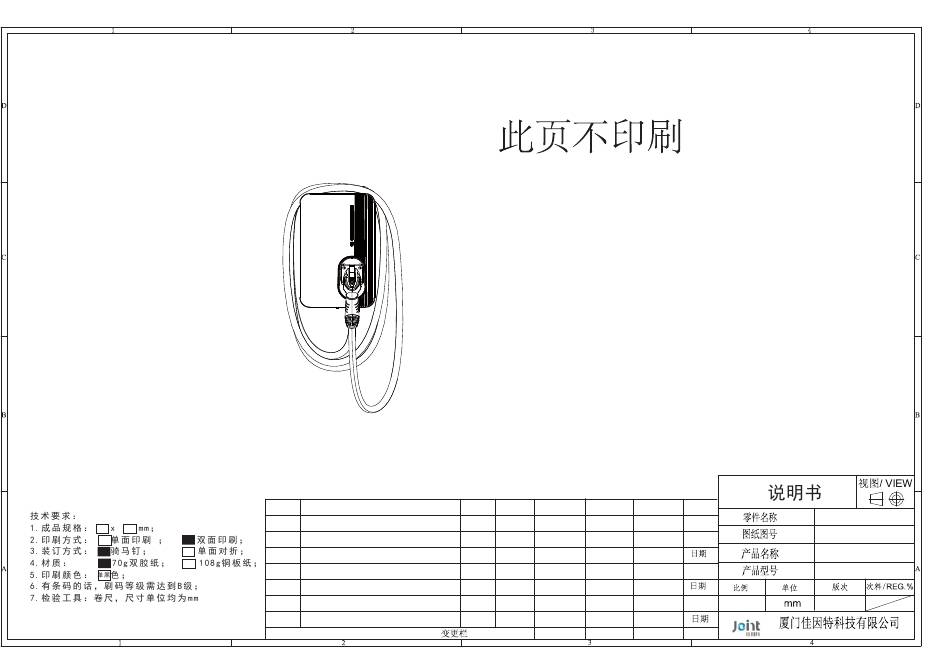

- Page 1 Electric Vehicle AC Charger JNT-EVH007/48AC/01C/BK/RF/WF/4G - User Manual 线条图提供者 设计者 EVH007 Series (NA) 排版者 审核者 2024.09.04 庄妍妍 批准者 文件翻译者 版本号 修订原因 修订人 修订日期 签名 日期 签名...
- Page 2 Electric Vehicle AC Charger JNT-EVH007/48AC/01C/BK/RF/WF/4G - User Manual Version 2...
-
Page 3: Table Of Contents
USER MANUAL USER MANUAL TABLE OF CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS ........1 2. PRODUCT INTRODUCTIONS........... 5 3. VERIFY CONTENTS..............8 4. GATHER TOOLS ............... 9 5. PLAN THE MOUNTING ............10 6. WALL MOUNTING..............11 7. WIRE THE CIRCUIT AND INSTALL 4G CARD....... 14 8. -
Page 4: Important Safety Instructions
USER MANUAL USER MANUAL WARNING & CAUTION WARNING & CAUTION 1. Important Safety Instructions 1.2 Installation Requirements 1.1 Overall Warnings & Cautions WARNING: Disconnect electrical power prior to installing the charging station. WARNING: Be sure to preview the user manual and ensure local building and electrical codes WARNING: To avoid fire, injury or death, carefully read and follow the instructions during are reviewed before installing the AC charger. -
Page 5: Consignes De Sécurité Importantes
USER MANUAL USER MANUAL WARNING & CAUTION WARNING & CAUTION Consignes De Sécurité Importantes 1.2 Exigence Avant L’installation 1.1 Avertissement & Mise En Garde Généraux AVERTISSEMENT : Assurez-vous de consulter le manuel d'utilisation et assurez-vousque les codes locaux du bâtiment et de l'électricité sont passés en revue avant d'installer le chargeur. AVERTISSEMENT : Pour éviter les risques d’incendie, de blessure ou de mort, il faut lire et suivre soigneusement les instructions pendant l’installation, l’utilisation et l’entretien. -
Page 6: Product Introductions
USER MANUAL USER MANUAL 2. Product Introductions 2.2 Basic Dimensions CAUTION: Avoid placing the charger near hot objects and at high temperature locations and away from dangerous substances such as flammable gases and corrosive materials. 9.85 " 4.93 " 2.1 Basic Interface LED Light Indication SAE J1772... -
Page 7: Specifications
USER MANUAL USER MANUAL 2.3 Specifications 3. Verify Contents JNT-EVH007/48AC/01C/BK/RF/WF/4G Ensure you have this installation guide and these parts: POWER Input Rating 208~240V AC Output Current&Power 11.5 kW (48A) Electric Vehicle AC Charger EVH007 Series (NA) -User Manual Power Wiring... -
Page 8: Gather Tools
USER MANUAL USER MANUAL 4. Gather Tools 5. Plan The Mounting Tools required before installing the Wall-Mounted charger, gather the following tools: WARNING: In areas with frequent thunderstorms, add surge protection at the service 1. Wire stripper panel for all circuits. Ensure all power and ground connections, especially those at the 2. -
Page 9: Wall Mounting
USER MANUAL USER MANUAL 6. Wall mounting STEP 3 STEP 1 Use 4 Hexagonal Expansion Screws to secure the wall-mounted bracket on the wall, Use an Make sure the installation wall is vertical, and use the Mounting template to drill four screw holes wrench to tighten the screw nuts on the expansion screws. -
Page 10: Wire The Circuit And Install 4G Card
USER MANUAL USER MANUAL 7. Wire The Circuit And Install 4G Card STEP 5 Overall outlook picture after installation: WARNING: This device must be grounded. Disconnect electrical power prior to installing the charging station. Wall-mounted cable winding Pedestal (optional) WARNING: Improper connection of the equipment-grounding conductor would result in a risk of electric shock. - Page 11 USER MANUAL USER MANUAL STEP 1 STEP 4 (ferrules) Use a hex wrench to loosen the 2 screws at Take out the AC input cable and strip the TPU 0.47"(12mm) the bottom of the charging station. Lift the cover by 5.52" (140mm), and then strip individual 5.52"(140mm) front cover and remove the front cover from wires by 0.47"...
- Page 12 USER MANUAL USER MANUAL STEP 6 STEP 8 Tighten 8 M4*13 non-slip screws Lock the M40 Conduit Fitting Part 3 ( ), Press the AC input cable with cable ramp and secure it with two screws (ST3.5*16). STEP 9 Use a hex wrench to tighten the 2 screws at STEP 7 the bottom of the charging station.
-
Page 13: Light Codes
USER MANUAL USER MANUAL 8. Light Codes 8.1 After Start UP 9. FCC Declaration Device Status Light Codes Power On Blue, green and red run clockwise This device complies with part 15 of the FCC Rules. Standby Solid Blue Plug The Charging Connector Solid Green Operation is subject to the following two conditions: Swipe Card... -
Page 14: Warranty And Maintenance
USER MANUAL 10. Warranty and Maintenance • The warranty period for this charger is three years. • During the warranty period for any malfunction under normal use according to the User Manual (to be determined by certified maintenance technicians of sellers), the product shall be repaired free of charge.
