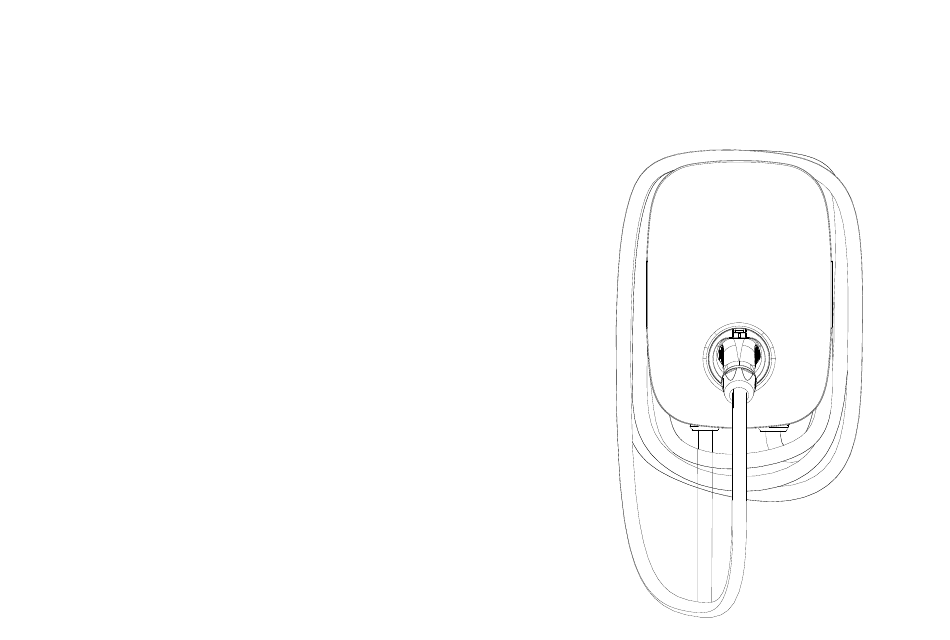

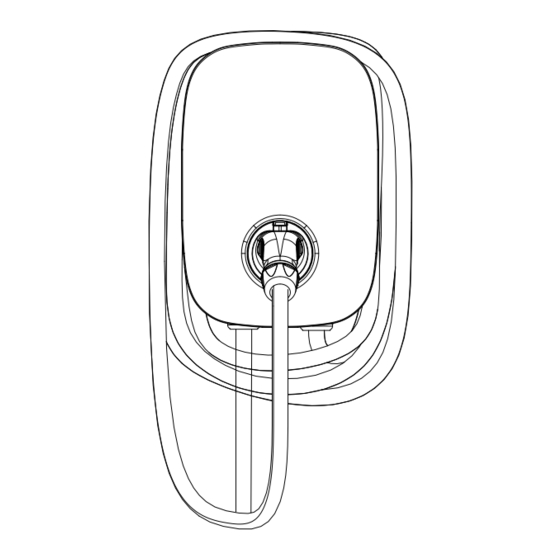

- Page 1 Electric Vehicle AC Charger EVC12 Series (EU) - User Manual...
-
Page 2: Important Safety Instructions
USER MANUAL USER MANUAL 1. Important Safety Instructions • Risk of electric shock. Do not remove cover or attempt to open the enclosure of the device. No user serviceable parts inside. Refer servicing to qualified service personnel. • To reduce the risk of serious injury or death and damage to the charge, this device should be This charger complies with IEC61851 and CE-LVD. -
Page 3: Basic Interface
2. Basic Interface 3. Dimensions 250.0mm LED Light Indication 361.5mm 111.5mm Rear Notch 4-Φ9mm 122mm Charging Cable Inlet Charging Cable Inlet LAN Cable Inlet 72mm... -
Page 4: Specification
USER MANUAL USER MANUAL 4. Specification 5. Status Description of the Charger Indication Light EVC12 Version Model Name Rated Input Voltage 230VAC±10% / Single Phase 400VAC+10% / Three Phase Rated Output Current 16/32A AC Power Frequency 50/60 Hz READY Standby - Blue Light Input Protection UVP, OVP, RCD, SPD, Ground Fault Protection The READY light stays steady in... -
Page 5: Product Name
6. Packing List 7 Installation Instructions 7.1 Safety Requirements EVC12 Series (EU) - User Manual • Be sure to preview the user manual and ensure local building and electrical codes are reviewed before installing the AC charger. • The AC charger should be installed by a qualified technician according to the user manual and local safety regulations. - Page 6 USER MANUAL USER MANUAL 7.2 Wiring For safe use of electricity, please add circuit breaker protection in the input part For safe use of electricity, please add circuit breaker protection in the input part of charging pile. Connect the L1 lead to the grid L1, connect the L2 lead to the grid L2, of charging pile.
-
Page 7: Tools And Materials Required
7.3 Tools and Materials Required 7.4 Wall-Mounted Bracket Installation Step 1: Tools required before installing the Wall-Mounted charger, gather the following tools: • Set the positions of the 4 screw holes and drill them, with a diameter of 8mm and •... -
Page 8: Operating Procedures
USER MANUAL USER MANUAL 8. Operating Instructions Step 3: Fix two M5 screws to complete the installation. 8.1 Operating Procedures ● User authorization ● Connect to Vehicle Charging Inlet ● Charging Message ● Charging completed 8.2 Operating Steps Step 1 / Standby Mode After power-on, blue light (READY), green light (CHARGE) and red light (FAULT) all lit. -
Page 9: Error And Warning Message
USER MANUAL USER MANUAL 8.3 Error and Warning Message Status Remark Input OVP 1 flashes followed by 3 sec pause Auto Recover Input UVP 2 flashes followed by 3 sec pause Auto Recover Output OCP 3 flashes followed by 3 sec pause Auto Recover 4 flashes followed by 3 sec pause Auto Recover... -
Page 10: Maintenance And Repair
9. Maintenance and Repair • During the warranty period for any malfunction caused by normal use according to the User Manual and Service Instruction (to be determined by certified maintenance technicians of Joint 9.1 Daily Maintenance Technology), the product shall be repaired free of charge. Except for the following situations, Please keep the charger clean and keep the charge in a clean area with low humidity.
