ZP755B-2P Addressable Detector Base Sounder
Installation Sheet
Description
The ZP755B-2P is an addressable sounder designed for use in
Ziton addressable fire detection and alarm systems.
The unit includes a potentiometer for a volume control, DIP
switches for setting the address, operating mode, and tone,
and two jumpers to set the power source (loop or external
24 VDC supply).
Table 1: Models
Model
Description
ZP755B-2P
Addressable detector base sounder, polar white
SPB–2P
Plug-in base, polar white
Installation
To install the device:
1.
Wire the base
2.
Set the power source (loop or external)
3.
Set the address
4.
Set the device and operating modes
5.
Set the tone
6.
Set the volume
7.
Mount the sounder onto the base
The details of each step are given below.
© 2024 Carrier. All rights reserved.
Wiring the base
Wire the base (not supplied) as shown in Figure 1. There is no
wiring between the sounder and base.

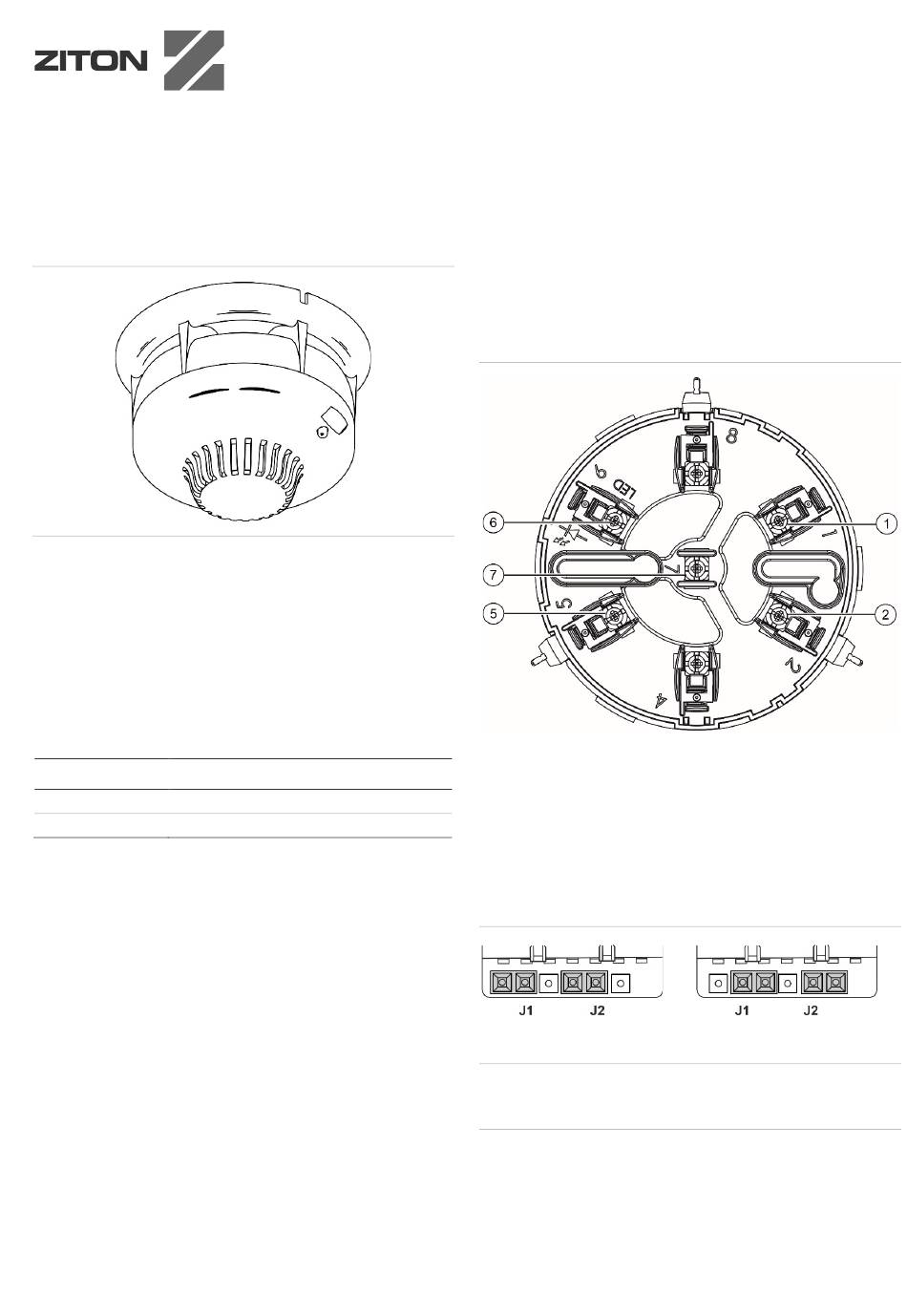

Figure 1: Wiring the base
1.
Ext. 24 VDC+ IN/OUT
2.
Ext. 24 VDC ground IN/OUT
5.
Loop+ IN/OUT
Setting the power source
Use jumpers J1 and J2 to set the power source, as shown in
Figure 2.
Figure 2: Setting the power source
Loop power
Caution:
The external power supply must be EN 54-4
compliant and of sufficient capacity for the installation
requirements.
1 / 4
P/N 10-4211-501-ZP5B-13 • REV 013 • ISS 23OCT24
6.
Loop − IN/OUT
7.
Shield
External 24 VDC power
