Ziton ZP755W-2R Installation Sheet

ZP755W-2R Addressable Weatherproof Sounder
Installation Sheet
Description
The ZP755W-2R is an addressable, weatherproof sounder,
designed for use in Ziton addressable fire detection and alarm
systems. The sounder is rated for outdoor applications.
The unit includes a potentiometer for a volume control, DIP
switches for setting the address, operating mode, and tone,
and two jumpers to set the power source (loop or external
24 VDC supply).
Installation
To install the device:
1. Wire the PCB
2. Set the power source (loop or external)
3. Set the address
4. Set the device and operating modes
5. Set the tone
6. Set the volume
7. Connect the power cables
8. Mount the sounder
The details of each step are given below.
© 2024 Carrier. All rights reserved.
Wiring the PCB
Wire the PCB as shown in Figure 1.

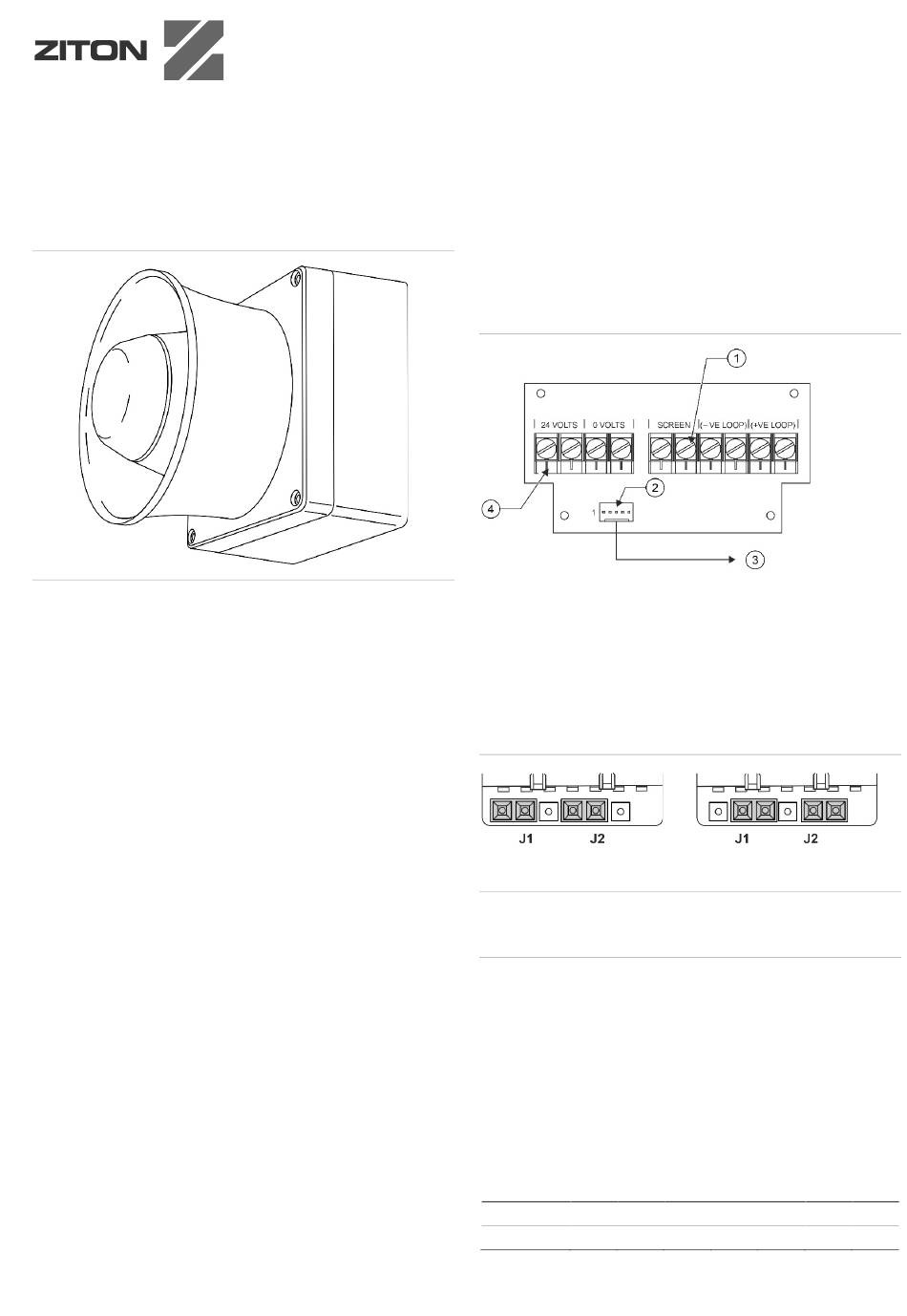

Figure 1: Wiring the PCB
1. Six-way terminal connector
2. Header socket
Setting the power source
Use jumpers J1 and J2 to set the power source, as shown in
Figure 2.
Figure 2: Setting the power source
Loop power
Caution: The external power supply must be EN 54-4
compliant and of sufficient capacity for the installation
requirements.
Setting the address
Use DIP switch SW1 (see Figure 3) to set the device address
from 1 to 127.
Each switch has a decimal value, as shown below. The device
address is the sum of the switch values.
For example, to set device address 007, set switches 1, 2, and
3 to ON and all other switches to OFF.
Note:
The switch values determine the address, not the switch
numbers.
Switch 1 2
Value 1 2
1 / 4 P/N 10-5201-501-ZP5W-12 • REV 012 • ISS 23OCT24
3. Connect to sounder
4. External power
External 24 VDC power
3 4 5 6
4 8 16 32
7
64
