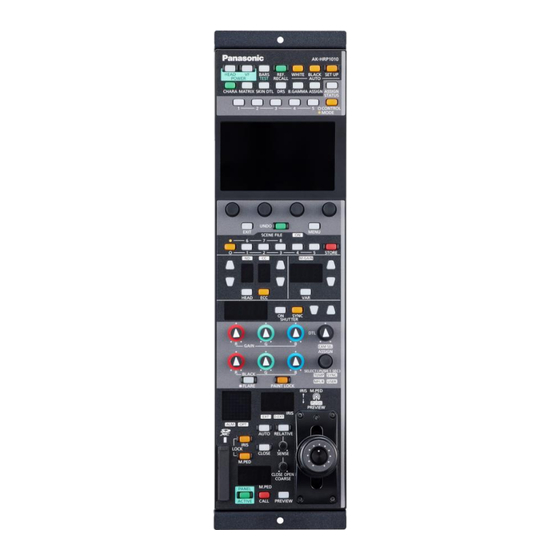

Panasonic AK-HRP1010 Setup Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Recording Equipment
  5. AK-HRP1010
  6. Setup manual

Panasonic AK-HRP1010 Setup Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

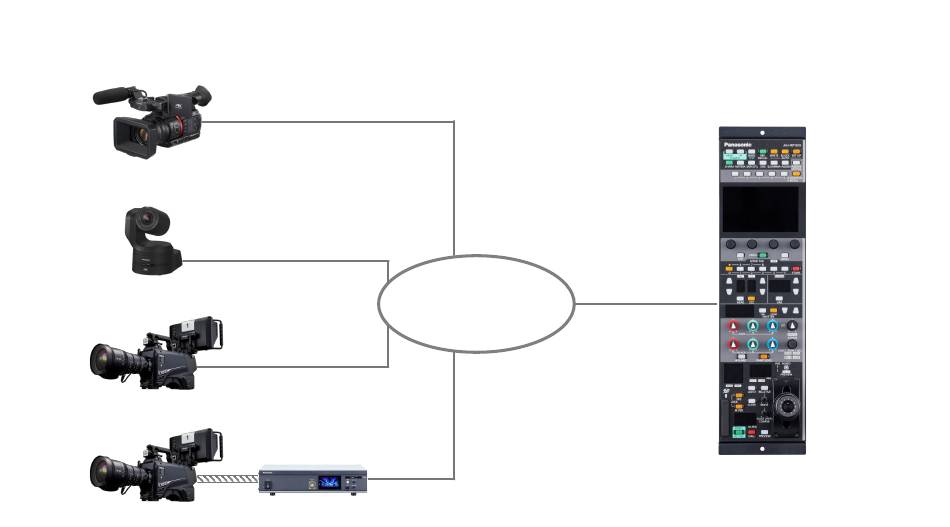

AK-HRP1010 IP Connection Setup Guide
Camcorder
PTZ Camera
Network
Studio Camera w/o CCU
AK-HRP1010
Aug. 2024
Studio Camera w/ CCU

Advertisement

loading
Need help?

Need help?

Do you have a question about the AK-HRP1010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic AK-HRP1010

Summary of Contents for Panasonic AK-HRP1010

  • Page 1 AK-HRP1010 IP Connection Setup Guide Camcorder PTZ Camera Network Studio Camera w/o CCU AK-HRP1010 Aug. 2024 Studio Camera w/ CCU...

  • Page 2: Table Of Contents

    Contents Setup w ith Camcorder Setup with PTZ Camera Setup with Studio Camera w/o CCU Setup with Studio Camera w/ CCU Connection has been established!! List of CONNECT MODE & PORT ※ • At first, please update the firmware to the latest.

  • Page 3: Setup W Ith Camcorder

    1. Setup with Camcorder (AG-CX350) PoE switch Camcorder CONNECT MODE PORT (for AK-HRP1010) AG-CX350 LAN (AG) 49154 AG-CX4000 LAN (AJ2) 49154 VariCam LT LAN (AU) 49152 AU-EVA1 LAN (AU2) 49152 o In order for the HRP1010 to connect the camcorder, CAM IP, PORT, CONNECT MODE, and CAMERA AUTH SETTING are the required parameters.

  • Page 4: User Account

    1-1. Camera Setup – Camcorder (AG-CX350) AG-CX350 IP REMOTE > ENABLE/DISABLE Locate the CX350 in the same network MENU > NETWORK > DEVICE SEL > ENABLE(HOLD) as the HRP1010. > LAN USER ACCOUNT Set Account name, e.g. CX350. Set Password, e.g. 12345678.
  • Page 5 1-1. Camera Setup – Camcorder (AG-CX350) e.g. e.g., • DHCP : OFF • IP ADDRESS : 192.168.0.35 • SUBNET MASK : 255.255.255.0 • DEFAULT GATEWAY : 192.168.0.254 LAN PROPERTY > IPv4 SETTING UTILITY > EASY IP SETTING ⇒ Set parameters. >...

  • Page 6: Rop Ip Setting

    1-2a. HRP1010 IP Address Setup MENU > [4] SYSTEM ROP IP SETTING e.g. e.g., • NETWORK SETTING : STATIC • : 192.168.0.130 • SUBNET : 255.255.255.0 • DEFAULT GATEWAY : 192.168.0.254 MENU • ※ No need to change PORT (35200). Set the IP address for the HRP1010.
  • Page 7 1-2b. Camera IP Address, Port #, CONNECT MODE Setup on HRP1010 MENU > [4] SYSTEM CAM IP SEARCH MENU Set “YES?” for CAM IP SEARCH. The camera(s) in the same network as the HRP1010 shows up.

  • Page 8: Connect Setting

    1-2b. Camera IP Address, Port #, CONNECT MODE Setup on HRP1010 • In this example, the CX350 has been assigned as ※ CAM #1 in the HRP1010. • With the following step #7 – 9, you can confirm if the ※...
  • Page 9 1-2c. Camera Auth Setting (Authentication) MENU > [4] SYSTEM CAMERA AUTH SETTING MENU Set “YES?” for SAVE. ⇒ Yes Set USER NAME & PASSWORD to be the same as the camcorder’s. ⇒ The connection should be established! • ※ USER NAME & PASSWORD are case- sensitive.

  • Page 10: Setup With Ptz Camera

    2. Setup with PTZ Camera (AW-UE160) PoE switch PTZ Camera CONNECT MODE PORT (for AK-HRP1010) AW-UE160 LAN (AW7) AW-UE150, HE145 LAN (AW4) AW-UE100 LAN (AW5) AW-UE80, UE50, UE40 LAN (AW6) AW-UE4 LAN (AW8) AW-UR100 LAN (AW9) AW-HE130, HN130 LAN (AW2)
  • Page 11 2-1. Camera Setup – PTZ Camera (AW-UE160) AU-UE160 Locate the UE160 and a PC in the same network as the HRP1010. e.g. IPv4 network e.g., • DHCP : Off • IP address(IPv4) : 192.168.0.160 • Subnet mask : 255.255.255.0 “Network” > “LAN” ⇒ Set parameters. Open the camera Web-GUI and select •...
  • Page 12 2-2a. HRP1010 IP Address Setup MENU > [4] SYSTEM ROP IP SETTING e.g. e.g., • NETWORK SETTING : STATIC • : 192.168.0.130 • SUBNET : 255.255.255.0 • DEFAULT GATEWAY : 192.168.0.254 MENU • ※ No need to change PORT (35200). Set the IP address for the HRP1010.
  • Page 13 2-2b. Camera IP Address, Port #, CONNECT MODE Setup on HRP1010 MENU > [4] SYSTEM CAM IP SEARCH MENU Set “YES?” for CAM IP SEARCH. The camera(s) in the same network as the HRP1010 shows up.
  • Page 14 2-2b. Camera IP Address, Port #, CONNECT MODE Setup on HRP1010 • In this example, the UE160 has been assigned as ※ CAM #1 in the HRP1010. • With the following step #7 – 9, you can confirm if the ※...

  • Page 15: Setup With Studio Camera W/O Ccu

    3. Setup with Studio Camera w/o CCU (AK-PLV100) PoE switch Studio Camera CONNECT MODE PORT (for AK-HRP1010) AK-UC4000 49152 AK-UC3300 49152 AK-PLV100 49152 AK-HC3900 49152 AK-HC5000 49152 AK-UC3000 49152 AK-UB300 LAN (AW) AK-PLV100 AK-HRP1010 o In order for the HRP1010 to connect the studio camera, CAM...
  • Page 16 3-1. Camera Setup – Studio Camera w/o CCU (AK-PLV100) AK-PLV100 Locate the PLV100 and a PC in the Open the Web-GUI ( Default IP 192.168.0.30 ⇒ Execute Administrator registration. same network as the HRP1010. e.g. e.g., • User name : PLV100 •...
  • Page 17 3-1. Camera Setup – Studio Camera w/o CCU (AK-PLV100) e.g. e.g., • IP address : 192.168.0.100 • Subnet mask : 255.255.255.0 • Default gateway : 192.168.0.254 • ※ No need to change ROP port (49152). “Network” > “Network setup” ⇒ Set parameters. ⇒...
  • Page 18 3-2a. HRP1010 IP Address Setup MENU > [4] SYSTEM ROP IP SETTING e.g. e.g., • NETWORK SETTING : STATIC • : 192.168.0.130 • SUBNET : 255.255.255.0 • DEFAULT GATEWAY : 192.168.0.254 MENU • ※ No need to change PORT (35200). Set the IP address for the HRP1010.
  • Page 19 3-2b. Camera IP Address, Port #, CONNECT MODE Setup on HRP1010 MENU > [4] SYSTEM CAM IP SEARCH MENU Set “YES?” for CAM IP SEARCH. The camera(s) in the same network as the HRP1010 shows up.
  • Page 20 3-2b. Camera IP Address, Port #, CONNECT MODE Setup on HRP1010 • In this example, the PLV100 has been assigned as ※ CAM #1 in the HRP1010. Set CAM No. (e.g. 1) and “YES?” for SAVE and HIT turn to “NO?” and “ - ”. SAVE.
  • Page 21 3-2b. Camera IP Address, Port #, CONNECT MODE Setup on HRP1010 10. CONNECT SETTING: The assigned CONNECT MODE can be confirmed.
  • Page 22 3-2c. Camera Auth Setting (Authentication) MENU > [4] SYSTEM CAMERA AUTH SETTING MENU Set “YES?” for SAVE. ⇒ Yes Set USER NAME & PASSWORD to be the same as the studio camera’s. ⇒ The connection should be established! • ※ USER NAME &...

  • Page 23: Setup With Studio Camera W/ Ccu

    4. Setup with Studio Camera w/ CCU (AK-UCU710) PoE switch Studio Camera CONNECT MODE PORT (for AK-HRP1010) AK-UCU700, UCU710 49152 AK-UCU600 49152 AK-UCU500 49152 AK-HCU250 49152 o In order for the HRP1010 to connect the CCU (Camera Control Unit), CAM IP, PORT, and CONNECT MODE are always the required parameters.
  • Page 24 4-1. Camera Setup – Studio Camera w/ CCU (AK-UCU710) SMPTE Cable AK-UCU710 Open the CCU’s Web-GUI ( Locate the UCU710 and a PC in the Default IP 192.168.0.20 ⇒ Execute Administrator registration. same network as the HRP1010. e.g. e.g., • USER NAME : UCU700 •...
  • Page 25 4-1. Camera Setup – Studio Camera w/ CCU (AK-UCU710) e.g. e.g., • DHCP : OFF • IP ADDRESS : 192.168.0.70 • SUBNET MASK : 255.255.255.0 • DEFAULT GATEWAY : 192.168.0.254 “NETWORK” > “LAN” ⇒ Set parameters. ⇒ “SET”...
  • Page 26 4-2a. HRP1010 IP Address Setup MENU > [4] SYSTEM ROP IP SETTING e.g. e.g., • NETWORK SETTING : STATIC • : 192.168.0.130 • SUBNET : 255.255.255.0 • DEFAULT GATEWAY : 192.168.0.254 MENU • ※ No need to change PORT (35200). Set the IP address for the HRP1010.
  • Page 27 4-2b. Camera IP Address, Port #, CONNECT MODE Setup on HRP1010 MENU > [4] SYSTEM CAM IP SEARCH MENU Set “YES?” for CAM IP SEARCH. The camera(s) in the same network as the HRP1010 shows up.
  • Page 28 4-2b. Camera IP Address, Port #, CONNECT MODE Setup on HRP1010 • In this example, the UCU710 has been assigned as ※ CAM #1 in the HRP1010. Set CAM No. (e.g. 1) and “YES?” for SAVE and HIT turn to “NO?” and “ - ”. SAVE.
  • Page 29 4-2c. Camera Auth Setting (Authentication) MENU > [4] SYSTEM CAMERA AUTH SETTING MENU Set “YES?” for SAVE. ⇒ Yes Set USER NAME & PASSWORD to be the same as the CCU’s. ⇒ The connection should be established! • ※ USER NAME & PASSWORD are case- sensitive.

  • Page 30: Connection Has Been Established

    5-1. Connection has been established!! The Information window disappears when the connection between the HRP1010 and camera has been established. If the connection has still not been established, the selected camera # might not be correct. ⇒ See the following pages.
  • Page 31 5-2. Connection has been established!! Push the SELECT knob until one of the Rotate the SELECT knob to move the indicator indicators (TEMP or CAM SEL or SYNC or to CAM SEL, then push the knob to select it. USER or MFLR) starts blinking. Rotate the SELECT knob to select the intended The selected camera # shows up on the LCD camera #, then push the knob to select it.
  • Page 32 5-2. Connection has been established!! Now, the connection between the HRP1010 and camera should be established.

  • Page 33: List Of Connect Mode & Port

    6. List of CONNECT MODE & PORT Camcorder CONNECT MODE PORT Studio Camera CONNECT MODE PORT AG-CX350 LAN (AG) 49154 AK-UC4000 49152 AG-CX4000 LAN (AJ2) 49154 AK-UC3300 49152 VariCam LT LAN (AU) 49152 AK-PLV100 49152 AU-EVA1 LAN (AU2) 49152 AK-HC3900 49152 AK-HC5000 49152...
