2.2.2 Port Introduction

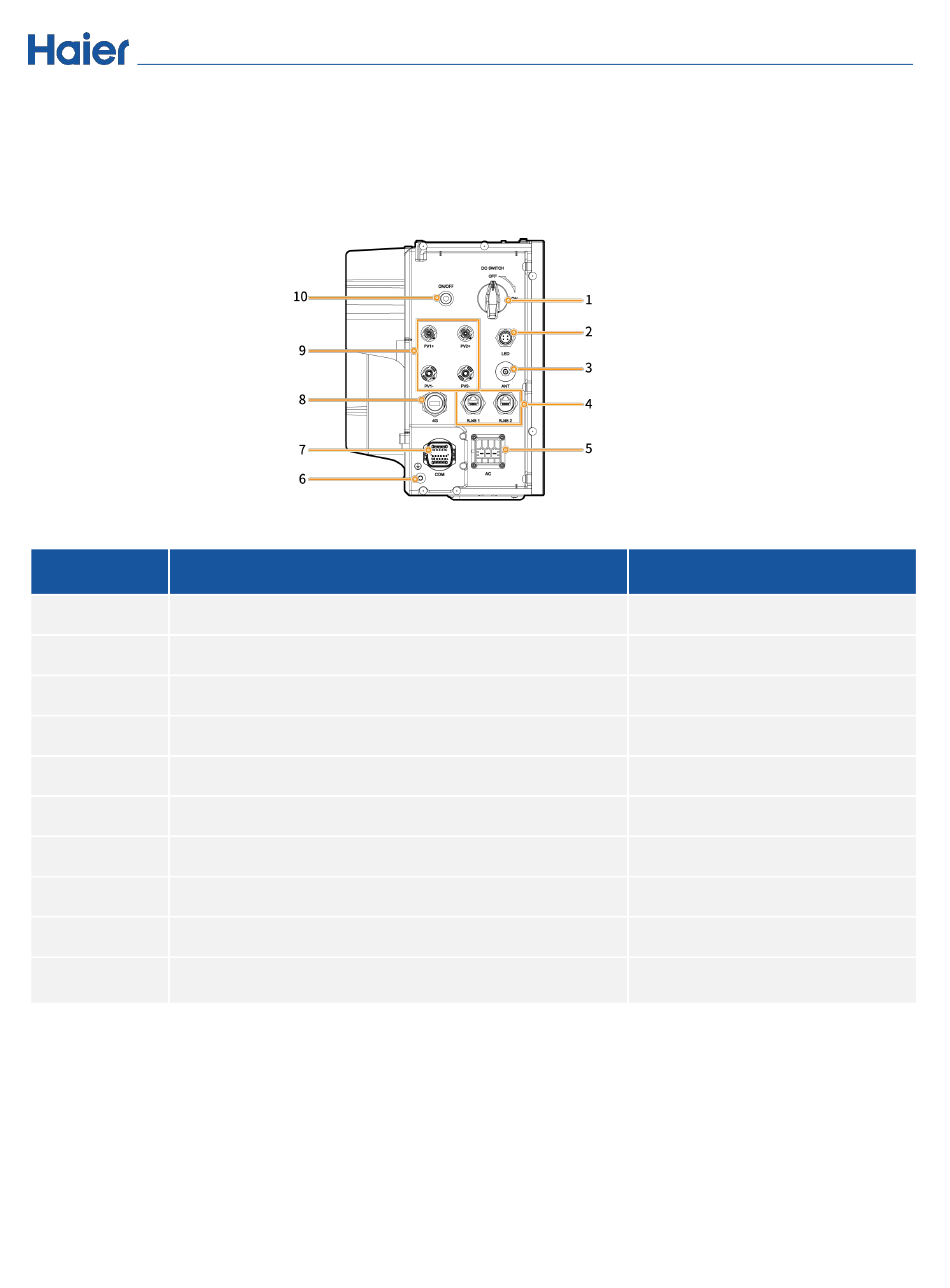

Energy Controller Left View
S/N Name
1 DC switch
2 Decorative cover light strip connector
3 Antenna interface
4 Cable interface
5 AC output interface
6 Ground screw
7 Communication interface
8 CommMod interface
9 DC input interface
10 Switch button
Marking
DC SWITCH
LED
ANT
RJ45 1/ RJ45 2
AC
–
COM
4G
PV1+/PV2+/ PV1–/PV2–
ON/OFF
