Haier Smart Cube Energy Controller Home User page 12

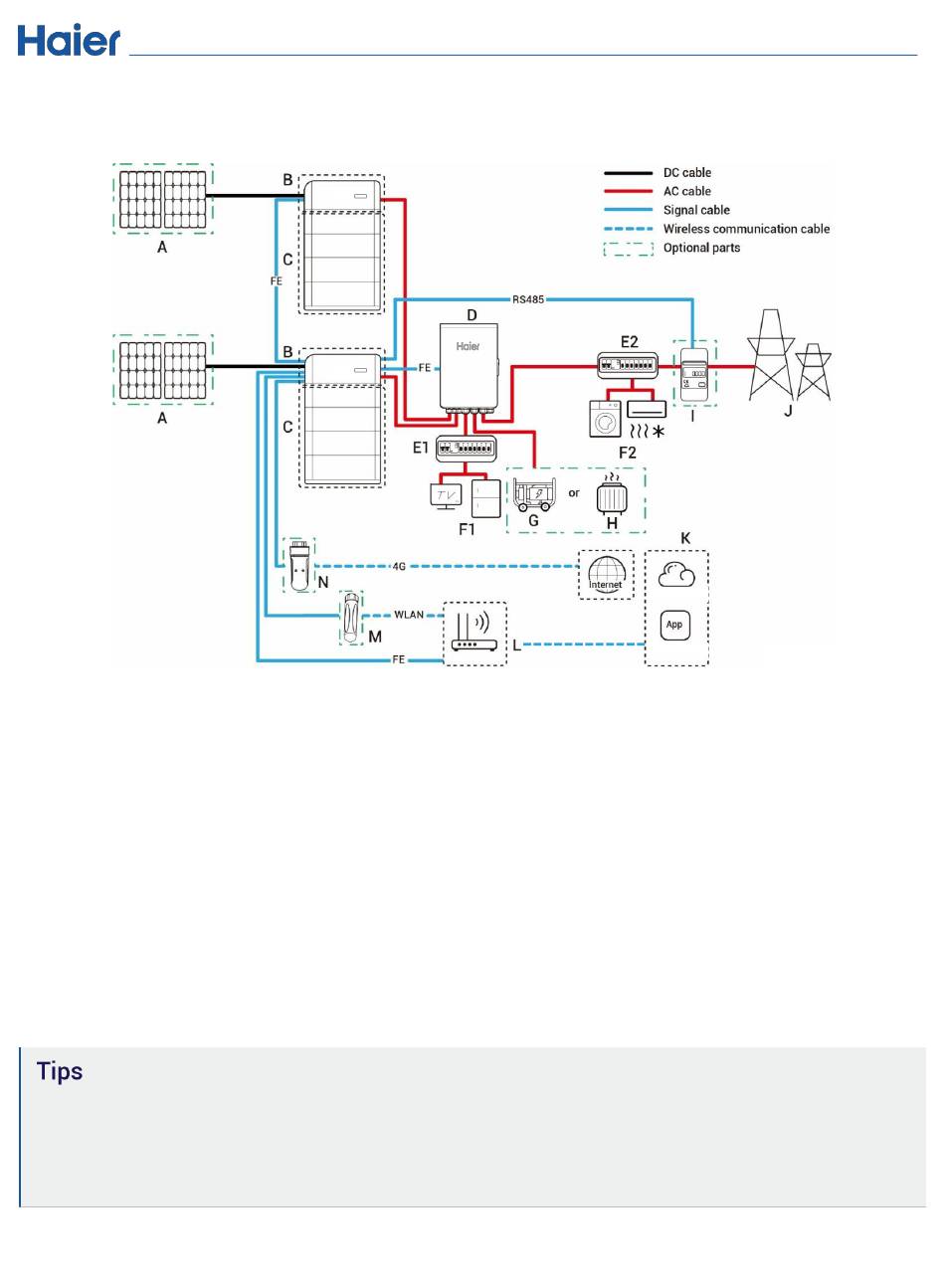

Networking Diagram (Partial Home Backup)
A. PV panel
D. Gateway
F1. Backup Electric equipment
G. Generator
J. Power grid
N. Antenna
Controllable loads include heat pumps and immersion heaters. The maximum power for an immersion heater
should be ≤ 17.6 kW/80 A.
B. Energy Controller
E1. Backup Distribution panel
F2. Non-Backup Electric equipment
H. Controllable loads
K. Haier Smart Cube
C. Battery
E2. Non-Backup Distribution panel
I. Power sensor
L. Router
M. CommMod
11
User manual
NAHUI Cloud
Haier
Smart Cube
