Sealey VSE4802.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear Eye
Instructions Protection
1. SAFETY
WARNING! Wear approved eye protection. Wear appropriate Personal Protective Equipment. A full range of Personal Protective
‰
Equipment is available from your Sealey stockist.
WARNING! Ensure that Health & Safety, Local Authority Regulations and general workshop practice Regulations are adhered to when
‰
using tools.
DO NOT use tools if damaged.
8
Maintain tools to ensure that they are in an adequate condition for safe use and optimum performance.
9
Ensure that a vehicle that has been raised by a jack is adequately supported. Use axle stands.
9
DO NOT attempt to start or move a vehicle whilst in gear and with timing devices fitted.
8
Wear suitable clothing to avoid snagging. DO NOT wear jewellery. Tie back long hair.
9
Account for all tools, parts and components being used. DO NOT leave these in or near the engine. Return tools to suitable storage
9
after use.
When not in use, store in a safe, dry childproof place.
9
Keep children and unauthorised persons away from the work area.
9
▲ IMPORTANT! These instructions are intended as a guide only. Always refer to the vehicle manufacturer's service instructions
or a proprietary manual to establish the correct procedure and data.
WARNING! The warnings, conditions and instructions in this manual cannot cover all possible conditions and situations. The Operator/
‰
User must apply caution and common sense (good practical sense).
When timing an engine, always prevent the engine from being turned over. Use a notice and/or inhibit the engine.
9
WARNING! Incorrect or out of phase camshaft timing can result in contact between the valve head and the piston crown. This will
‰
cause damage to the engine.
2. INTRODUCTION

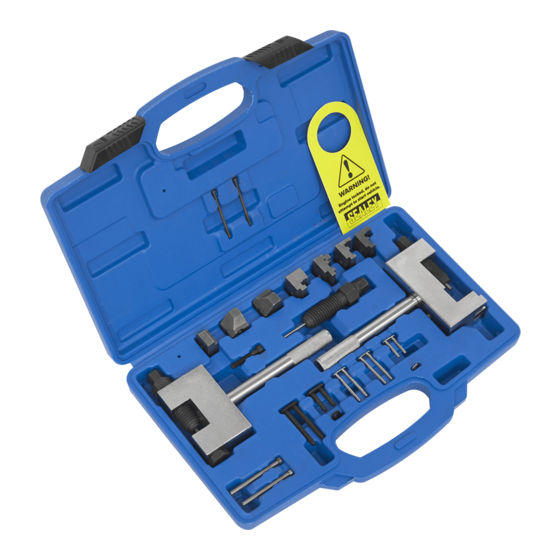

Timing chain splitting and fitting tool kit. Enables timing chain replacement with the minimum of engine dismantling. Suitable for
Mercedes chain drive engines, and some Chrysler and Jeep applications. The kit includes tools to split the chain and also the
temporary chain links required to fit the new chain. Supplied in a storage case with instructions.
© Jack Sealey Limited
TIMING TOOL KIT FOR MERCEDES,
CHRYSLER, JEEP - PETROL/DIESEL
MODEL NO:
Wear Protective
Clothing
Original Language Version
VSE4802.V2
VSE4802.V2 Issue:1 01/12/22
