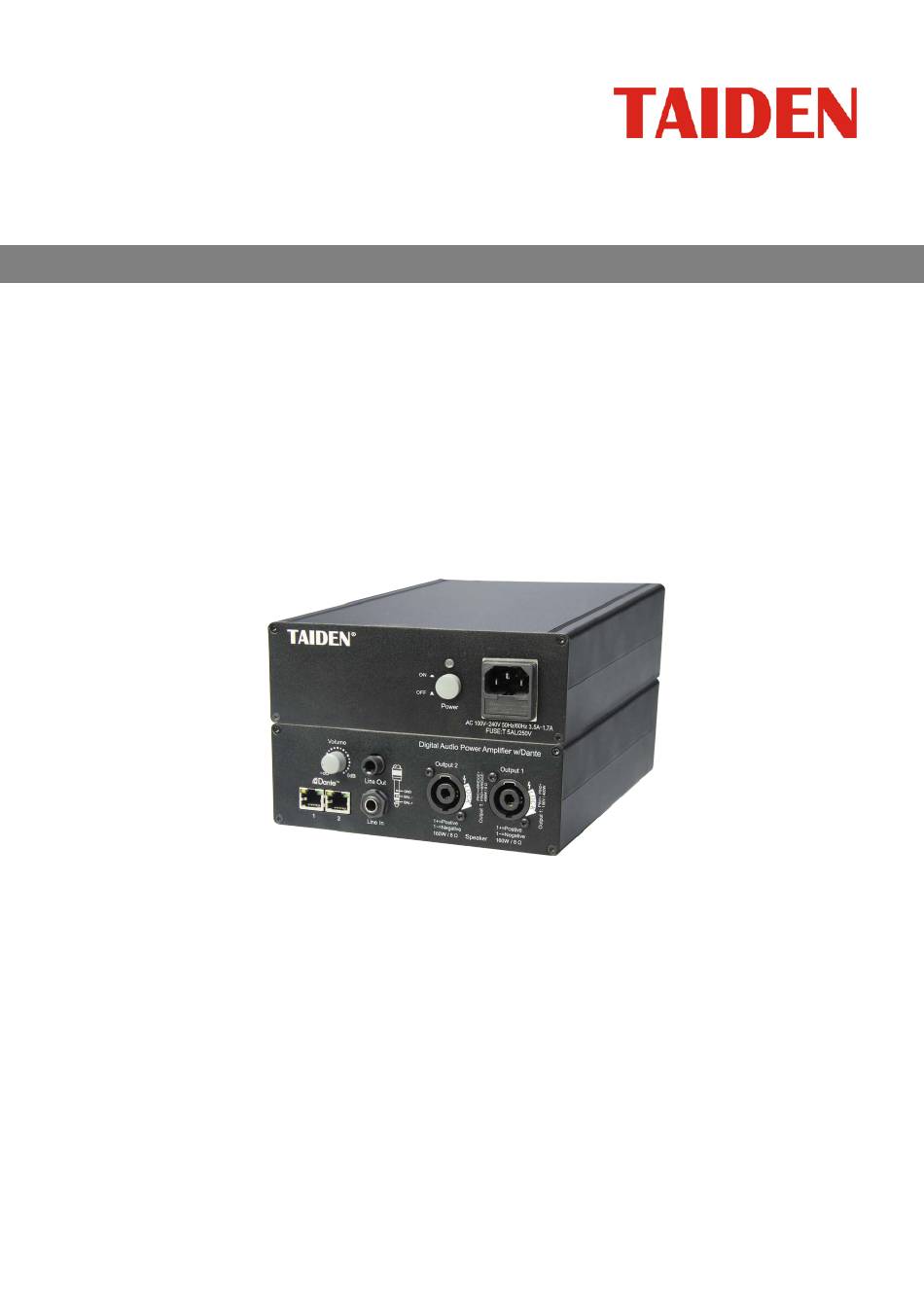

- Page 1 Digital Audio Power Amplifier Digital Audio Power Amplifier w/Dante HPA-160/02 Series Installation and Operation Manual V 1.2...
-
Page 2: Table Of Contents
Contents Important Safety Instructions ..................... III Installation & User Guide ......................V Chapter 1 Overview ........................1 Chapter 2 HPA-160D/02 ......................2 2.1 Functions and indications ..........................2 2.2 Input/Output ..............................3 2.3 Connection ................................ 4 2.4 Operating instructions ............................5 2.4.1 Protect speaker ............................ - Page 3 To protect your hearing, avoid high pressure level on earphones. Adjust to a lower and convenient level If any detailed information is needed, please contact your local agent or TAIDEN service center in your region. Any feedback, advice and suggestion about the products is appreciated TAIDEN is the registered trademark of TAIDEN Co., Ltd.
-
Page 4: Important Safety Instructions
Service Center. vases, shall be placed on the apparatus. The MAINS plug serving as a disconnection device, 20. All TAIDEN products are guaranteed for definite time (see the WARRANTY CARD for details) excluding the should be easy to operate. The apparatus should be connected to the MAINS following cases: socket-outlet with protective earth. - Page 5 Important Safety Instructions The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING: To reduce the risk of fire or electric shock, DO NOT expose units to rain or moisture.
-
Page 6: Installation & User Guide
Installation & User Guide About this manual This manual is a comprehensive guide to the TAIDEN Digital Audio installation and operation of the Power Amplifier (PA). includes detailed description of the functions and interfaces of the PA, including connection, installation, and operation. -
Page 7: Chapter 1 Overview
Chapter 1 Overview Digital audio power amplifier (hereinafter referred to as Wide operating voltage range: 100-240 VAC (± "PA") adopts the high efficiency class D power amplifier 10%) and switching mode power supply technology; the Two SPEAKON sockets for loudspeaker ... -
Page 8: Chapter 2 Hpa-160D
Chapter 2 HPA-160D/02 2.1 Functions and indications Front panel Rear panel Figure 2.1 HPA-160D/02 Digital audio power amplifier 1. Volume Gain control 3. Dante interface Gain is controlled by dB attenuation. With the Connecting to Dante network to transmit audio minimum set, the signal is completely cut off;... -
Page 9: Input/Output
6. Power switch and indicator 7. Power connector Power on/off; 100 V - 240 V, 50 Hz / 60 Hz Indicator status: 8. Ethernet Connecting to Ethernet for web function; Power on: green Can be used for firmware updating. Update/protect: orange 2.2 Input/Output Connecting knowledge:... -
Page 10: Connection
2.3 Connection To Dante network Figure 2.2: mono/stereo mode To Dante network Figure 2.3: bridge mode... -
Page 11: Operating Instructions
The sound of breathing and the high Note: TAIDEN is not responsible for any damage level and low frequency signal caused by the dropping caused by excessive use of other system of the microphone are typical infrasound signals. To components. -
Page 12: Web Control
Gateway 192.168.1.1 Netmask 255.255.0.0 Input IP address in browser to enter web server, or search HPA-160/02 with TAIDEN Device Discovery, as shown below: Figure: search device How to enter Web server: Input default IP address: 192.168.1.60 (if cannot modify the network parameters) in the web browser;... - Page 13 Click "DSP" button to go to DSP setting interface. Select channel in drop-down box, and DSP parameters can be saved in scene, supports up to four scenes. Click “Reset” on any scene to reset parameters to 0 dB settings, click “Save” to save parameters, click scene name to call scene.
- Page 14 GEQ: 31 segment graphical equalization, drag pushers to adjust equilibrium parameter. It is only for output channel. You can also enable/disable low-cut and high-cut features, and set their frequency point. Parameters setting for all output: Line out, Speaker out, Dante out Figure: GEQ of output channel DRC: DRC (dynamic ratio compressor) interface is shown as below.
- Page 15 Figure: Speaker output setting System Setting Device information and Dante information can be viewed in system setting page, the following items can be modified: Device name; DHCP: ON/OFF, when DHCP is OFF, IP Address, Netmask and Gateway can be set; ...
- Page 16 Figure: parameters of PA...
-
Page 17: Specifications
2.6 Specifications HPA-160D/02 2×200 W (4 Ω / 6 Ω) 2×160 W (8 Ω) 1×400 W (8 Ω, Bridge) Rated power 1×400 W (4 Ω / 6 Ω, Bridge) (EIAJ THD=1%，1 kHz) 1×400 W (70 V Constant voltage) 1×400 W (100 V Constant voltage) Voltage gain (8 Ω, 1 kHz) 24.0 dB Rising slope (1 kHz, Bypass low-pass filter) -
Page 18: Chapter 3 Hpa-160A
Chapter 3 HPA-160A/02 3.1 Functions and indications Front panel Rear panel Digital audio power amplifier Figure 3.1 HPA-160A/02 1. Reset 7. Ethernet Press 3 times continuously restore PA to factory Connecting to Ethernet for web function; Can be used for firmware updating. and rebooted. -
Page 19: Input/Output
12. Power output 13. Power switch and indicator Four pole SPEAKON speaker sockets; Power on/off; Mono/Stereo mode output: Output1/Output2, Indicator status: 1+=Positive, 1-=Negative; Power on: green Bridge mode output: Output1, Update/protect: orange PIN1+=BRIDGE+，PIN2+=BRIDGE-. 14. Power connector ... -
Page 20: Connection
3.3 Connection Figure 3.2: mono/stereo mode Figure 3.3: bridge mode... -
Page 21: Operating Instructions
The sound of breathing and the high Note: TAIDEN is not responsible for any damage level and low frequency signal caused by the dropping caused by excessive use of other system of the microphone are typical infrasound signals. To components. -
Page 22: Web Control
Gateway 192.168.1.1 Netmask 255.255.0.0 Input IP address in browser to enter web server, or search HPA-160/02 with TAIDEN Device Discovery, as shown below: Figure: search device How to enter Web server: Input default IP address: 192.168.1.60 (if cannot modify the network parameters) in the web browser;... - Page 23 Channel Parameters Setting Display output audio gain and level information Figure: Channel Parameters Click "DSP" button to go to DSP setting interface. Select channel in drop-down box, and DSP parameters can be saved in scene, supports up to four scenes. Click “Reset” on any scene to reset parameters to 0 dB settings, click “Save” to save parameters, click scene name to call scene.
- Page 24 Display volume gain information of loudspeaker Parameters setting for all output: Line out, Speaker out, Dante out Figure: PEQ of output channel GEQ: 31 segment graphical equalization, drag pushers to adjust equilibrium parameter. It is only for output channel. You can also enable/disable low-cut and high-cut features, and set their frequency point.
- Page 25 Parameters setting for all output: Line out, Speaker out, Dante out Figure: DRC of output channel Speaker Output: Speaker Output setting is only for Output1 and Output2 of HPA-160/02. Three speaker sound effects can be select: Normal, Music and Speech. Delay and mute can be setting for each output. Figure: Speaker output setting ...
- Page 26 analog 1; it can be used to detect the integrity of sound reinforcement system; it also can provide audio signals for acoustic environment detection, and adjust DSP parameters according to acoustic environment detection result in order to achieve a more perfect sound reinforcement effect; Low power: ON/OFF;...
-
Page 27: Specifications
3.6 Specifications HPA-160/02 2×160 W (8 Ω) 2×200 W (4 Ω) 1×400 W (8 Ω, Bridge) Rated power 1×400 W (4 Ω, Bridge) (EIAJ THD=1%，1 kHz) 1×400 W (70 V Constant voltage) 1×400 W (100 V Constant voltage) Voltage gain (8 Ω, 1 kHz) 24.0 dB Rising slope (1 kHz, Bypass low-pass filter) 50 V/μs... -
Page 28: Rs-232 Control
3.7 RS-232 control 1. RS-232 Setting Baud Rate 115200 Hardware flow control None Data format Start bit: 1, Data bit: 8, Stop bit: 1, Parity bit: None 2. Control format type - print type mode - print input souce, input mode - set PA on/off. - Page 29 TAIDEN INDUSTRIAL CO., LTD. Copyright by TAIDEN 6/F, Block B, Future Plaza, 4060 Qiaoxiang Rd, Nanshan District, Shenzhen China Last Revision: 09/2024 Website: http://www.taiden.com...
