Summary of Contents for MC2 Audio I Series

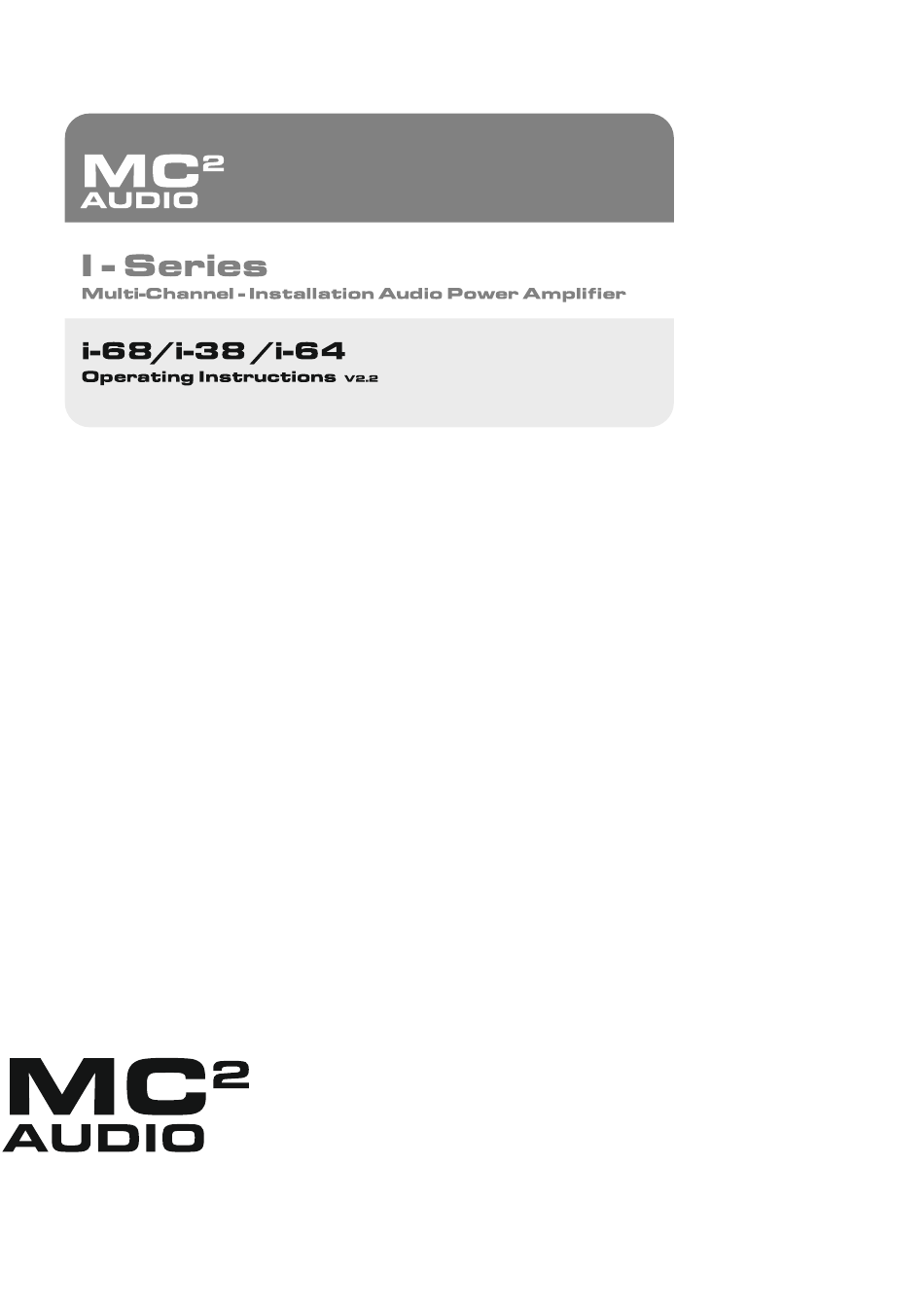

- Page 1 www.mc2-audio.co.uk Tel. +44 (0)1404 44633 Fax. +44(0)1404 44660 MC AUDIO | Units 6-8 Kingsgate | Heathpark Ind.Est. Honiton | Devon | England | EX14 1YG...
- Page 2 Page 2...
-
Page 3: Table Of Contents
Page 3 CONTENTS DECLARATION OF CONFORMITY ................ 4 THANKS ....................... 5 INTRODUCTION ....................5 IMPORTANT SAFETY INSTRUCTIONS ..............6 INSTRUCTIONS DE SECURITE IMPORTANTES ...........7 Installing Your Amplifier: Electrical Considerations ......... 8 Installing Your Amplifier: Mechanical Considerations ........9 Installing Your Amplifier: RF Emissions ............9 About Your Amplifier: Dynamic Amplifier Performance Measurements .. -
Page 4: Declaration Of Conformity
Page 4 DECLARATION OF CONFORMITY We, the manufacturer: Audio, Units 6-8 Kingsgate Heathpark Industrial Estate Honiton, Devon England EX14 1YG acknowledge our responsibility that the following products: Kind of equipment: Audio amplifier Commodity Code: 8518408099 Type Designation: i-68, i-64,i-38,i-34,Delta40DSP, Delta80DSP, Delta100DSP Delta40S, Delta80S, Delta100S, Delta120S T500, T1000, T1500, T2000, T3500, T4-250 Ti500, Ti1000, Ti1500, Ti2000, Ti3500, Ti4-250... -
Page 5: Thanks
With a range of power levels available in the i Series, these non-DSP amplifiers can be networked to a single Delta DSP model, creating a powerful, efficient system that’s easy to... -
Page 6: Important Safety Instructions
Page 6 IMPORTANT SAFETY INSTRUCTIONS CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN The lightning flash with arrowhead The exclamation mark within an symbol within an equilateral triangle is equilateral triangle is intended to alert intended to alert the user to the presence the user of important operating and 0f uninsulated “dangerous voltage”... -
Page 7: Instructions De Securite Importantes
Page 7 INSTRUCTIONS DE SECURITE IMPORTANTES ATTENTION: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR Le symbole repr sentant un éclair fl Le point d’exclamation dans un triangle é é é dans un triangle quilat ral a pour but quilat ral a pour but d’alerter é... -
Page 8: Installing Your Amplifier: Electrical Considerations
Page 8 Installing Your Amplifier: Electrical Considerations The amplifier has been manufactured to comply with your local power supply requirements, but before connecting the unit to the supply, ensure that the voltage (printed on the rear panel) is correct. The amplifier is fitted with either Auto sensing power supply operation from 110V to 230V Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 9: Installing Your Amplifier: Mechanical Considerations
Page 9 Installing Your Amplifier: Mechanical Considerations To ensure that this equipment performs to specification, it should be mounted in a suitable rack or enclosure as described below. Like all high power amplifiers, it should be kept away from other equipment which is sensitive to magnetic fields. Also, this amplifier may suffer a substantial reduction in performance if it is subjected to, or mounted close to equipment which radiates high RF fields. -
Page 10: About Your Amplifier: Dynamic Amplifier Performance Measurements
Page 10 About Your Amplifier: Dynamic Amplifier Performance Measurements The I Series amplifiers are the very latest examples of a ‘dynamic amplifier’. This new ‘breed’ of power amplifiers provide very high peak power levels in a much smaller, and lighter, package than previously possible with conventional designs. -
Page 11: Connecting To Your Amplifier: Line Inputs And Outputs
Page 11 Connecting To Your Amplifier: Line Inputs The inputs are made via 3-pin phoenix / eurostyle connectors, which are electronically balanced and should be connected via a high grade twin core screened cable, as follows. A small, flat blade screwdriver is required to terminate connections in these connectors. Left : Hot (signal +) Middle:... -
Page 12: Conencting To Your Amplifier : Speaker Outputs
Page 12 Connecting To Your Amplifier: Speaker Outputs The speaker outputs are barrier strip screw terminals, the screw terminals are designed to suit wire terminations or U type crimps with a 3.3mm / 0.13 inch mouth . The wiring polarity is printed on the rear panel, for standard wiring / Lo-Z / Hi-Z please see below :- Normal Operation When operating in normal mode minimum load = 2/2.7 ohms... -
Page 13: Operating Your Amplifier: Front Panel Controls And Indicators
Page 13 Connecting To Your Amplifier: Speaker Outputs As the currents involved are very high, and to ensure best performance, the speaker cables should be kept as short as possible and conform to the following minimum requirements: Connecting To Your Amplifier: Speaker Outputs Do not connect the inputs/outputs to any other voltage source such as a battery, mains source or power supply, regardless of whether the amplifier is turned on or off. - Page 14 Hi-Z mode voltage. The LED operation is interlocked with the 100V led. This has nothing to do the mains power operation. 16: Foam filter for air inlet, the advanced cooling system incorporated in the I series amplifier requires air sucked in through front of the amplifier, this air is blown from the exhaust vents on the amplifier rear and side.
-
Page 15: Operating Your Amplifier: Rear Panel Sockets And Switches
Page 15 Operating Your Amplifier: Rear Panel Sockets and Switches I-68 Rear Panel 1: Remote: 3.5mm stereo jack input and output for remote enabling power on / sleep. This is normally high, Pull low to switch OFF/SLEEP. For example connecting the tip / ring of the 3.5mm jack to each other will enable sleep. - Page 16 Page 16 Operating Your Amplifier: Rear Panel Sockets and Switches 6: 7: Audio network connections : These are 2 x RJ45 connectors for the network audio interface. This is an optional network card, it can be specified with order, it can also be retrofitted by a competent technician.
- Page 17 Page 17 Operating Your Amplifier: Rear Panel Sockets and Switches 14: Speaker Outputs: These are barrier strip outputs for connecting loudspeakers, 70V or 100V line. While wires can be connected directly here, they are designed for U type crimp with a 3.3mm / 0.13 inch mouth.
-
Page 18: Operating Your Amplifier: Initial Set-Up And Switching On
Standby power consumption is in the 2 -10W range. 18: Exhaust vents : I series amplifier suck air in the front panel foam filters. They blow air out through these exhaust vents on the side and rear.. DO NOT OBSTRUCT amplifier vents –... -
Page 19: Inside Your Amplifier: Block Diagram
Page 19 Inside Your Amplifier: i68 / i64 Block Diagram I - V - TEMP CONTROL REAR 26dB / 32dB LIMITER GAIN PRESET Select PRESENT POWER DANTE LIMITER AMPLIFIER INPUT NET 1 - 4 CHANNEL REMOTE 1 LO Z / HI Z Future BARRIER REAR... -
Page 20: Operating Your Amplifier: Source Selection
Page 20 Operating your amplifier Operating Your Amplifier: Initial Set-up and Switching On Source Choices and Selection Your amplifier can source audio from analogue or network locations (if a network card is fitted). Analogue audio via the balanced rear phoenix / eurostyle connects is standard. -
Page 21: Operating Your Amplifier: Loudspeaker Selection
Operating Your Amplifier: Loudspeaker Selection Your I series amplifier allow easier connection of hi z and lo z speaker via the rear barrier strips. The DIP switches which change Lo Z and Hi modes should only be operated when the amplifiers is OFF/ SLEEP. -
Page 22: Operating Your Amplifier: Gpio - Power, Sleep , Standby
Page 22 Operating Your Amplifier: GPIO Operation – Power/ Standby and Sleep i68 / i64 Power Modes Sleep to On = <10 second Gpi 2 / Standby to ON = <1second 120W Wake Up jack = +V Gpi3 = Audio = Auto Standby <60dBu Dip Switch... -
Page 23: Operating Your Amplifier: Gpo - Reporting
Page 23 GPIO Operation – Power/ Standby and Sleep GPIO (shown On) STANDBY 300mS @ OV Last takes precedence rules apply to Power button, Wake up Jack, GPi 2 and GPi 3 logic. GPIO Operation – Power/ Standby and Sleep The amplifier power mode is displayed by the colour of the mains switch :- OFF = Sleep or no power is connected Red = Standby... -
Page 24: Operating Your Amplifier: Load Monitoring
Page 24 Operating Your Amplifier: Load Monitoring The amplifier features advanced load monitoring for each channel, the status of each load is reported to the LOAD MONITOR STATUS header. There is an individual output per channel and a global output. These outputs, can provide reporting to 3 party systems or drive an led via 470r –... -
Page 25: Operating Your Amplifier: Dante / Aes67 Network Card
Page 25 Operating Your Amplifier: Switching between analogue & networked audio Interface Configuration Your amplifier may be fitted with a Dante network audio card, which includes 24-bit 96kHz high performance analogue to digital converters, allowing the amplifier to use up 8 channels chosen from a Dante network. -
Page 26: Looking After Your Amplifier: Maintenance
Page 26 Looking after your amplifier: Maintenance These maintenance instructions are for use by qualified personnel only. Before any routine maintenance, please ensure that your amplifier is disconnected from the mains supply! The filter behind the air intake apertures on the front of your amplifier should be cleaned or replaced periodically, e.g. -
Page 27: Performance Of Your Amplifier: Specifications
Page 27 Performance Of Your Amplifier: Specifications Main Specifications Parameter (Units) i-68/i-64 i-38 Output Power per channel (Watts) 2 / 8 channel 2 / 8 Channel 8 Ohms 370/350 330/430 4 Ohms 640/600 460/378 2.7 Ohms 800/600 367/326 2 Ohms 650/600 275/294 Output Power per channel bridged [Crest Factor = 4.8]... -
Page 28: Performance Of Your Amplifier: Power Consumption
Page 28 Power Consumption and Thermal Emissions – i-68 Mains Load Current Draw Thermal Emissions No Sig’l Light Average Heavy No Sig’l Light Average Heavy 0.96 1.67 4.08 3.96 4.08 1.88 3.38 8.17 3.00 5.58 7.92 3.00 6.25 8.17 Power Consumption and Thermal Emissions – i-64 Mains Load Current Draw... - Page 29 Page 29...
