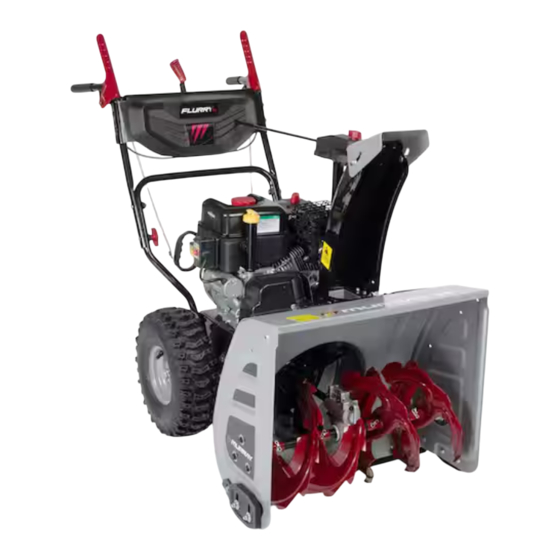

FLURRY XL
SNOW BLOWER
Operator's Manual
Model #MYS2420801
Customer Service Number: 855-693-2582 | www.murray.com

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLURRY XL and is the answer not in the manual?

Questions and answers

kent vanbuecken
February 11, 2025

need new safety key

1 comments:
Mr. Anderson
February 12, 2025

If you need a new safety key for the Murray FLURRY XL, contact Murray customer service at 855-693-2582 or visit www.murray.com.

This answer is automatically generated

Summary of Contents for Murray FLURRY XL

  • Page 1 FLURRY XL SNOW BLOWER Operator’s Manual Model #MYS2420801 Customer Service Number: 855-693-2582 | www.murray.com...
  • Page 2: Table Of Contents

    ......24 Adjusting the Skid Shoes SECTION 1 Should you have any problems with this snow blower that cannot be solved by referencing this manual, please call our customer service at 855-693-2582 or visit www.murray.com ..........4 ..........25 Safety Decals Operating Tips WARNING: SAVE THESE INSTRUCTIONS ........5...
  • Page 3: Important Safety Instructions

    Keep hands and feet away. trailer bed with a plastic liner. Always place containers equipment. Move machine to another area. on the ground, away from your vehicle, before filling. Wait 5 minutes before starting the engine. FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 4 ALWAYS open the outside doors; exhaust • Do not touch engine components because they are warm fumes are dangerous. during use. Risk of burn injuries. • Exercise extreme caution when operating on slopes. FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 5: Assembly

    Snow discharge assembly Fig. 1 Fig. 2C Discharge adjustment lever Control cable Fig. 2A Axle pin Wrench with size 12mm and 13mm 1 Wheel axle Inside hole Outside hole Axle pin Wheel hole FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 6 4. Repeat steps 1-3 to adjust the remaining control cable. Washer Locking knob Control panel assembly Bolt Fig. 4 Connecting lever Speed adjustment handle Connecting base Fig. 3A Auger control cable Self-propel control cable Upper hole Connecting port Fig.3B Cable Bolt FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 7: Prepare The Engine Before Starting

    7. If the oil level is correct, install and tighten the dipstick. Bolt Adjustable skid shoe Wahser Fig. 5A Snow discharge chute Snow discharge support Bolt Fig. 5C Screw Cover R Pin FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 8: Snow Blower Controls

    Fig. 7 Fuel Level - Maximum Do Not Overfill Auger control handle pressed down - engaged Self-drive control handle pressed down - engaged Discharge deflector-up or down Fig. 8 Discharge chute-left or right FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 9 Choke control Primer bulb Safety key Impeller Throttle control Fuel valve Fuel cap Lower handle Power cord receptacle Electric start button Recoil starter handle Auger Wheel Auger housing Adjustable skid shoe Fig. 9 FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 10: Operating The Snow Blower

    Be aware that the normal noise of the snow NOTE: The choke is typically not necessary when you start blower when turned on may make it difficult for you to a warm engine. hear approaching people. FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 11: To Stop The Engine

    3. Push down and grasp the auger control handle towards the body handle to engage the auger and impeller. (Fig.12) 4. Releasing the auger control handle will stop the snow blower. Fig. 11B Recoil starter handle FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 12: To Adjust The Snow Discharge Direction And Height

    Reverse Speed Range: .5 mph - .9 mph Set your desired drive speed and direction at the same time Auger control handle Self-propel control handle by moving the speed adjustment handle right or left. (Fig. 13) FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 13: Adjusting The Skid Shoes

    • Keeping the auger in good condition is a key factor to obtain optimal performance. Replace the auger within a reasonable amount of time as it begins to wear. FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 14: After Use

    Never forcibly use parts or Check shear pin controls that have frozen. Never use an open flame of any sort to thaw frozen parts. Lubricate Check engine oil level Check Fuel level Empty fuel system FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 15: General Maintenance

    Roll auger belt off the engine pulley (a). Fig. 18A c. Pivot the idler pulley to the right (b). Replacement shear pin d. Lift the drive belt off drive pulley (c). FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 16 10.Follow the previous steps in reverse order to reassemble. Fig. 20B Fig. 19C 11.Perform a drive test to confirm everything is in working order. Self-propel belt Bolt Auger belt Shaft Ball bearing Washer FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 17: Engine

    • For off-season storage, the parts mentioned above should be lightly wiped with an oily rag to prevent rust. WARNING: Never touch a rotating auger. FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 18: Storage Instructions

    Snow blower self-propel The drive control cable has too much slack. Adjust the cable tension. function does not work. Friction disc worn out. Replace friction disc. Traction drive belt broken. Replace traction drive belt. FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 19: Technical Data

    20 oz Working height 21" Working width 24" Auger diameter 12" Clearing depth 12" Max. Throwing distance 40 ft Recommend Tire pressure 20-24 psi 180° Snow discharge angle range Net weight 196 lbs FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 20: Disposal

    G. Your purchase receipt must be kept as proof for date of purchase. H. WARRANTY PERIOD: Model Name Model Number Warranty Term FLURRY XL MYS2420801 2 years from the date of purchase FLURRY XL SNOW BLOWER FLURRY XL SNOW BLOWER...
  • Page 21: Manual Del Operador

    SOPLADORA DE NIEVE FLURRY XL Manual del Operador Modelo #MYS2420801 Número de servicio al cliente: 855-693-2582 | www.murray.com...
  • Page 22 Ajuste de los patines SECCIÓN 1 En caso de tener algún problema con esta sopladora de nieve que no se pueda resolver consultando este manual, por favor llame a nuestro servicio al cliente al 855-693-2582 o visite www.murray.com......4 ........25 Calcomanías de seguridad...
  • Page 23: Instrucciones De Seguridad Importantes

    Mueva la máquina a otra área. Espere 5 minutos antes de de plástico. Siempre coloque los recipientes en el suelo, arrancar el motor. lejos de su vehículo, antes de llenarlos. SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 24 • Evite tocar los componentes del motor, ya que pueden estar calientes durante el uso, lo que representa un riesgo • Sea muy cuidadoso al operar en pendientes. de quemaduras. SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 25: Ensamblaje

    Palanca de ajuste de descarga Figura 2A Cable de control Eje de rueda Agujero interno Agujero externo Llave con tamaños 12 mm y 13 mm 1 Pasador de eje Agujero de rueda SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 26 Mango de ajuste de velocidad Base de conexión Figura 3A Cable de cont. De la barrena Figura 3B Cable de control de auto-propulsión Cable Perno Tuerca Agujero superior Puerto de conexión SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 27: Prepare El Motor Antes De Arrancar

    7. Si el nivel de aceite es correcto, instale y ajuste la varilla de medición. Figura 5A Conducto de descarga de nieve Soporte de descarga de nieve Figura 5C Perno Tornillo Cubierta Pasador R SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 28: Controles De La Sopladora De Nieve

    Mango de control de autoimpulsión accionado hacia abajo o explosiones que podrían causar quemaduras graves o la muerte. Figura 8 Deflector de descarga arriba o abajo Canal de descarga izquierda o derecha SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 29 Válvula de combustib le Tapa de combustible Receptáculo del cable de alimentación Barrena Enchufe de arranque eléctrico La rueda Mango de arranque manual Carcasa de la barrena Patines de deslizamiento ajustables Figura 9 SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 30: Operación De La Sopladora De Nieve

    NOTA: El inductor generalmente no es necesario al arrancar dificultar escuchar a las personas que se acercan. un motor caliente. SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 31: Detener El Motor

    áncora hacia la manija del cuerpo para activar el áncora y el impulsor. (Figura 12) 4. Soltar la manija del control del áncora detendrá la sopladora de nieve. Figura 11B Mango de arranque de retroceso SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 32 Establezca su velocidad y dirección de conducción deseada al Mango de control de auto-propulsión mismo tiempo moviendo la mango de ajuste de velocidad hacia la derecha o hacia la izquierda. (Figura 13) SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 33: Ajuste De Los Patines

    • Mantener el áncora en buen estado es un factor clave ajustados a la misma altura en ambos lados. para obtener un rendimiento óptimo. Reemplace el áncora dentro de un tiempo razonable a medida que comience a desgastarse. SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 34: Después Del Uso

    Nunca use una llama abierta de ningún tipo para descongelar partes congeladas. Verificar el nivel de aceite de motor Verificar el nivel de combustible Vaciar el sistema de combustible SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 35: Mantenimiento General

    Gire la polea tensora hacia la derecha (b). Figura 18A d. Levante la correa de transmisión de la polea de transmisión (c). Pernos de corte de repuesto SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 36 Rodamiento de bolas 10 . Siga los pasos anteriores en orden inverso para volver a ensamblar. Correade la barrena Arandela Tuerca 11.Realice una prueba de marcha para confirmar que todo funciona correctamente. SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 37: Motor

    • Para el almacenamiento fuera de temporada, las partes mencionadas anteriormente deben limpiarse ligeramente con un trapo aceitado para evitar la oxidación. ADVERTENCIA: Nunca toque una barrena giratoria en movimiento. SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 38: Instrucciones De Almacenamiento

    Lacorrea de transmisión de la barrena está Ajuste la correa. cuando se suelta la palanca. desajustada. El cable de control de la barrena está Ajuste la tensión del cable. desajustado. SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 39: Datos Técnicos

    Diámetro de la barrena 12" Profundidad de limpieza 12" Presión de neumáticos recomendada 40 pies Distancia máxima de lanzamiento 20-24 psi 180° Rango de ángulo de descarga de nieve Peso neto 196 libras SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
  • Page 40: Desechos

    G. Su recibo de compra debe mantenerse como prueba de la fecha de compra. H. PERIODO DE GARANTÍA: Nombre del modelo Número de modelo Plazo de garantía FLURRY XL MYS2420801 2 años a partir de la fecha de compra SOPLADORA DE NIEVE FLURRY XL SOPLADORA DE NIEVE FLURRY XL...
