Summary of Contents for JEICO JREMO 6L

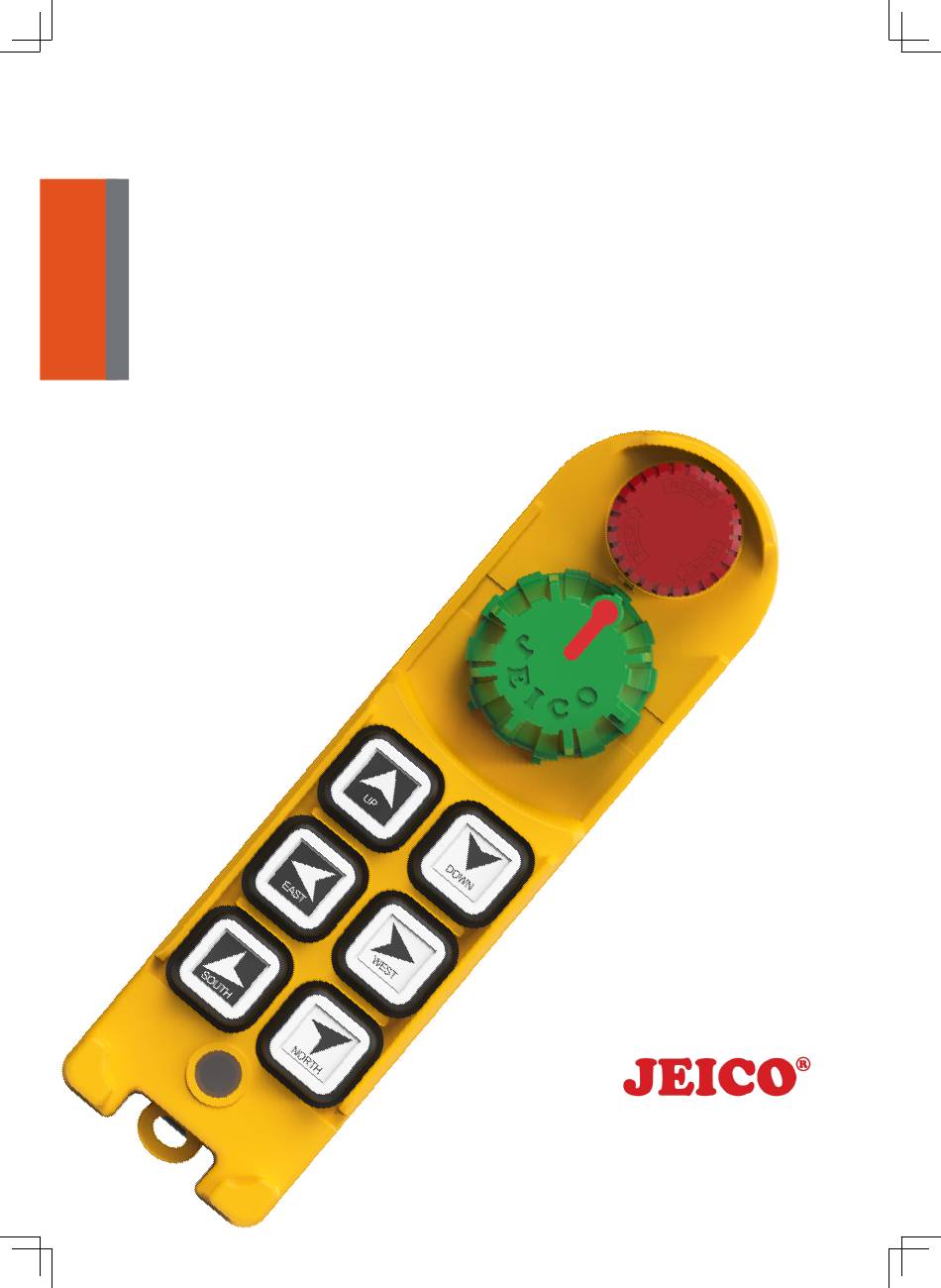

- Page 1 REMOTE CONTROL JREMO 6L O&M MANUAL www.jeico.com...
-
Page 2: Warranty
WARRANTY Remote Controllers must be handled, installed, JEICO® operated, and maintained by (an) authorized and (a) qualified person(s), and Upon the above condition guaranty period from the date of (delivery, installation, inspection) shall be one calendar year. Subject to confirming defects not caused by improper installation,... -
Page 3: Table Of Contents
1-1 COMMON SPECIFICATION… ……………………………… 1-2 TRANSMITTER (Tx)…… ……………………………………… 1-3 RECEIVER (Rx)…… … …………………………………………… 1-4 MODEL SUFFIXING…… ……………………………………… CHAPTER 2. JREMO 6L STANDARD SET … …………… 2-1 STANDARD SET … …………………………………………… 2-2 CONTROL CONTACTS WIRE DIAGRAMS…………………… CHAPTER 3. INSTALLATION & FUNCTION SETTING …... - Page 4 Industrial radio remote controller PRECAUTIONS A. ANNOUNCEMENT ▪ This O&M Manual is for JREMO 6L and the specification in each model is referred to Chapter 1. ▪ Before installation and operation look through this manual and make sure having a full acknowledgement of this manual.
-
Page 5: General Cautions
▪ JREMO 6L uses an insertable battery replacement method. If the battery capacity is low, stop driving and replace all batteries with new AA batteries. -
Page 6: Chapter 1. General Specifications
……DC…=>“A”…Contact,…24VDC/15A -…Size…… :…88…x…152…x…105…mm -…Weight… :…950…g… (Antenna…&…Power/Relay…Cable…Incl.) 1-4 Model Suffixing (No marking at 6 P/B) (Receiver Type, Normally not written) JREMO 6L F A ( RX2 ) Model Type Standard, Suffix 6 Single P/B Model Name DC, 6 Single P/B 4 P/B... -
Page 7: Chapter 2. Jremo 6L Standard Set
Industrial radio remote controller CHAPTER 2. JREMO 6L Standard Set CHAPTER 2. JREMO 6L Standard Set JREMO 6L Standard Set comprises one transmitter and one receiver as following as a set. 2-1 STANDARD SET Single P/B 88 X 152 x 105mm 170 x 48 x 45 mm Approx. -
Page 8: Control Contacts Wire Diagrams
JREMO 6L Industrial radio remote controller CHAPTER2. JREMO 6L Standard Set 2-2 CONTROL CONTACT WIRE DIAGRAM ▪ JREMO 6L A ▪ JREMO 6L M Model Suffixing Standard, 6…Single…P/B DC,…6…Single…P/B Button Single…P/B Double…P/B…(N/A) Volume Control... -
Page 9: Chapter 3. Installation & Function Setting
JREMO 6L Industrial radio remote controller CHAPTER 3. INSTALLATION & FUNCTION SETTING CHAPTER 3. INSTALLATION & FUNCTION SETTING 3-1 CAUTIONS FOR INSTALLATION 1. Follow up all the safety rule of equipment (ex. crane) 2. Switch off the main power of equipment (ex. crane) in a first action. - Page 10 CHAPTER 3. INSTALLATION & FUNCTION SETTING 3-2 HOW TO INSTALL JREMO® SERIES TX 3-2-1. BATTERIES A. Use only rechargeable Li-Polymer Battery, JEICO Pin No. JPTX_SCNE1500 When necessary for replacement as it is already built-in the trasnmitter. B. Precautions 1. Do not try to replace battery unless not in use for a long time or com- pletely Discharged as well as of no use.
- Page 11 JREMO 6L Industrial radio remote controller CHAPTER 3. INSTALLATION & FUNCTION SETTING 2. Place the COPY-RUN s/w nob to COPY position, and Tx Led will blink with green light. 3. Paring (Copying) from Rx to Tx done. 4. Unplug the connector and place the s/w to RUN position.
-
Page 12: Installation Sequence
JREMO 6L Industrial radio remote controller CHAPTER 3. INSTALLATION & FUNCTION SETTING 3-3-2. INSTALLATION SEQUENCE A. Power off equipment(ex. crane). B. Use with the Fixing Plate provided together with Rx for sure installation for absorbing and preventing vibration, shock, etc possibly causing upon operation. -
Page 13: Chapter 4. Maintenance
JREMO 6L Industrial radio remote controller CHAPTER 4. MAINTENANCE CHAPTER 4. MAINTENANCE 4-1 STANDARD OPERATION A. Twist up the EMS button of Tx and do as START ON function procedure preset and find the Rx Main Lamp ON. During normal operation see if the... -
Page 14: Chapter 5. Troubleshooting
JREMO 6L Industrial radio remote controller CHAPTER 5. TROUBLESHOOTING CHAPTER 5. TROUBLESHOOTING 5-1 SELF DIAGNOSIS (LED SIGNAL ERROR MESSAGE) remote controllers have a renewed method of self diagnostic JEICO® troubleshooting against so much complicated and riddled electronic structures, and yet it is easy to check and find causes and measures for any malfunctions may occur. -
Page 15: Troubleshooting
JREMO 6L Industrial radio remote controller CHAPTER 5. TROUBLESHOOTING 5-3 Troubleshooting Appearances Causes Measures 1. Wrong Bat. Direction 1. Place in right pole direction Tx Led 2. Battery Consumed 2. Replace with new batteries No Signal & 3. Old Batteries 3. -
Page 16: Appendix I : 433 Band Frequency Table
JREMO 6L Industrial radio remote controller APPENDIX I : 433 BAND FREQUENCY TABLE APPENDIX I : 433 BAND FREQUENCY TABLE TOTAL NUMBERS : 70 CHANNELS Channel Spacing : 25 Kc CH. NO. CH. NO. 433.050 433.925 433.075 433.950 433.100 433.975 433.125... -
Page 17: Appendix Ii : 447 & 173 & 429 Frequency Table
JREMO 6L Industrial radio remote controller APPENDIX II : 447 & 173& 429 FREQUENCY TABLE APPENDIX II : 447 & 173 & 429 FREQUENCY TABLE TOTATAL NUMBERS : 32 (447 Bands) / 35 (173 Bands) / 40 (429 Bands) CHANNELS Channel Spacing : 12.5Kc... -
Page 18: Appendix Ⅲ - 433 Band Frequency Table
JREMO 6L Industrial radio remote controller APPENDIX Ⅲ : 424 BAND FREQUENCY TABLE APPENDIX Ⅲ : 424 BAND FREQUENCY TABLE TOTATAL NUMBERS : 21 CHANNELS Channel Spacing : 125Kc CH. NO. 424.7000 424.7125 424.7250 424.7375 424.7500 424.7625 424.7750 424.7875 424.8000 424.8125... -
Page 19: Appendix Ⅳ - Optional Accessories
JREMO 6L Industrial radio remote controller APPENDIX Ⅳ : OPTIONAL ACCESSORIES APPENDIX Ⅳ : OPTIONAL ACCESSORIES RAIN/DUST COVER Rx Fixing Bracket Rx Fixing Plate(Option) MAGNET ANTENNA Copier PC Gender & Software Full Cover Silicon & (Water & Oil free) Leather Cover... - Page 20 J Building, 94-1, Choryang-ro, Dong-gu, Busan, 48805, Korea Tel. +82-51-818-7727 Fax. +82-51-804-2150 Email. sales@jeico.com www.jeico.com...
