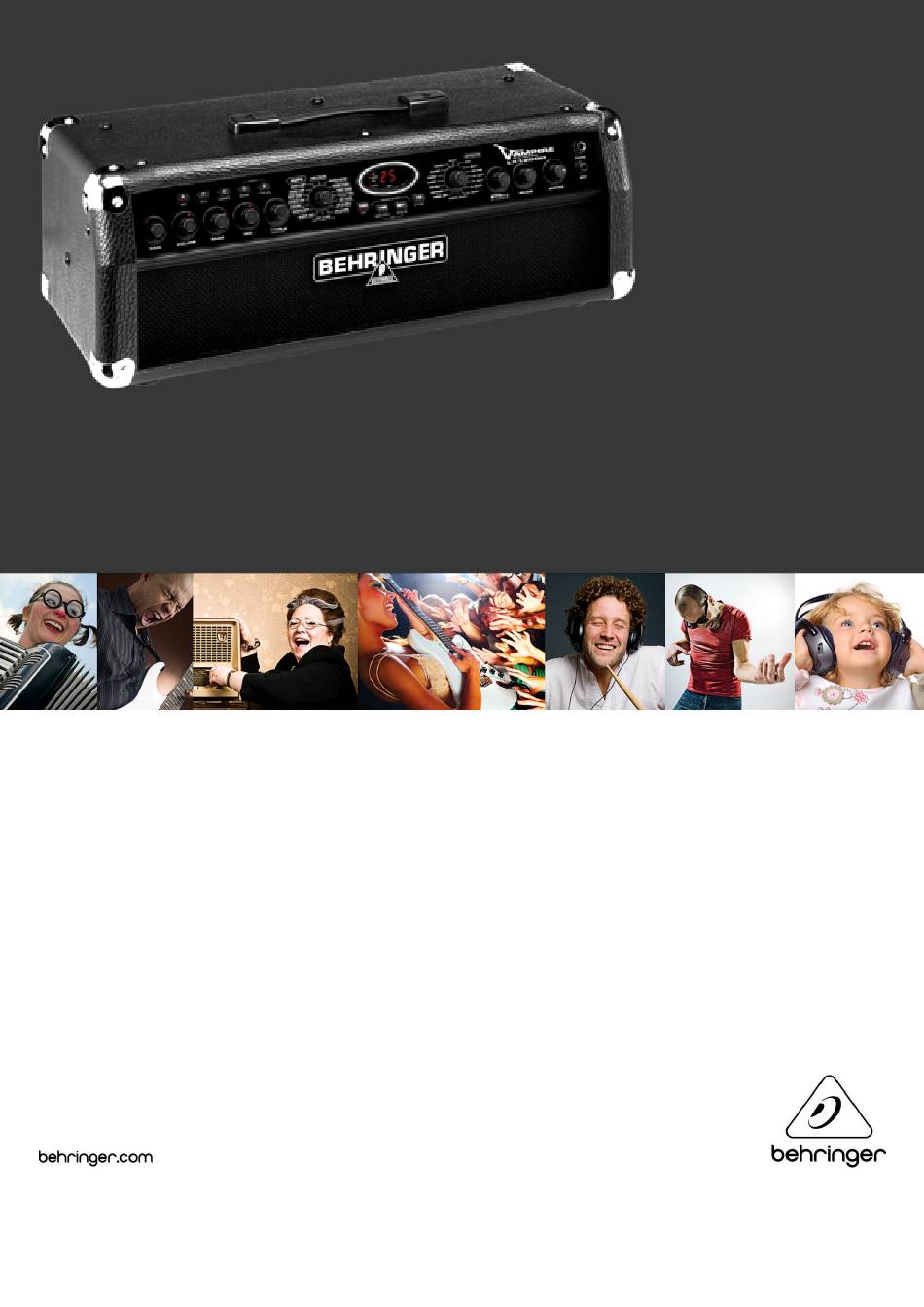

Service Manual
Created: 14 March 2015
V-AMPIRE LX1200H
2 x 60-Watt Digital Guitar Modeling Amplifier Head
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PCB Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Exploded Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
© 2015 MUSIC Group IP Ltd. All third party trademarks mentioned belong to their respective owners and are not affiliated with MUSIC Group IP Ltd. All information (including
drawings and diagrams) contained in this document is the property of MUSIC Group IP Ltd., its subsidiaries or content providers, and is protected by intellectual property (copyright,
trademark, patents, etc) laws, international treaty provisions and other laws. Any unauthorized disclosure, use, application, reproduction, modification, lease, sale, transmission or
any other dealings in the information may violate applicable laws and result in civil and/or (where applicable) criminal liabilities and penalties.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-AMPIRE LX1200H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Behringer V-AMPIRE LX1200H

Summary of Contents for Behringer V-AMPIRE LX1200H

  • Page 1 Service Manual Created: 14 March 2015 V-AMPIRE LX1200H 2 x 60-Watt Digital Guitar Modeling Amplifier Head Specifications ..............2 PCB Schematic .

  • Page 2: Specifications

    - Frequency-compensated stereo Headphone output with adjustable volume - Super-precise and adjustable auto-chromatic tuner - High-quality components and exceptionally rugged construction ensure long life - Conceived and designed by BEHRINGER Germany...
  • Page 3 V-AMPIRE LX1200H PCB Schematic Page 3...
  • Page 4 V-AMPIRE LX1200H PCB Schematic Page 4...
  • Page 5 V-AMPIRE LX1200H PCB Schematic Page 5...
  • Page 6 V-AMPIRE LX1200H PCB Schematic Page 6...
  • Page 7 V-AMPIRE LX1200H PCB Schematic Page 7...

  • Page 8: Parts List

    V-AMPIRE LX1200H Parts List Hi Pcb Assemblies Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC Q05-14301-02465 A05-14301-02465 PCB ASSEMBLY;LX112 LX210 LX1200H;PCB:1;DSP;REV:B;HI;NO:203100 1.0000 PC Q05-14303-02467 A05-14303-02467 PCB ASSEMBLY;LX112 LX210 LX1200H;PCB:3;FRONT;REV:C;HI;NO:223120 1.0000 PC Q05-14304-02468 A05-14304-02468 PCB ASSEMBLY;LX112 LX210 LX1200H;PCB:4;INPUT;REV:C;HI;NO:224120 1.0000 PC...
  • Page 9 V-AMPIRE LX1200H Parts List Cable Quantity Unit S.Sku M.Sku Description Reference Designators Notes 0.3120 M A74-00000-00708 WIRE;RAW FLAT CABLE;UL2651;AWG:28;POLES:8;GRAY;PIN1:RED;PITCH:1mm27 0.2320 M A74-00000-00712 WIRE;RAW FLAT CABLE;UL2651;AWG:28;POLES;12;GRAY;PIN1:RED;PITCH:1mm27 0.2320 M A74-00000-00724 WIRE;RAW FLAT CABLE;UL2651;AWG:28;POLES:24;GRAY;PIN1:RED;PITCH:1mm27 0.0000 PC A74-00020-22712 CABLE;FLAT;P2mm54;LENGTH:220mm;AWG:28;FC2/FD;+10/- 0mm;POLES:12 0.0000 PC A74-00040-20724 CABLE;FLAT;P2mm54;LENGTH:220mm;AWG:28;FC2/FD;+10/- 0mm;POLES:24...

  • Page 10: Circuit Protector

    V-AMPIRE LX1200H Parts List Capacitor Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC CAP E;100uF;10V;PITCH:2mm5;5mm x 11mm;VERTICAL 12.7-15- [P0143:06: {1.0}(C14)] *NOT available in DP 2.0000 PC CAP E;10uF;25V;PITCH:2mm5;5mm x 11mm;VERTICAL 12.7-15-9mm [P0143:06: {2.0}(C1,C19)] *NOT available in DP 1.0000 PC CAP E;100uF;25V;PITCH:2mm5;6mm x 12mm;VERTICAL 12.7-15-...
  • Page 11 V-AMPIRE LX1200H Parts List Coil Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC B33-12206-00520 COIL;RADIAL;22uH;L:1mm91;(CW45-220K) [1: {1.0}(L2)] 3.0000 PC R39-00000-03394 B39-00000-03394 COIL;SMD;BEAD;SMD0805;(BLM21BD751SN1D) [1: {3.0}(L1,L3-L4)] Connector Quantity Unit S.Sku M.Sku Description Reference Designators Notes 3.0000 PC B84-25006-06016 CRIMP TERMINAL;PITCH:3mm96;AWG24-26;A3961T1B-2C 1.0000 PC...
  • Page 12 V-AMPIRE LX1200H Parts List Hardware Quantity Unit S.Sku M.Sku Description Reference Designators Notes 6.0000 PC NAIL;DIA:1mm12;LENGTH:10mm;18-GAUGE (0.49*0.40) *NOT available in DP FINISH;GALVANIZED 50.0000 PC NAIL;CROWN:2mm2;WIDTH:1mm27;THICKNESS:1mm0;LENGTH:25 *NOT available in DP mm;18-GAUGE (0.49*0.40) FINISH;GALVANIZED 16.0000 PC NAIL;STAPLE;CROWN *NOT available in DP 10mm;LEGLENGTH:10mm;WIDTH:1.2mm;THICKNESS:0mm6;FINISH: GALVANIZED 90.0000 PC...
  • Page 13 V-AMPIRE LX1200H Parts List Quantity Unit S.Sku M.Sku Description Reference Designators Notes 6.0000 PC SCREW;M4mm*6mm;HEAD:PAN;INSERT:PHILIPS *NOT available in DP REC.;SURFACE:BLACK/ZINC 1.0000 PC SCREW;M4mm*10mm;HEAD:BINDING;INSERT:PHILIPS *NOT available in DP REC.;SURFACE:SILVER/ZINC 4.0000 PC SCREW;M4mm*16mm;HEAD:BINDING;INSERT:PHILIPS *NOT available in DP REC.;SURFACE:BLACK/ZINC 6.0000 PC SCREW;M4mm*30mm;HEAD:OVAL;INSERT:PHILIPS *NOT available in DP REC.;SURFACE:BLACK/ZINC...
  • Page 14 V-AMPIRE LX1200H Parts List Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC S60-54422-00528 C60-22422-00528 IC;AD/DA;V4220M;SSOP [1: {1.0}(IC1)] 0.0000 PC C60-54422-00528 IC;AD/DA;CS4220;SOP 2.0000 PC S61-55388-61311 C61-55388-61311 IC;POWER AMP;LM3886;T 5.0000 PC C73-00000-29050 IC;OPAMP;SMD;SOP;8;BA4580RF [4: {1.0}(IC7)] 3.0000 PC S73-58007-40514 C73-31007-40514 IC;OPAMP OPAMP;TL074;SOP;...
  • Page 15 V-AMPIRE LX1200H Parts List Metal Part Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC A62-07400-18216 METAL;BOTTOM;FS112G;BLACK;DWG.NO:18216;(R14-GX- FOOTBOTTOM-REVC.DWG ) 1.0000 PC A63-00300-11554 METAL;HEATSINK;P0143;ALU;EXTRUSION;ANODIZING;BLACK;DST.N O:3;DPT.NO:11554;(LX1-112-HEATSINK-REVC.DWG) 1.0000 PC A63-02000-26332 METAL;HEATSINK;P0154;DWG.NO:26332;(LX1PRO-SP-HEATSINK- REVA.DWG) 1.0000 PC Q65-00200-01677 A65-00200-01677 METAL;BELT;GX-SERIES;DST.NO:002;DPT.NO:01677;(R14-MET-BELT- REVB.DWG) 1.0000 PC A65-00300-00287 METAL;PCB HOLDER;LX1-112;DST.NO:003;DPT.NO:00287;(LX1-112- PCBHOLDER01-REVC.DWG)
  • Page 16 V-AMPIRE LX1200H Parts List Plastic Part Quantity Unit S.Sku M.Sku Description Reference Designators Notes 4.0000 PC W51-00300-06264 G51-00300-06264 RUBBER FOOT;ROUND;BIG;DWG.NO:06264;(R14- RUBFOOT_WASHER-REVA.DWG) 1.0000 PC W52-00500-09353 G52-00500-09353 KNOB;SWITCH;UB-S;DST.NO:005;DPT.NO:09353;(UB-S_SWKNOB- REVE.DWG) 1.0000 PC W52-20500-01697 G52-20500-01697 KNOB;POT;BLACK;DWG.NO:01697;(R14-MX-KNB004-REVD.DWG) 1.0000 PC W52-20500-28076 G52-20500-28076 KNOB;POTI;LX1PRO;BLACK;DWG.NO:28076;(LX1PRO-PKNOB01- REVD.DWG) 2.0000 PC...
  • Page 17 V-AMPIRE LX1200H Parts List Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC Y62-00200-00075 I62-00200-00075 KNOB;TACT SWITCH;LX1 PRO;BLACK;B;PRINTED;FILMSET NO:002;DWG.NO:00075;(LX1PRO-TKNOB-WL1-REVD.DWG) 1.0000 PC Y62-00300-00075 I62-00300-00075 KNOB;TACT SWITCH;LX1 PRO;BLACK;C;PRINTED;FILMSET NO:003;DWG.NO:00075;(LX1PRO-TKNOB-WL1-REVD.DWG) 1.0000 PC Y62-00400-00075 I62-00400-00075 KNOB;TACT SWITCH;LX1 PRO;BLACK;D;PRINTED;FILMSET NO:004;DWG.NO:00075;(LX1PRO-TKNOB-WL1-REVD.DWG) 1.0000 PC Y62-00500-00075 I62-00500-00075 KNOB;TACT SWITCH;LX1 PRO;BLACK;E;PRINTED;FILMSET...

  • Page 18: Plug Socket

    V-AMPIRE LX1200H Parts List Plug Socket Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC W61-65208-03288 G61-65208-03288 BOX HEADER;POLES:08;2 ROW;STRAIGHT;PITCH:2mm54;SCM-08S [6: {1.0}(X1)] 1.0000 PC W61-65212-03290 G61-65212-03290 BOX HEADER;POLES:12;2 ROW;STRAIGHT;PITCH:2mm54;SCM-12S [LX1200H:2: {1.0}(X12)] 1.0000 PC G61-65224-03293 BOX HEADER;POLES:24;2 ROW;STRAIGHT;PITCH:2mm54;SCM-24S [1: {1.0}(X1)] 1.0000 PC...

  • Page 19: Power Supply

    V-AMPIRE LX1200H Parts List Power Supply Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC W83-02153-01037 G83-02153-01037 BUTTON-CELL;CAPACITY;215mAh;3V;SPEC.NO:01037;(CR2032) 1.0000 PC Z65-71436-43606 J65-71436-43606 TRAFO;EI-POWER;LX1-112;SA96-269M-3600AF-BEH2-R0;SAA (UK, SAA) 240V;STANDARD SUCCESS;SPEC.NO:43606 1.0000 PC Z65-71437-33052 J65-71437-33052 TRAFO;EI-96;LX1-112;SJ96-330M-2400DF-BEH1-R0;JP (HM) 100V;STANDARD SUCCESS;SPEC.NO:33052 1.0000 PC Z65-71439-31762 J65-71439-31762 TRAFO;EI-96;LX1-112;SD96-330M-2400DF-BEH1-R4;EU...
  • Page 20 V-AMPIRE LX1200H Parts List Resistor Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC RESISTOR;CARBON;0ohm;5%;0W063;SMD603 [2: {1.0}(R17)] *NOT available in DP 1.0000 PC RESISTOR;CARBON;2ohm2;5%;0W063;SMD603 [1: {1.0}(R10)] *NOT available in DP 2.0000 PC RESISTOR;CARBON;47ohm;5%;0W063;SMD603 [4: {2.0}(R17-R18)] *NOT available in DP 1.0000 PC...
  • Page 21 V-AMPIRE LX1200H Parts List Quantity Unit S.Sku M.Sku Description Reference Designators Notes 7.0000 PC RESISTOR;ARRAY;10Kohm;SMD1206;CAY16-103J4 [3: {4.0}(R3-R5,R14)] *NOT available in DP 2.0000 PC RESISTOR;ARRAY;15Kohm;SMD1206;CAY16-153J4 [2: {2.0}(R58-R59)] *NOT available in DP 2.0000 PC RESISTOR;ARRAY;18Kohm;SMD1206;CAY16-183J4 [2: {2.0}(R20,R50)] *NOT available in DP 1.0000 PC RESISTOR;ARRAY;22Kohm;SMD1206;CAY16-223J4...
  • Page 22 V-AMPIRE LX1200H Parts List Cover Quantity Unit S.Sku M.Sku Description Reference Designators Notes 0.6700 YD J11-81370-40465 VINYL COVERING;#62;0.8T;WIDTH:1370mm;COLOR:BLACK;(JIANG- MEN #62/54in) Page 22...

  • Page 23: Exploded Drawing

    V-AMPIRE LX1200H Exploded Drawing Page 23...
