User’s Manual
Version 1.0
April 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-AMPIRE LX1200H and is the answer not in the manual?

Questions and answers

Related Manuals for Behringer V-AMPIRE LX1200H

Summary of Contents for Behringer V-AMPIRE LX1200H

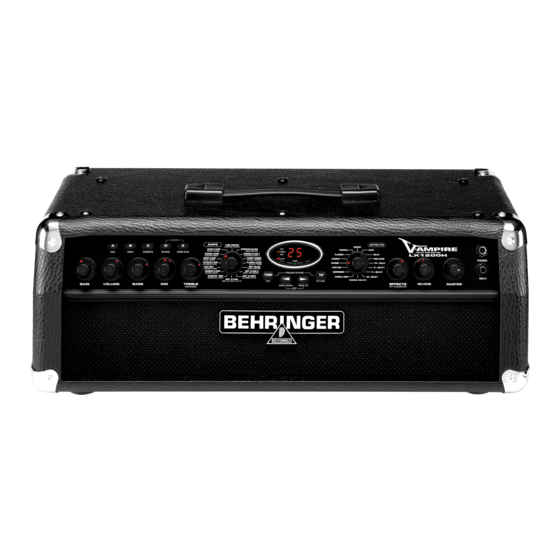

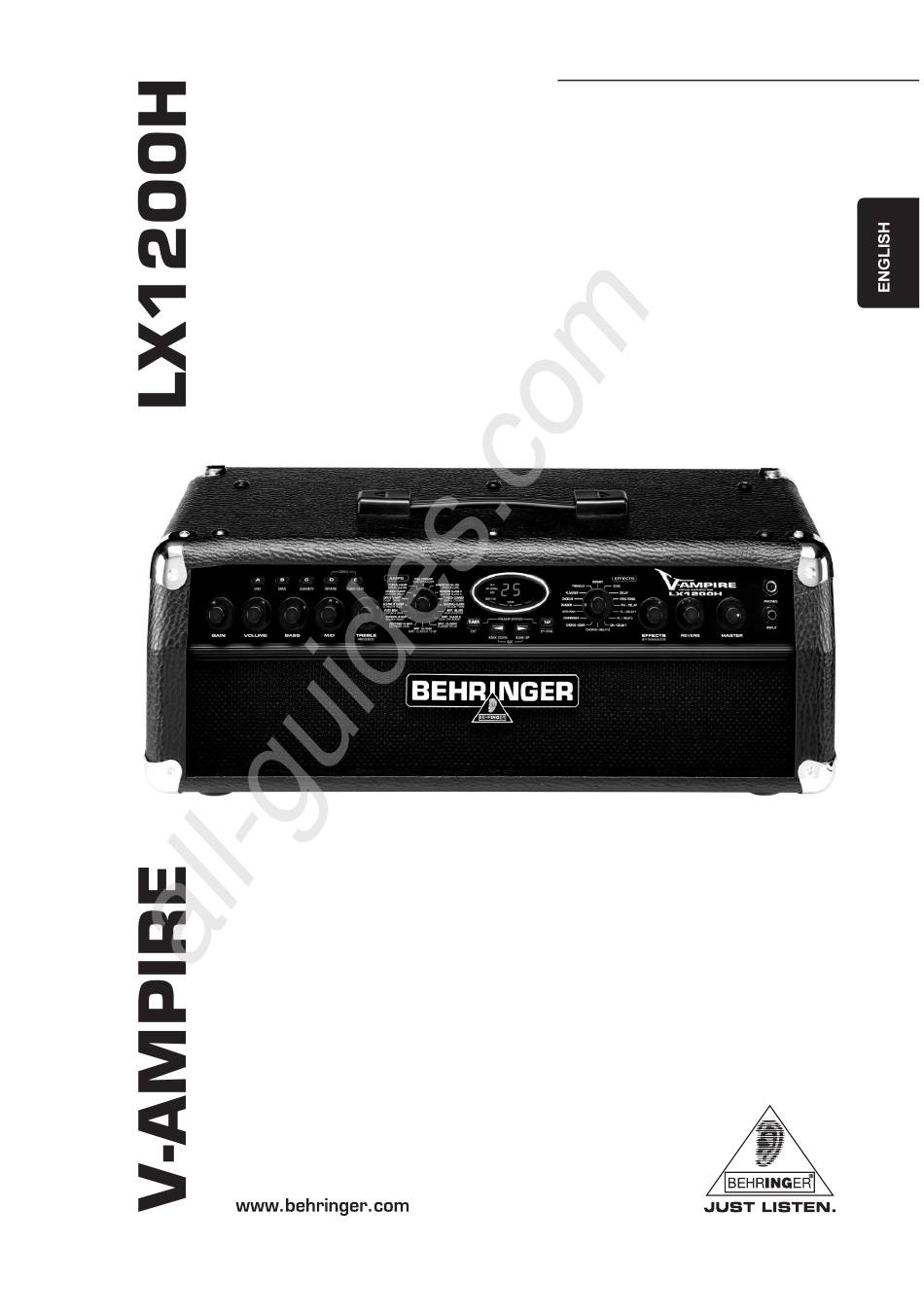

  • Page 1 All manuals and user guides at all-guides.com User’s Manual Version 1.0 April 2004...
  • Page 2 All manuals and user guides at all-guides.com V-AMPIRE LX1200H IMPORTANT SAFETY INSTRUCTIONS...
  • Page 3 All manuals and user guides at all-guides.com V-AMPIRE LX1200H V-AMPIRE Digital 2 x 60-Watt Modeling Guitar Amplifier Head s 32 authentic amp models, 15 speaker cabinet simulations, 16 multi-FX such as noise gate, compressor, wah-wah, modulation effects, delay, reverb etc.

  • Page 4: Table Of Contents

    All manuals and user guides at all-guides.com V-AMPIRE LX1200H FOREWORD TABLE OF CONTENTS 1. INTRODUCTION ............5 2. CONTROL ELEMENTS ..........6 3. OPERATING MODES AND APPLICATIONS ....9 4. PRESETS ..............11 5. AMP/SPEAKER-SIMULATION ........12 6. EFFECTS PROCESSOR ..........14 7.

  • Page 5: Introduction

    All manuals and user guides at all-guides.com V-AMPIRE LX1200H 1.1.1 Serial number 1. INTRODUCTION 1.2 The manual 1.1 ... before you get started 1. INTRODUCTION...

  • Page 6: Control Elements

    All manuals and user guides at all-guides.com V-AMPIRE LX1200H 2. CONTROL ELEMENTS Fig. 2.1: V-AMPIRE’s control elements (front panel) MIDI 2.1 Front panel GAIN VOLUME BASS DRIVE TREBLE CABINETS REVERB AMPS NOISE GATE TUNER BANK DOWN BANK UP 2. CONTROL ELEMENTS...
  • Page 7 All manuals and user guides at all-guides.com V-AMPIRE LX1200H MASTER INPUT PHONES WARNING! Fig. 2.2: V-AMPIRE display DISPLAY EFFECTS REVERB 2. CONTROL ELEMENTS...
  • Page 8 All manuals and user guides at all-guides.com V-AMPIRE LX1200H Fig. 2.3: Control elements of the V-AMPIRE (rear panel) 2.2 Rear panel AUX LEVEL SEND/LINE OUT RETURN/LINE IN MIDI OUT/THRU MIDI IN ANALOG LINE OUTPUTS SERIAL NUMBER FUSE HOLDER/VOLTAGE SELECTOR FOOTSWITCH...

  • Page 9: Operating Modes And Applications

    All manuals and user guides at all-guides.com V-AMPIRE LX1200H 3.2 Live on stage or in a rehearsal room 3. OPERATING MODES AND APPLICATIONS 3.1 Selecting an operating mode in CONFIGURATION mode ƒr…h‡vtÀ‚qr VUQVUTÃG VUQVUTÃS Fig. 3.1: Mono operation at 4 Ohms impedance T‡r…r‚ƒr…h‡v‚...
  • Page 10 All manuals and user guides at all-guides.com V-AMPIRE LX1200H 3.4 Studio recording/recording Fig. 3.3: Standard stereo setup with 2 x 8 Ω impedance (stereo) Fig. 3.4: Expanded recording setup with a multitrack-recorder and a mixing console 3. OPERATING MODES AND EXAMPLES...

  • Page 11: Presets

    All manuals and user guides at all-guides.com V-AMPIRE LX1200H 4.3 Storing presets 4. PRESETS 4.4 Discarding an edited preset/restoring a single factory preset 4.1 Calling up presets 4.5 Restoring all factory presets Fig. 4.1: Calling up presets 4.2 Editing presets...

  • Page 12: Amp/Speaker-Simulation

    All manuals and user guides at all-guides.com V-AMPIRE LX1200H 5. AMP/SPEAKER-SIMULATION 5.1 Amp descriptions Blow by Blow Wired 5. AMP/SPEAKER SIMULATION...
  • Page 13 V-AMPIRE LX1200H Fender, Vox, Marshall, Mesa Boogie, Gibson, Soldano, Matchless, Dumble, Budda, Tweed, Engl, Roland and the names of musicians and groups are registered trademarks belonging to the respective owners and are in no way associated with BEHRINGER. 5. AMP/SPEAKER SIMULATION...

  • Page 14: Effects Processor

    All manuals and user guides at all-guides.com V-AMPIRE LX1200H 5.2 Speaker descriptions €ƒ†Ã Ãà % Æ G‚ˆq†ƒrhxr…Æv€ˆyh‡v‚ #Ñà ÅÃWDIU6B@Ã76TT AMERICAN BLUES Ñà ÅÃVTÃ8G6TTÃ6 MODERN CLASS A ÑÃ'ÅÃWDIU6B@ÃUX@@9 TWEED COMBO Ñà ÅÃUXDIÃ8PH7P CLASSIC CLEAN #Ñà ÅÃWDIU6B@Ã" BRIT. BLUES Ñà ÅÃ7SDUÃ%& BRIT. CLASS A #ÑÃ...
  • Page 15 All manuals and user guides at all-guides.com V-AMPIRE LX1200H ‚  AA 8UT ‡ à I AA 8UT p‚‡…‚yÐv‡uà ssrp‡ U6QÃxr’ p‚‡…‚y U6QÃxr’à q‚ 1 ECHO Feedback Delay Time CC49, val 1 CC54 CC53 CC50+51 2 DELAY Feedback Delay Time...

  • Page 16: Tuner

    All manuals and user guides at all-guides.com V-AMPIRE LX1200H 7. TUNER 7.1 Tuning your guitar 6.3 The separate reverb effect I ‚ i à r … r‰r…iÃU’ƒr Rˆhyv‡’ r ‰ Tiny Room 7.2 Setting reference pitch “A” Small Room Classic room simulation featuring various...

  • Page 17: Installation

    All manuals and user guides at all-guides.com V-AMPIRE LX1200H 8. INSTALLATION 8.1 Mains voltage Fig. 8.2: 1/4" TS connector 8.2 Audio connections Fig. 8.3: 1/4" TRS connector Fig. 8.4: Headphone connector Fig. 8.1: XLR connectors 8. INSTALLATION...

  • Page 18: Specifications

    8.3.1 Sending/receiving MIDI Sysex data Ω Ω BEHRINGER continuously strives to assure the highest quality standards possible. Required modifications may be implemented without prior notice. Technical data and the appearance of the unit may deviate from the above values and/or illustrations.

  • Page 19: Appendix

    All manuals and user guides at all-guides.com V-AMPIRE LX1200H 10. APPENDIX 0,', ,PSOHPHQWDWLRQ &KDUW )XQFWLRQ 7UDQVPLWWHG 5HFHLYHG 5HPDUNV MIDI Channel 1-16 1-16 Mode Note Number Velocity After Touch Pitch Bender Control Change N (request only) Wah Pedal N (request only)

  • Page 20: Warranty
