GREMSY PIXY WS Assembly Manual

Download this manual

DAMPING ASSEMBLY GUIDE

FOR PIXY WS & GPORT

Need help?

Do you have a question about the PIXY WS and is the answer not in the manual?

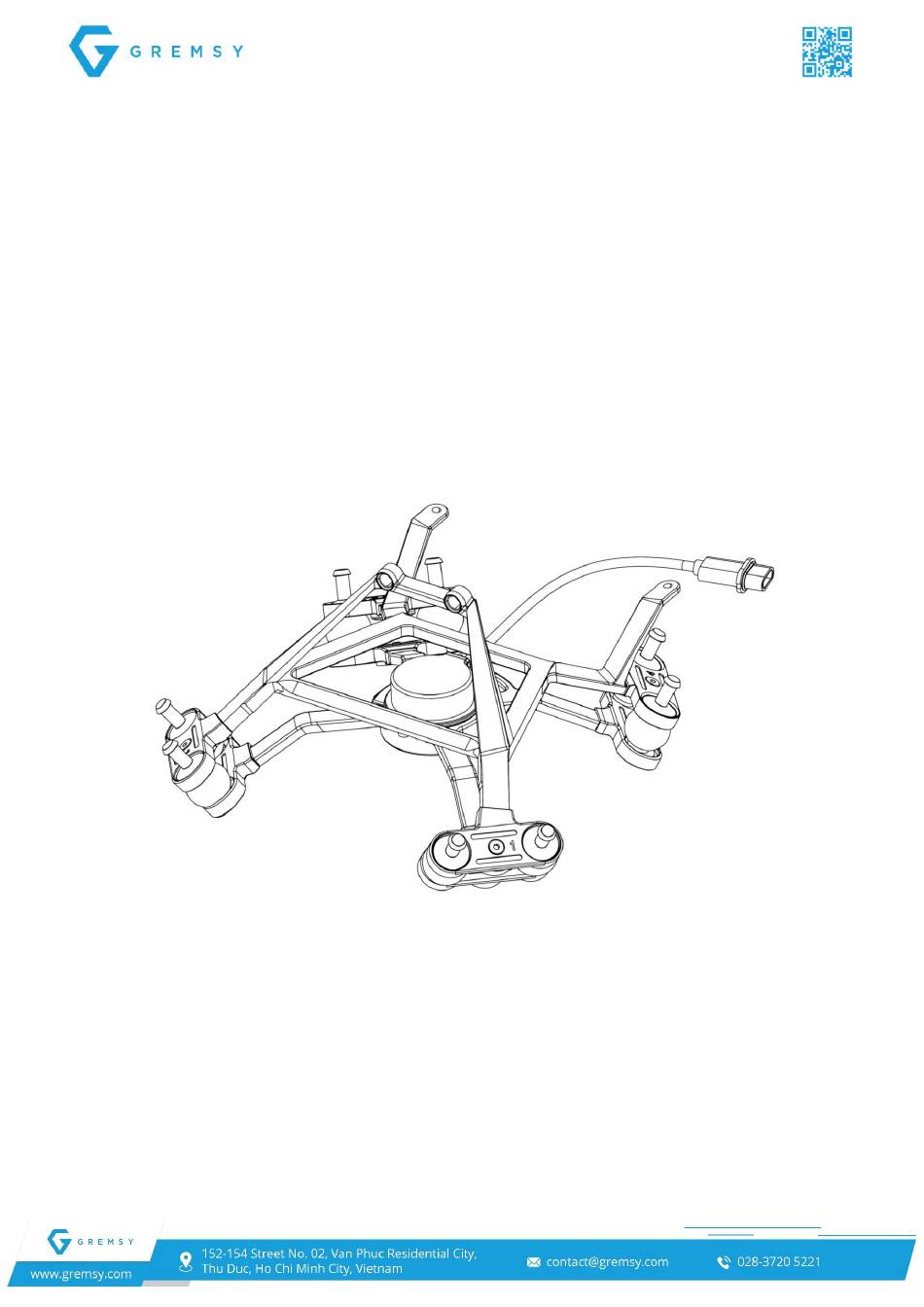

Page 1 DAMPING ASSEMBLY GUIDE FOR PIXY WS & GPORT...
Page 2 *Components required:  DJI - Standard damping on M300 RTK  Gremsy - Damping extension for Pixy WS *What’s in the box of the damping extension? Adapter bundle 1 Adapter bundle 2 Adapter bundle 3 Adapter bundle 4...
Page 3 ASSEMBLY INSTRUCTIONS STEP 1: Separate the standard damping from the M300 RTK Fig 1. The standard damping after separation...
Page 4 STEP 2: Note the marked position of the standard damping as below. STEP 3: Remove silicone balls from the standard damping...
Page 5 STEP 4: Assemble the “adapter bundle 1” into the “position 1” as marked in step 2 Adapter bundle 1...
Page 6 STEP 5: Assemble the “adapter bundle 2” into the “position 2” as marked in step 2 Adapter bundle 2...
Page 7 STEP 6: Assemble the “adapter bundle 3” into the “position 3” as marked in step 2 Adapter bundle 3...
Page 8 STEP 7: Assemble the “adapter bundle 4” into the “position 4” as marked in step 2 Adapter bundle 4...
Page 9 STEP 8: Complete the damping for gPort & Pixy WS STEP 9: Mount the damping on M300 RTK and ready for use with gPort & Pixy WS...
