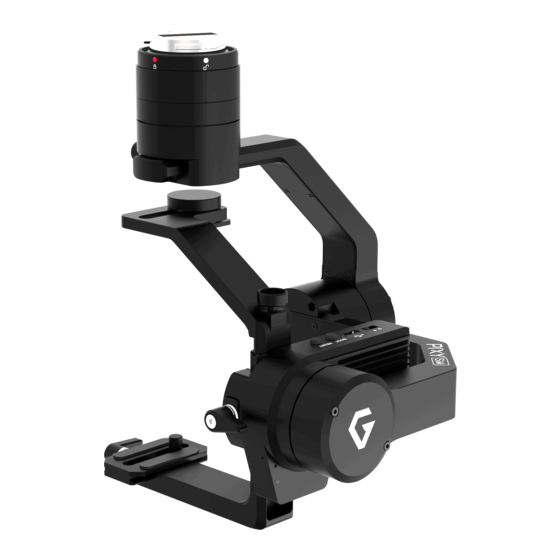

GREMSY PIXY SM User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXY SM and is the answer not in the manual?

Questions and answers

Related Manuals for GREMSY PIXY SM

Summary of Contents for GREMSY PIXY SM

  • Page 2: Revision History

    REVISION HISTORY REVISION DATE DESCRIPTION User Manual June 7 , 2022 LEGEND Notes are used to highlight special operating conditions or steps of a procedure. NOTE Warnings are used to highlight procedures which, if not strictly observed, may result in personal injury or loss of life. WARNING Tips.

  • Page 3: Table Of Contents

    Plug & Play With M300 RTK Fully Compatible With Sony α7R IV Built for Mapping Heated & Temperature Controlled IMU High Performance Gimbal Controller & Image Processor Specifications PIXY SM I/O Connectors Gimbal Connection Gimbal Buttons What’s In The Box Damping Installation Assembly Instructions...
  • Page 4 GIMBAL Operating the Gimbal Gimbal Settings Gimbal Mode Gimbal Pitch Smooth Start/Stop Max Gimbal Pitch Speed Gimbal Yaw Smooth Start/Stop Max Gimbal Yaw Speed Stiffness Tuning General Method Step 01 - Tilt Stiffness Step 02 - Roll Stiffness Step 03 - Pan Stiffness Hold Strength Gain Default Settings...
  • Page 5 IMU SENSOR Gypro Calibration Accelerometter Calibration INSTALLING SOFTWARE Steps To Connect UPGRADING FIRMWARE Devices Checking Required Apps Required Firmware How To Upgrade Gimbal Firmware How To Upgrade SoM Firmware TROUBLESHOOTING Checking Payload Checking The Camera Live View Checking Memory Card Checking...

  • Page 6: Getting Started

    GETTING STARTED...

  • Page 7: Introduction

    GETTING STARTED INTRODUCTION Pixy SM is specially designed to integrate the leading professional M300 RTK drone with the full-frame mirrorless Sony α7R IV camera, offering an unbeatable combination for precision aerial mapping missions. U S E R M A N U A L...

  • Page 8: Features

    M300 RTK is quick and straightforward within seconds. Just mount, connect, and you’re ready to go. FULLY COMPATIBLE WITH Pixy SM is optimized to work perfectly with SONYΑ7RIV the 61-megapixel Sony α7R IV, ensuring that you can get high-resolution imagery for creating accurate maps.

  • Page 9: Heated & Temperature Controlled Imu

    0.2 degrees Celsius accuracy. HIGH PERFORMANCE Advanced gimbal controller designed and GIMBAL CONTROLLER & made by Gremsy based on a 32 bit high IMAGE PROCESSOR performance ARM microprocessor providing fast response and accurate calculation. Combine with high performance data &...

  • Page 10: Specifications

    GETTING STARTED SPECIFICATIONS Product Name Pixy SM System Type 3-Axis Digital Gyro-Stabilized Weight 1.26lbs/ 570g Payload Sony α7R IV Lens Compatibility SEL28F20 | SEL35F28Z | SEL55F18Z Construction All Aluminum Operating Power 13.7V Working Current Static Current 400mA @13.7V Dynamic Current 800mA @13.7V Locked Motor Current Max 4.0A @13.7V...

  • Page 11: Pixy Sm I/O Connectors

    GETTING STARTED PIXY SM I/O CONNECTORS GIMBAL CONNECTION HDMI: to output video from the camera (not available now) Connector type: micro HDMI CTRL: CTRL is a serial protocol (UART) port which is used to interface with Sony A7R IV via USB C port.
  • Page 12 GETTING STARTED Device Switch: to switch between gimbal and SOM for firmware upgrading Connector type: 2 level switch Micro SD card: to insert the micro SD card for Geo data storage Connector type: Micro SD card Note: Recommend SD Card 256GB, at least 90MB/s read/write speed U S E R M A N U A L...

  • Page 13: Gimbal Buttons

    GETTING STARTED GIMBAL BUTTONS Boot: to push the firmware during upgrading process Reset: to reset the system in case needed U S E R M A N U A L...

  • Page 14: What's In The Box

    GETTING STARTED WHAT’S IN THE BOX 1. PIXY SM GIMBAL 2. PIXY SM ACCESSORIES A. Camera Plate E. Pixy SM Damping Extension B. Hot-shoe F. Allen Key 2.0mm C. USB Camera Cable G. Camera Screws D. USB Type-C Cable H. M3 x 8 Screws...

  • Page 15: Damping Installation

    - DJI Standard damping on M300 RTK to interface with computer or upgrade firmware. - Gremsy - Damping extension for Pixy SM What’s in the box of the damping extension? U S E R M A N U A L...

  • Page 16: Assembly Instructions

    GETTING STARTED ASSEMBLY INSTRUCTIONS STEP 01: Separate the standard damping from the M300 RTK. Fig 1. The standard damping after separation U S E R M A N U A L...
  • Page 17 GETTING STARTED STEP 02: Note the marked position of the standard damping as below. STEP 03: Remove silicone balls from the standard damping. U S E R M A N U A L...
  • Page 18 GETTING STARTED STEP 04: Assemble the “F adapter bundles” into the “position 1 & 2” as marked in step 2. F adapter bundles U S E R M A N U A L...
  • Page 19 GETTING STARTED STEP 05: Assemble the “B adapter bundles” into the “position 3 & 4” as marked in step 2. B adapter bundles U S E R M A N U A L...
  • Page 20 GETTING STARTED STEP 06: Complete the damping for Pixy SM. STEP07: Mount the damping on M300 RTK and ready for use with Pixy SM. U S E R M A N U A L...

  • Page 21: Quick Release Connection

    STEP 2: When the mark on the top aligned with the unlock icon on the bottom, the PIXY SM can be detached from the top part of the Quick Release. U S E R M A N U A L...

  • Page 22: Status Led Indicator

    GETTING STARTED STATUS LED INDICATOR STATE LED STATUS DESCRIPTION Blink Video Transmission Error Solid System Error (Camera, Gimbal, SOM) Blink Camera Not Found Blink System Ready Blink Gimbal Not Found DISPLAY REAL- TIME DATA STATE SYSTEM STATUS DESCRIPTION READY Ready to flight ERROR System Error (Camera, Gimbal) CAM ERROR...

  • Page 23: Working Operation

    WORKING PIXY SM ONLY SUPPORTS BOTTOM MOUNT OPERATION OPERATION At this time, the Pixy SM only support for the bottom mount beneath the DJI M300 RTK The gimbal must be used with right damping extension and rubber type. U S E R M A N U A L...

  • Page 24: Balancing

    BALANCING To achieve the best performance from the PIXY SM, proper balancing is necessary. Accurate balance is critical in shots where the gimbal will be subjected to extreme movements or accelerations. There are 3 axes that need to be precisely...

  • Page 25: Mounting The Camera

    BALANCING MOUNTING Use a 1/4”-20 screw to secure the camera to the camera tray, then put the camera to the tilt cage THE CAMERA U S E R M A N U A L...

  • Page 26: Tilt Axis Front-Back Balance

    BALANCING TILT AXIS FRONT- When the proper front-back balance is achieved, the camera will stay level when you remove your hands. BACK BALANCE 1. Loosen the thumbscrew 2. Tighten the thumbscrew and knob underneath the camera tray and the to lock the camera and camera tray in top bar knob.

  • Page 27: Tilt Axis Vertical Balance

    BALANCING TILT AXIS VERTICAL When the proper vertical balance is achieved, you can rotate the camera in any angle and it will stay at that position. BALANCE 1. Rotate the tilt axis so that the 2. Tighten the thumbscrew. lens is pointing upward.Then, loosen Sometimes, the vertical balance vertical adjustment thumbscrew, could not be achieved, the front-back...

  • Page 28: Roll Axis Balance

    BALANCING ROLL AXIS BALANCE When the proper left-right roll balance is achieved, the camera will stay level when you remove your hands. 1. Loosen the thumbscrew 2. Tighten the thumbscrew to lock the underneath the roll bar, then gently roll bar in position. slide the roll bar left or right until roll axis remains level.

  • Page 29: Pan Axis Balance

    BALANCING PAN AXIS BALANCE Tilt the gimbal about 20 degrees from the verticality, identify if the gimbal is front heavy or back heavy. Slide the pan axis slider until the camera does not swing. 1. Loosen the thumbscrew, then 2. Tighten the thumbscrew to make gently slide the pan axis slider sure pan axis slider is locked in backward/forward until it doesn’t...

  • Page 30: Gimbal

    GIMBAL After the camera is balanced on the Gremsy, it’s time to configure some parameters for best performance.

  • Page 31: Operating The Gimbal

    GIMBAL OPERATING The DJI Smart Controller Enterprise supports two buttons: Gimbal Pan Control Dial and Gimbal Pitch Control Dial to control Pan and Pitch of the Gimbal. Besides, THE GIMBAL widgets are shown on the screens. LEFT DIAL (18) controls the gimbal Pitch. Turn the dial to the right and the gimbal will shift to point upwards.
  • Page 32 GIMBAL Gimbal Orientation Adjustment (2): Tab to select the Gimbal Orientation Adjustment as Gimbal Recenter, Recenter Gimbal Yaw, Gimbal Yaw Downward or Gimbal Downward. U S E R M A N U A L...

  • Page 33: Gimbal Settings

    GIMBAL GIMBAL SETTINGS Here you can adjust how your gimbal moves GIMBAL MODE There are 2 choices Free-mode and Follow mode Follow Mode: Yaw will follow the aircraft heading. Free Mode: Meaning the gimbal can move independently of the aircraft’s yaw.

  • Page 34: Gimbal Yaw Smooth Start/Stop

    GIMBAL GIMBAL YAW SMOOTH Smooth factor for gimbal controller, using to smooth control. The larger the value, START/STOP the smaller the acceleration of gimbal. MAX GIMBAL YAW SPEED This controls the max speed percentage at which the gimbal yaw. A higher value means a faster-moving gimbal and lower value means a slower gimbal.

  • Page 35: Stiffness Tuning

    GIMBAL STIFFNESS TUNING Stiffness setting has a significant impact on the performance of the gimbal. This setting adjusts the degrees the gimbal tries to correct for unwanted camera movement and hold the camera stable. The higher you can run the setting without vibration or oscillation, the better it is. GENERAL METHOD Start with a low value of 20 for all axes, then turn the motors ON.

  • Page 36: Hold Strength

    GIMBAL HOLD STRENGTH For heavy cameras, it’s suggested to increase hold strength for each axis by around 10% than the default values. This option is only recommended for advanced users GAIN Defines how fast each axis will return to commanded position. To reload default expert settings just press “Default”...

  • Page 37: Filter

    GIMBAL FILTER The purpose of the filters is to eliminate noise and vibration due to structural resonances in the camera, lens, or gimbal. Setting the filters too high or too low can cause signal disturbances that can reduce the overall stabilization. GYPRO FILTER Defines the strength of the filter applied to Gyro sensor output.

  • Page 38: Others Gimbal Parameters

    GIMBAL OTHERS GIMBAL PARAMETERS SPEED Defines how fast camera will follow the movement. SMOOTH Smooth out the camera movement by adjusting this parameter. The higher the value is the smoother camera moves but at the expense of more delay in following the movements.

  • Page 39: Imu Sensor

    IMU SENSOR The IMU sensor used in the PIXY SM is a combination of a high precision 3 axis gyroscope sensor and a 3 axis accelerometer sensor. IMU board is being heated where the temperature inside is controlled around 50°C with 0.2°C accuracy. Thanks to this feature, gyro calibration is no longer required in most situations.

  • Page 40: Gypro Calibration

    (below -20C or above 50C) please re-calibrate the gyro. CALIB AT STARTUP: this feature is not available on the PIXY SM After Gyro Calibration, Gyro Offset X, Y, Z will change to a new value depending on the temperature.

  • Page 41: Accelerometter Calibration

    IMU SENSOR ACCELEROMETTER Do not use this function, please contact Gremsy Support Engineers. Accelerometer sensor was calibrated properly at the factory to achieve CALIBRATION accurate horizon level with special and precise equipment. Users do WARNING not need to do this unless it’s required for troubleshooting.

  • Page 42: Installing Software

    INSTALLING SOFTWARE Desktop software Download at: www.gremsy.com -> Support -> Product Support -> Pixy SM USING USB CONNECTION Make sure the Silab USB driver is already installed. The driver can be found at: www.gremsy.com -> Support -> Product Support -> Pixy SM...

  • Page 43: Steps To Connect

    INSTALLING SOFTWARE STEPS TO CONNECT 1 - Power ON the PIXY SM. 2 - Connect USB cable from gimbal controller to Mac/PC. 3 - Run the gTuneDesktop software. 4 - On Connection Tab, select the Serial option. 5 - Select the correct COM port in the list.

  • Page 44: Upgrading Firmware

    UPGRADING FIRMWARE Only USB connection allows upgrading firmware. Refer to Section “01. GETTING STARTED” for USB connection. Make sure Silab USB driver is already installed. The driver can be found at: www.gremsy.com -> supports -> product support NOTE...

  • Page 45: Devices Checking

    UPGRADING FIRMWARE DEVICES CHECKING U S E R M A N U A L...

  • Page 46: Required Apps

    To connect gimbal & flash gimbal firmware. Download at: https://github.com/Gremsy/gTuneDesktop REQUIRED FIRMWARE Firmware for SoM: Choose the latest Pixy SM firmware for SoM. Download at: https://github.com/Gremsy/PixySM300_SoM_Firmware/releases/ tag/1.0.0 Firmware for the gimbal: Choose the latest version of the gimbal.

  • Page 47: How To Upgrade

    UPGRADING FIRMWARE HOW TO UPGRADE 01 - Mount the Pixy SM to DJI M300. GIMBAL FIRMWARE 02 - Power on the aircraft. 03 - Connect USB cable from gPort to Mac/PC. 04 - Run the gTune Desktop Software. 05 - In the software, select “Serial” option on “CONNECTION” tab.

  • Page 48: How To Upgrade Som Firmware

    UPGRADING FIRMWARE HOW TO UPGRADE 01. Switch the button on SOM to “P”. SOM FIRMWARE 02. Open the Gremsy Flash tool then choose “PIXY SM”. U S E R M A N U A L...
  • Page 49 UPGRADING FIRMWARE 03. Choose “OPEN FILE” and browse the right firmware file. 04. On the SOM, do the steps below Press Reset and Boot button simultaneously Release Reset Release Boot U S E R M A N U A L...
  • Page 50 05. On Gremsy Flash Tools, click “CHECK DEVICE” to check device status. Connection successfully will show as below: 06. Finally, click “FLASH PIXY SM” and wait for the process to complete ( normally take 3 – 5 minutes) U S E R M A N U A L...

  • Page 51: Troubleshooting

    TROUBLESHOOTING Find more at: www.gremsy.com -> supports -> product support -> Pixy SM NOTE...

  • Page 52: Checking

    TROUBLESHOOTING CHECKING PAYLOAD CHECKING Payload information will appear on the bottom right of the screen. THE CAMERA LIVE VIEW Check the live view on the remote controller. CHECKING U S E R M A N U A L...

  • Page 53: Memory Card Checking

    TROUBLESHOOTING MEMORY CARD CHECKING When the Memory Card is not inserted, the Remote Controller’s screen will display the icon (marked yellow) in the picture. U S E R M A N U A L...
  • Page 54 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTION System Error Camera, Gimbal are damaged Check each component. Camera Not Found Connection is loose Check the USB-C connection. Check Sony camera control is set. Gimbal Not Found Gimbal Error Connect to gTune software to check the error status of the gimbal.
