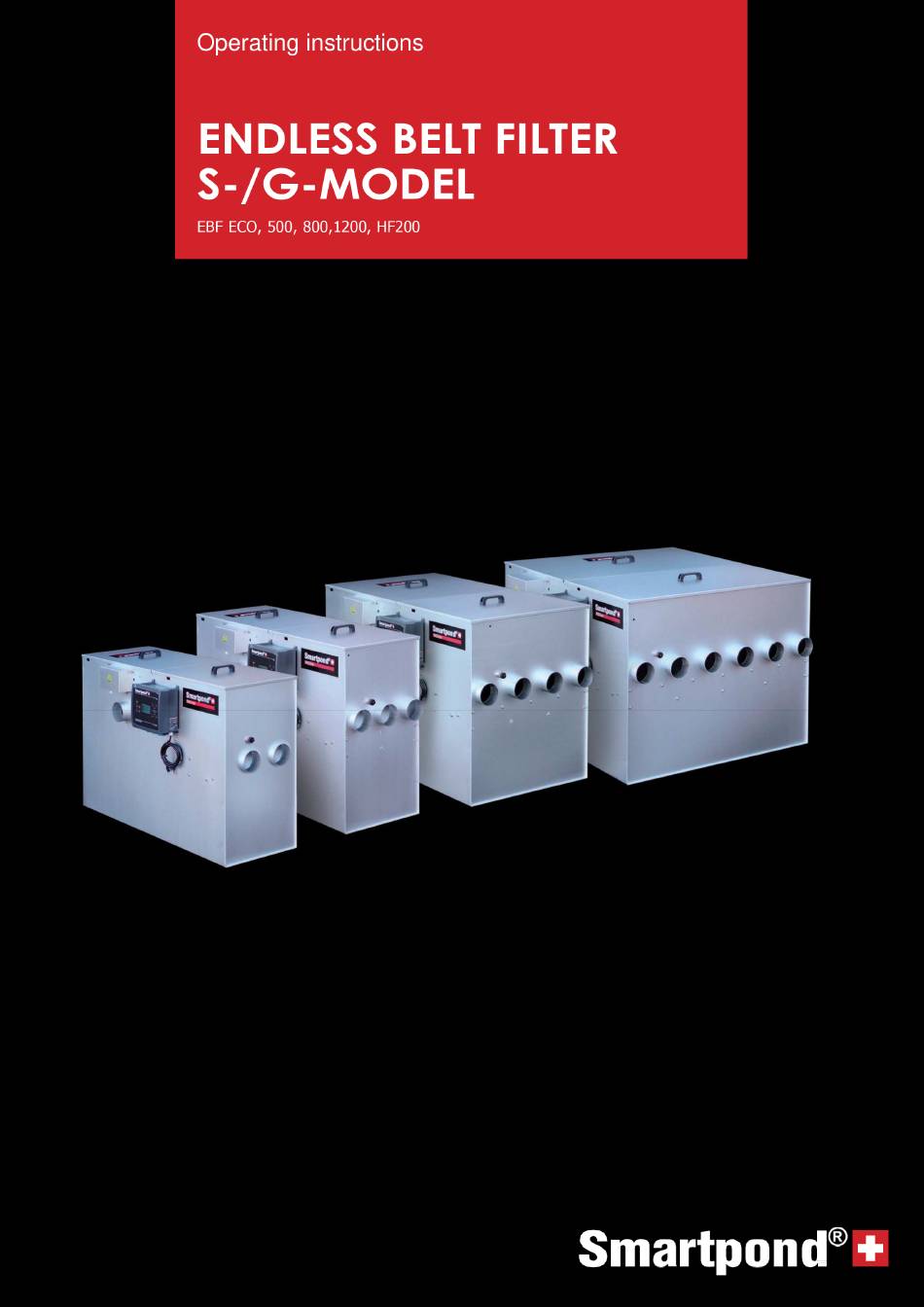

Smartpond EBF ECO Operating Instructions Manual

Endless belt filter

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EBF ECO and is the answer not in the manual?

Questions and answers

Summary of Contents for Smartpond EBF ECO

  • Page 2: Table Of Contents

    PROline Operating instructions Inhaltsverzeichnis Read first - Pre-information ........................2 Symbols and terms used ........................4 Responsibilities ............................ Technical data ............................6 Dimensions inlets and outlets ......................Models ..............................6 Electrical supply line ..........................6 Installation ............................. 7 Delivery form ............................7 Mechanical installation ........................
  • Page 3: Read First - Pre-Information

    In addition, you will find further information and useful tips on our website www.smartpond.swiss. Here you can also see technical drawings, films on the function and technical innovations etc. These Operating Instructions (BA) provide the installer of the system, the...
  • Page 4 PROline Disassembly Any disassembly or removal of a Smartpond® filter system may only be per- formed by an authorized Smartpond® dealer, qualified personnel or with their approval/instructions. Safety Before working on the system, disconnect the power cable from the mains.
  • Page 5: Symbols And Terms Used

    Text or description concerning the S model S-Modell (Gravity version) Annex Complete Smartpond®Filter system as described in this manual. Warranty For warranty claims it is imperative that the system is left unchanged in its original condition and verifiably protected from direct weather influences (sunlight / rain), especially frost-proof, as well as levelled and installed over its entire surface.
  • Page 6: Responsibilities

    Responsibility Only competent persons may carry out the following work: Installation Connection of the electrical components Adjusting the electrical components all maintenance work Manufacturer Name Smartpond GmbH Street Friedrichsfehner Straße 21 Place 26188 Edewecht Country Deutschland Contact www.smartpond.swiss...
  • Page 7: Technical Data

    The gravity version is suitable for koi and pond owners who have bottom drains and/or floats installed in the pond. The pond water flows through large pipes directly into the Smartpond® filter. The cleaned water is pumped back into the pond by means of a pump-pe.
  • Page 8: Installation

    PROline Installation Delivery form The systems are delivered pre-assembled. The unused tank lead-throughs can be closed from the inside with silicone and the supplied discs. (see picture) Observe or carry out points 3.2 and 3.3 for preparation for commissioning. Mechanical installation The filter as well as the accessories must be protected against direct weather influences such as sun, wind, rain and cold.
  • Page 9: Filter Outlets (Water Outlet)

    Filter outlets (Water outlet) Filter outputs Smartpond® endless band filters are supplied with adhesive tank fittings for use in the outlet openings (corresponding to the number of 110mm outlets). These must be inserted prior to installation of the filter (please note the in- structions below!).
  • Page 10: Safety Overflow

    PROline 3.2.4 Safety overflow Function If for some reason the dirty filter belt is not transported any further, the water level in the filter module rises and the pond water passes over the upper edge of the (non-visible) bio-divider plate into the dirty water drain. 3.2.5 Belt adjustment The PROline now has an integrated belt regulation, with which a possible...
  • Page 11: Individual

    T-exit pipe to the pond (not included in delivery) The height from the floor to the middle of the T-branch should be set to approx. 45- 50cm for EBF or 30-35cm for EBF ECO. Operating instructions EBF PROline Seite 10 von 28 03/2020...
  • Page 12 PROline Overflow pipe An additional overflow pipe (G-piping; included in the scope of delivery of the G-model) is installed in the filter. This serves as an overflow protection and has a height of 65cm above the floor, in case the filter basket in the bio-tub should become clogged with dirt.
  • Page 13: Electrical Installation

    PROline Installation Electrical installation Before performing any work on the filter, the mains plug must be discon- Warning nected for safety reasons. Your PROline Filter is a "Plug & Play" system. This means that after connect- ing the lines for the various inputs and outputs (these are disconnected for the dispatch of the system), only the mains plug has to be plugged into a socket protected by an RCD and the system is ready for operation.
  • Page 14: Connection Of The Electrical Terminals

    PROline Installation Taking into account point 3.3 (weather conditions), the control unit can also be installed at any other location. The cable length of outputs and inputs is 5 m, which must be taken into account accordingly. If required, extension cables can be ordered so that the control unit can be Note installed max.
  • Page 15: Commissioning

    PROline Installation Refill Valve Output for switching the solenoid valve if the "Refill" option is ordered. The solenoid valve is used for automatic refilling of the pond water according to the selected program. Belt Drive Power output 24V for the belt drive of the endless belt filter. After the plug is inserted into the socket, it is secured with a bayonet lock.
  • Page 16: Connecting The Level Sensors

    PROline Installation To be able to guarantee all safety functions, the pond pump pen and pressure Note rinsing pump, as well as the submersible UV-C if an option is available, must be plugged directly into the control box. Connecting the level sensors Depending on the type of filter purchased, the level sensor is located in the filter chamber (G model), or in the bio-camber (S model).
  • Page 17: Functionality

    PROline Functionality Functionality After switching on the control unit, the filter is already ready for use and the filtering of your pond begins. No further settings are necessary. The zero line is decisive for the settings and values of the level sensors. This is located 12cm below the upper edge of the filter (see corresponding sticker) and ideally corresponds to the upper edge of the pond level in the S-version.
  • Page 18: Operating Elements Control Proline

    PROline Functionality Operating elements Control PROline For extended functionality and various possible adaptations there is a key- board on the controller: 4.1.1 Left keypad On the left side is the keyboard block for direct control of the individual func- tions Clean/Reset This can be used to trigger a complete manual cleaning cycle.
  • Page 19: Right Keyboard Block

    The following operating modes are available: Emergency operation If the level sensor fails, the Smartpond® filter can be run in emergency mode. In this mode, the flushing times are carried out over a fixed cycle - independ- ent of the water level.
  • Page 20: Rinsing Process (Autom. Mode)

    4.2.2 Protection belt drive Current monitoring The Smartpond® endless belt filter is equipped with an automatic current monitoring system. This measures the current consumption of the drive motor and limits the maximum permissible current increase. Belt drive fault After reaching the maximum current for the belt drive, it is switched off.
  • Page 21: Dry/Overflow Protection System (Optional)

    PROline Functionality RESET of the fault After pressing the "Clean/Reset" button, the fault is reset and the system con- tinues running in normal mode. 4.2.3 Dry / overflow protection system (optional) With the PROline endless belt filter, the dry/overflow protection is always au- tomatically active.
  • Page 22: Integrated Tauch-Uv-C (Optional)

    The filter is additionally equipped with a UV-C cut-off, when the filter is pur- chased with a submersible UV-C. Connection The Smartpond® Immersion UV-C is connected to the control box at socket Option The plug for shutdown is plugged into socket L5 (see chapter Connections).
  • Page 23: Maintenance And Servicing

    PROline Maintenance and servicing Maintenance and servicing Our filters are technical installations that require regular maintenance. A basic cleaning must be carried out once a year (or more often, if necessary directly depending on of the load). This includes above all: - Cleaning the filter belt (see chapter 5.1) - Cleaning or changing the fine filter (see chapter 5.3) - Changing the sealing lip...
  • Page 24: Change Filter Band

    PROline Maintenance and servicing If a narrow strip of dirt forms on the filter belt in the direction of travel, this may be caused by a dirty belt flushing nozzle. In this case, please clean the affected nozzle (see section 5.5 Cleaning the belt flushing nozzle). According to the manufacturer, the filter band can be injected and rinsed with the following cleaning agents.
  • Page 25: Clean Fine Filter And Pressure Pump

    PROline Maintenance and servicing (1) Lateral opening (4) Connecting wire (2) Blue quick lock (3) Etikett Connecting wire Remove the connecting wire (4) of the belt laterally through the opening (1). remove (Do not pull out the tape yet) Pull in new band Thoroughly clean the closure and connect the quick release side of the old strap, where the label (3 - if present) is located, to the closure of the new strap (see "Connecting the strap"...
  • Page 26: Cleaning The Level Float

    PROline Maintenance and servicing Fine filter After the booster pump there is another fine filter which retains all particles larger than 1/10mm. This double safety means that the spray nozzles can hardly clog up any more. The fine filter (black Y-filter) has an end cap at the end which can be un- screwed for backwashing the fine filter.
  • Page 27: Cleaning The Tape Rinsing Nozzle

    (see picture). Exchange / Warranty Only original spare parts from Smartpond® should be used. In the event of improper installation, especially if the difference between the installation height of the S-filter and the water level of the pond is not ob- served, the manufacturer will not accept any liability for resulting damage.
  • Page 28: Further Notes

    In the sense of § 6 para. 1 sentence 1, § 17 para. 1 and ElekroG in connection with the notice of loan from the Federal Environment Agency dated 06.07.2005, Smartpond® filters are registered under the type of equipment listed below: WEEE-Reg.Nr.
  • Page 29: Ec - Declaration Of Conformity

    PROline General additions EG – Declaration of conformity Manufacturer: Smartpond GmbH Friedrichsfehner Str. 21 26188 Edewecht Tel.: +49 (0)4486 930 027 Device type Endless belt filter with transport and filter belt and internal high-pressure pump Used guidelines Machinery Directive 2006/42/EC...
