SECTION 592-811-200
Check
Power On/Off
Terminal Control
Switches
Stop-Alarm/Reset
Switch
Data Set Simulation
Page 8
Revised, April 1973

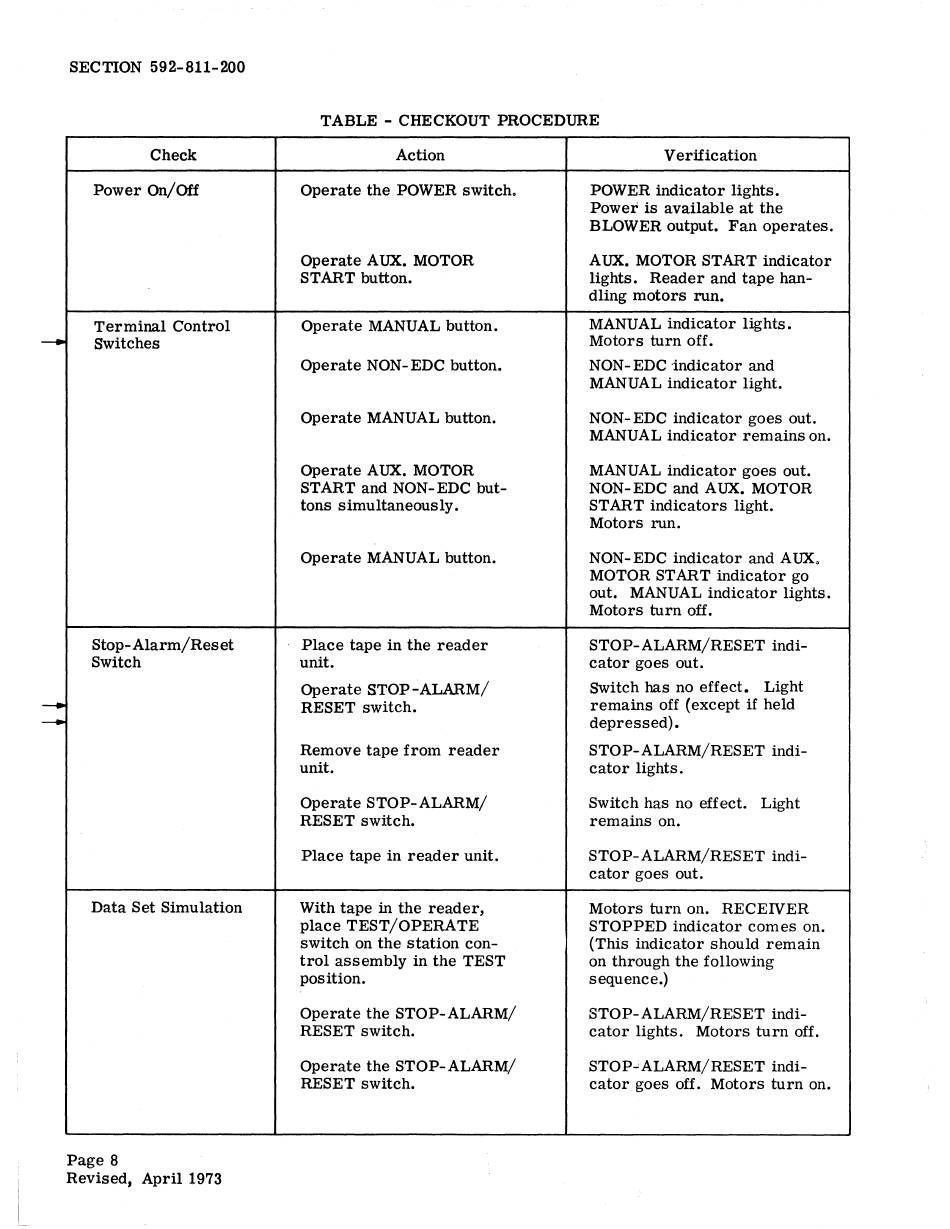

TABLE - CHECKOUT PROCEDURE
Action
Operate the POWER switch.
Operate AUX. MOTOR
START button.
Operate MANUAL button.
Operate NON-EDC button.
Operate MANUAL button.
Operate AUX. MOTOR
START and NON-EDC but-
tons simultaneously.
Operate MANUAL button.
Place tape in the reader
unit.
Operate STOP_:ALARM/
RESET switch.
Remove tape from reader
unit.
Operate STOP-ALARM/
RESET switch.
Place tape in reader unit.
With tape in the reader,
place TEST/OPERATE
switch on the station con-
trol assembly in the TEST
position.
Operate the STOP-ALARM/
RESET switch.
Operate the STOP-ALARM/
RESET switch.
Verification
POWER indicator lights.
Power is available at the
BLOWER output. Fan operates.
AUX. MOTOR START indicator
lights. Reader and tape han-
dling motors run.
MANUAL indicator lights.
Motors turn off.
NON- EDC "indicator and
MANUAL indicator light.
NON-EDC indicator goes out.
MANUAL indicator remains on.
MANUAL indicator goes out.
NON-EDC and AUX. MOTOR
ST ART indicators light.
Motors run.
NON-EDC indicator and
AUX.
MOTOR START indicator go
out. MANUAL indicator lights.
Motors turn off.
STOP-ALARM/RESET indi-
cator goes out.
Switch has no effect. Light
remains off ( except if held
depressed).
STOP-ALARM/RESET indi-
cator lights.
Switch has no effect. Light
remains on.
STOP-ALARM/RESET indi-
cator goes out.
Motors turn on. RECEIVER
STOPPED indicator comes on.
(This indicator should remain
on through the following
sequence.)
STOP-ALARM/RESET indi-
cator lights. Motors turn off.
STOP...JALARM/RESET indi-
cator goes off. Motors turn on.
