SECTION 592-811-200
POWE
R
RECEIVER
STOPPE
D
S
TO
P/ ...... LARM
RESET
r
[
I
~
NOtHOC
UNAITNO
M.IINUAt
hUX..
MOTOR
START
~
)
)
\
)
)
"
\
';
,
l
,,
'.)
~
I
'1

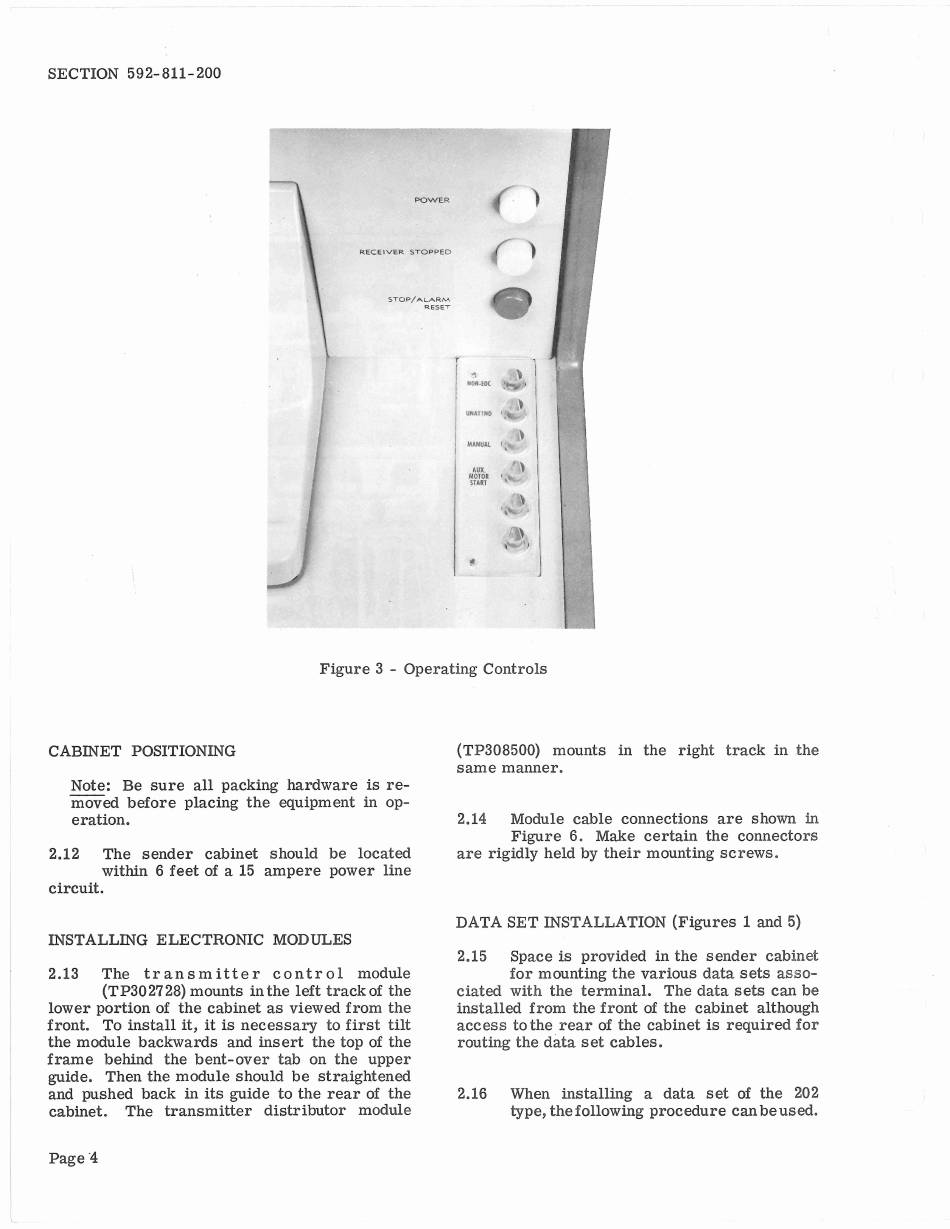

Figure 3 - Operating Controls
CABINET POSITIONING
Note: Be sure all packing hardware
is re-
moved before placing the equipment in op-
eration.
2.12
The sender
cabinet
should be located
within 6 feet of a 15 ampere
power line
circuit.
INSTALLING
ELECTRONIC
MODULES
2.13
The
transmitter
control
module
(TP302728) mounts in the left track of the
lower portion of the cabinet as viewed from the
front.
To install it, it is necessary
to first
tilt
the module backwards
and insert
the
top
of the
frame
behind the bent-over
tab on the
upper
guide.
Then the module should be straightened
and pushed back in its guide to the rear of the
cabinet.
The transmitter
distributor
module
Page4
(TP308500)
mounts
in the right
track in the
same manner.
2.14
Module cable connections
are shown
in
Figure 6
.
Make certain
the connecto
rs
are
rigidly
held by
their
mounting screws
.
DATA SET INSTALLATION
(Figures
1
and 5)
2.15
Space is provided
in the sender
cab
inet
for mounting the various
data
sets
asso-
ciated with
the
terminal.
The
data
sets
can be
installed
from the front
of
the
cabinet although
access to
the rear
of
the
cabinet is
required for
routing the data set
cables.
2.16
When
installing
a data set of
the 202
type, the following procedure
can
be used
.
Advertisement
