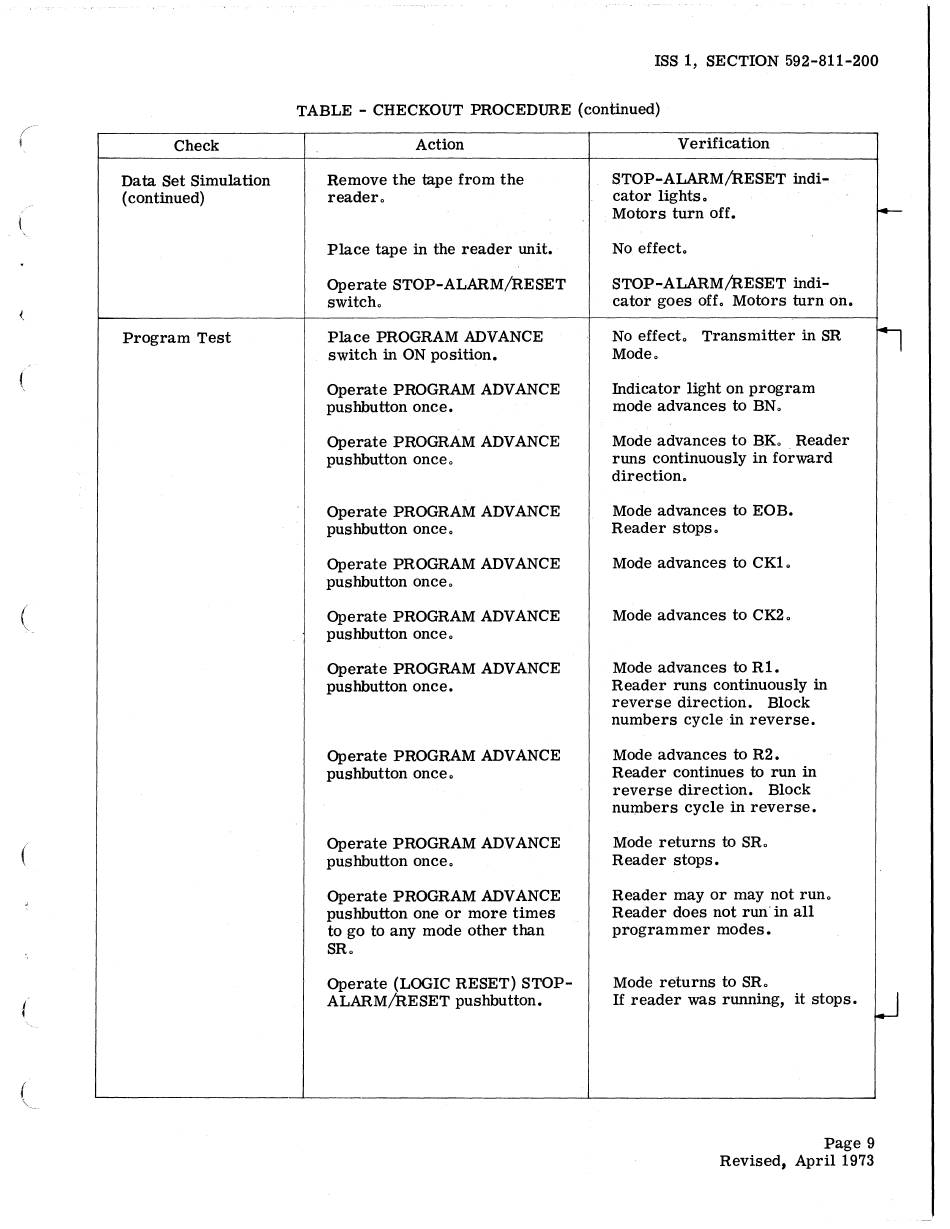

AT&T DATASPEED 4A Installation And Checkout Manual page 10

(
(
Check
Data Set Simulation
( continued)
Program Test
ISS 1, SECTION 592-811-200
TABLE - CHECKOUT PROCEDURE (continued)
Action
Remove the tape from the
reader.
Place tape in the reader unit.
Operate STOP-ALARM/RESET
switch.
Place PROGRAM ADVANCE
switch in ON position.
Operate PROGRAM ADVANCE
pushbutton once.
Operate PROGRAM ADVANCE
pushbutton once.
Operate PROGRAM ADVANCE
pushbutton once.
Operate PROGRAM ADVANCE
pushbutton once.
Operate PROGRAM ADVANCE
pushbutton once.
Operate PROGRAM ADVANCE
pushbutton once.
Operate PROGRAM ADVANCE
pushbutton once.
Operate PROGRAM ADVANCE
pushbutton once.
Operate PROGRAM ADVANCE
pushbutton one or more times
to go to any mode other than
SR.
Operate (LOGIC RESET) STOP-
ALARM/RESET pushbutton.
Verification
STOP-ALARM/RESET indi-
cator lights.
Motors turn off.
No effect.
STOP-ALARM/RESET indi-
cator goes off. Motors turn on.
No effect. Transmitter in SR
Mode.
Indicator light on program
mode advances to BN.
Mode advances to BK. Reader
runs continuously in forward
direction.
Mode advances to EOB.
Reader stops.
Mode advances to CKl.
Mode advances to CK2.
Mode advances to Rl.
Reader runs continuously in
reverse direction. Block
numbers cycle in reverse.
Mode advances to R2.
Reader continues to run in
reverse direction. Block
numbers cycle in reverse.
Mode returns to SR.
Reader stops.
Reader may or may not run.
Reader does not run· in all
programmer modes.
Mode returns to SR.
-
7
If
reader was running, it stops.
..J
Page 9
Revised, April 1973
