TGSM2
User manual
GSM alarm with remote control.

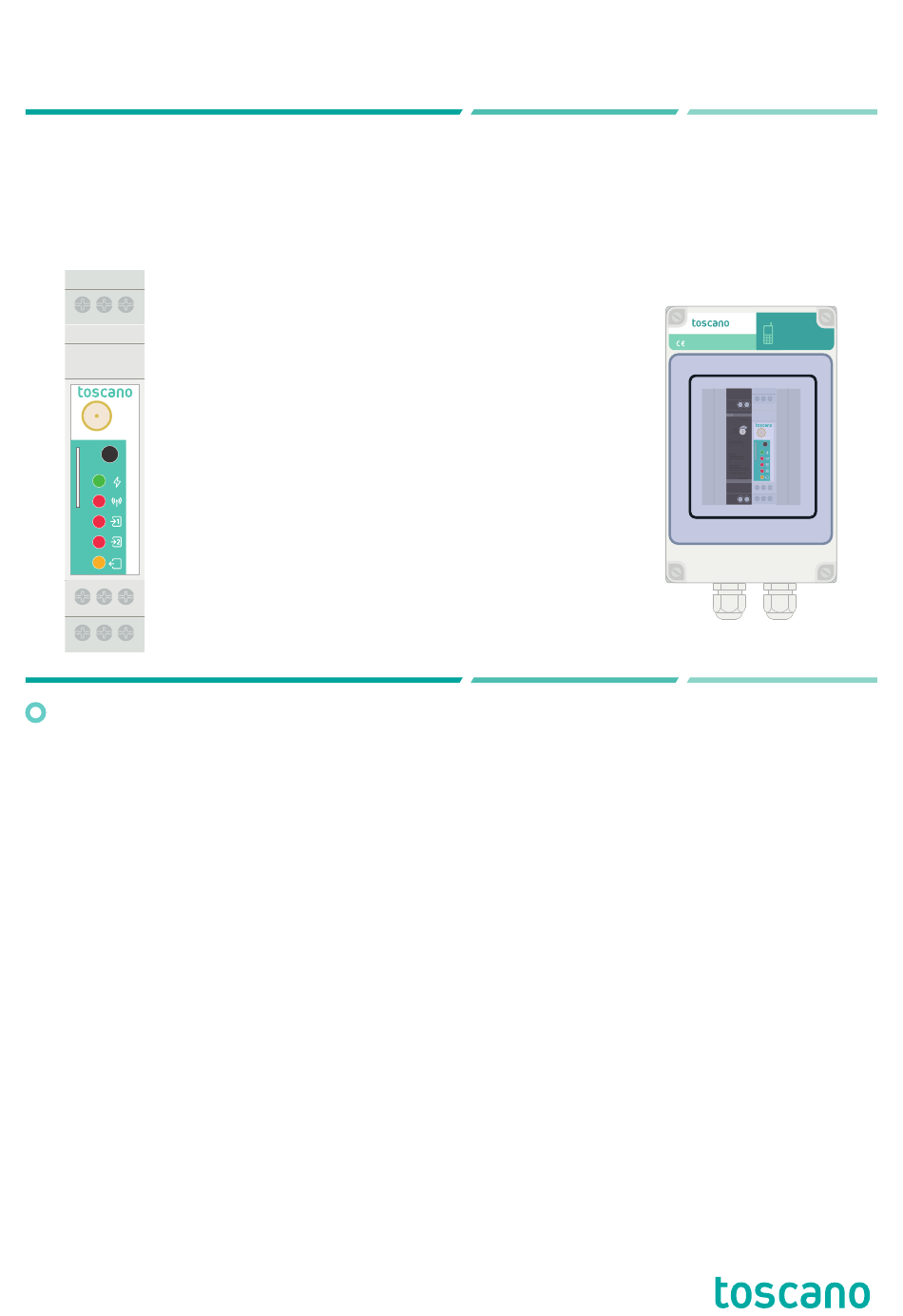

TGSM2 module
TGSM2
WARNINGS
This manual contains necessary information regarding personal safety as well as for the prevention of material damage.
Information for your personal safety is highlighted with a warning triangle; information to avoid only material damage
is not marked with a warning triangle. According to the degree of danger, the instructions are represented, from greater
to lesser danger, as follows. DANGER It means that failure to take adequate preventive measures will result in death or
serious bodily injury. WARNING It means that failure to take adequate preventive measures can result in death or serious
bodily injury. CAUTION with a warning triangle means that if appropriate preventive measures are not taken, personal
injury may occur. CAUTION no warning triangle means that if appropriate preventive measures are not taken, material
damage may occur. ATTENTION means that an undesired result or state may occur if the corresponding safety instruc-
tion is not observed. If there are several levels of danger, the most stringent safety instruction is always used in each
case. If a safety setpoint with a warning triangle alerts to possible personal injury, the same setpoint may also contain
a warning about possible material damage. Qualifi ed personnel The product/system described in this documentation
may only be operated or handled by qualifi ed personnel for the intended purpose and in compliance with the relevant
documentation, in particular the safety instructions and warnings contained herein. Due to their training and experience,
qualifi ed personnel are able to recognise risks resulting from the handling or manipulation of these products/systems
and to avoid possible dangers. Intended use or Toscano products. Consider the following: WARNING Toscano's products
should only be used for the application situations foreseen in the catalogue and the associated technical documentation.
If third-party products and components are used, they must be recommended or approved by Toscano. The correct
and safe operation of the products requires that they have been transported, stored, installed, assembled, handled and
maintained correctly. The permitted environmental conditions must be respected. The instructions and warnings in the
associated documentation must also be followed. Trademarks All names are trademarks of Toscano Linea Electronica.
Other names and designations contained herein may be trademarks whose use by third parties for their own purposes
may violate the rights of their owners. Disclaimer We have checked the contents of this publication for compliance with
the hardware and software described. However, as it is impossible to exclude deviations, we cannot be held responsible
for full compliance. The contents of this publication are periodically reviewed; if necessary, possible corrections are
included in the next edition.
Ed.4.22
GSM-BOX panel
GSM-BOX
+V
-V
Vo
Adj.
TGSM2
TGSM2
10.8~13.8 V
Max. 1.25 A
Max. 15Watt
INPUT
100~400VAC
0.5 A
50/60Hz
OUTPUT
12V
1.25A
Terminal torque 4,4 Lb-in
L
N
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TGSM2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for toscano TGSM2

  • Page 1 If third-party products and components are used, they must be recommended or approved by Toscano. The correct and safe operation of the products requires that they have been transported, stored, installed, assembled, handled and maintained correctly.
  • Page 3: Table Of Contents

    CONTENTS 1. CONNECTIONS ................... 02 2. LED SIGNALS ....................03 2.1 External energy supply 2.2 General status 2.3 Input 1 and 2 2.3 Output 3. BUTTON FUNCTION ..................06 3.1 Coverage levels 4. CONFIGURATION VIA SMS MESSAGES ............08 • Change password •...
  • Page 4: Control Connections

    1.CONNECTIONS TGSM2 module POWER OPTIONS 9-24 VAC 12-36 VDC GSM-BOX panel Adj. TGSM2 10.8~13.8 V Max. 1.25 A Max. 15Watt INPUT 100~400VAC 0.5 A 50/60Hz OUTPUT 1.25A Terminal torque 4,4 Lb-in 100 - 240 VAC Supply the panel as shown in the diagram...
  • Page 5: Led Signals

    Switched off This LED will light up When there is a change in the This LED will switch off when your TGSM2 is status of the external power when there is an external receiving external power. supply, the LED will fl ash for 10 power failure.
  • Page 6: General Status

    2.2. General status The flash pattern of this LED identifies the operating status of the equipment. TGSM2 TGSM2 TGSM2 TGSM2 General error No connection Connected Communicating If you the It blinks every It blinks every It blinks very light stays on...
  • Page 7: Output

    This output can be activated and deactivated by: - SMS message. - the front button. - bluetooth connection (optional). Pressing the button momentarily changes the status of the output. TGSM2 TGSM2 Switched off Switched on When the output is deactivated.
  • Page 8: Button Operation

    3.BUTTON OPERATION On your TGSM2 the button is multi-functional and will allow you to change the output status or modify different operating options according to the duration of pressing. A short press (less than three seconds) will change the output status. If you keep it pressed for more than three...
  • Page 9 3.1. Network coverage level TGSM2 TGSM2 TGSM2 TGSM2 TGSM2 Medium Very low High Excellent Factory configuration: To clear all stored settings and reset your unit to its factory default, you must hold the button down while your unit is being powered up. For example, you can...
  • Page 10: Configuration Via Sms Messages

    To change password, it should be understood that CCCC represents the current device password and NNNN the new password. Once the SMS has been sent, the TGSM2 will reply with the new password. !0000,P,1234 Optionally you can indicate the language of the messages, adding...
  • Page 11 Add an authorised phone number. The <alarms> are optional, if they are not added all the alarms for that phone number will be TGSM2 activated. If you want to activate only some alarms, you can indi- cate which ones provided that they are separated by commas (,)
  • Page 12 User: !cccc,h E Status, O Output, I1 Input 1 alarm, TGSM2: E Status, O Output, I1 Input 1 alarm, I2 Input 2 alarm, S I2 Input 2 alarm, Power Supply Alarm, L Phone list, Mx Change of alarm message, S Power Supply Alarm, L Phone list, C Add phone, D Delete phone.
  • Page 13 OUTPUT DEACTIVATION message: !CCCC,O,OFF Disconnects the output, replying with a message indicating the general status of your TGSM2, (same as when sending the status TGSM2 message). Example: User: !1234,O,OFF !1234,O,OFF TGSM2: Toscano TGSM2, Output deactivated Toscano TGSM2, Output deacti- vated...
  • Page 14 !1234,I2,ON Example: User: !1234,I2,ON OK,I2,ON TGSM2: OK,I2,ON Input 2 Deactivated Mensaje de texto TGSM2 Input 2 ALARM DEACTIVATION message: !CCCC,I2,OFF Disables the alarm at input 2 using the phone from which the message is sent. Replies with a message containing the activated alarms for the phone from which the message is sent.
  • Page 15 Mensaje de texto Message to change the alarm messages: !CCCC,Mx,<message> * In the field <message> you must enter the message you want the TGSM2 to send when any of the alarms are detected and to indicate the general status of the device.
  • Page 16 Mensaje de texto TGSM2: Toscano TGSM2, 2034, your balance is €5.46 Notes: If when sending any message you include * at the end of the message, TGSM2 will perform the action indicated in the message but will not return any confirmation...
  • Page 17: Alarm Messages

    Text message TGSM2 Input 1 or input 2 deactivation message When input 1 or input 2 changes from active to inactive , the TGSM2 module will send an SMS indicating so, accompanied by the time at which it occurred. Toscano TGSM2,...
  • Page 18: Interrupted Power Supply

    Text message TGSM2 Established power supply When the power supply returns to normal, the TGSM2 module will send an SMS indicating so, along with the time of the event. Example: TGSM2: Toscano TGSM2, 05:10 Power supply restored Toscano TGSM2,...
  • Page 19: Door Opening Mode

    6.DOOR OPENING MODE: TGSM2 can be confi gured as an opening device for doors or gates with up to 91 authorised telephone numbers, so that when a call is received from one of these telephone numbers, the output will be momentarily connected to drive a door or gate opening motor. The duration of the opening pulse is confi gurable through sms messages or through the confi guration app.
  • Page 20 You can type more numbers separated by commas (,) and TGSM2 they will be added to the list of authorised numbers. Example: User: !1234,A,678876678 TGSM2: OK,A,678876678 !1234,A, 678876678 OK,A, It will add the phone number 678876678 to the list of phones 678876678 authorised to open the door.
  • Page 21: Pulse-Counting Mode

    TGSM2: OK,F1,ON,50,Pulse limit I1 exceeded Mensaje de texto When the count reaches 50 pulses the unit will send the message: TGSM2: Toscano TGSM2, 08:35, 50, Pulse limit I1 exceeded You can check the number of accounts you have registered by Toscano TGSM2, requesting a status message.
  • Page 22: Quick Message Guide

    Input 2 activation alarm. Input 2 activated Input 2 deactivation alarm. Input 2 deactivated Power failure alarm. Power failure Power Restoration Alarm Power supply restored Output activation message. Active output Inactive output Exit deactivation message. Toscano GSM2 Message identifying your TGSM2...
  • Page 23 Door Opening Mode Messages ACTION !CCCC,G,ON Activates door opening mode !CCCC,G,OFF Deactivates door opening mode !CCCC,A,<Telephone> Add a phone number to the authorised list !CCCC,B,<Telephone> Remove a phone number from the authorised list !CCCC,T,<time> Pulse duration when opening the door Response Messages MEANING FULL MEMORY...
  • Page 24: Technical Characteristics

    3.7V/500mAh Relay output NO 5A, 250VAC / 30VDC Operating temperature -10...+50ºC External Antenna Connector Antenna cable length Direct connection (TGSM2) // 2 metres (GSM-BOX) Indicators External power supply (green) Network (Red) Input 1 (Red) Input 2 (Red) Output (Yellow) Protection level...
  • Page 25: Gsm-Box Panel

    10.GSM-BOX PANEL GSM-BOX is a compact and complete alarm and remote control system via GSM. It consists of a waterproof modular box with IP65 protection, a 12V/1.25A power supply and our TGSM2 module. The IP65 enclosure also has additional space for two DIN-rail modules so you can extend its functionality.
  • Page 26: Quick Setup Guide

    11.QUICK SETUP GUIDE 1. Unlock the MICROSIM card and insert it into your TGSM2 module. MICROSIM card TGSM2 TGSM2 Phone: 000 000 000 PIN: ******* Make the connections as shown in the diagram and activate the power supply (ignore module supply options in GSM-BOX panel).
  • Page 27 Send the message !1234,O,ON when you want to activate the output and the message !1234,O,OFF when you want to deactivate the output. Example: User: !1234,O,ON !1234,O,ON TGSM2: Toscano TGSM2, active output Toscano TGSM2, active output Text message TGSM2 If you want to customise your equipment name, send the message !1234,M9,new_name where you must replace new_name with the name you want to give to your equipment.
  • Page 28 Sending SMS Digital Input 2 Vigilec external control input connection Pump control Relay output Toscano Línea Electrónica, S.L. Autovía A-92, Km. 6,5 - 41500 Alcalá de Guadaíra, Seville - SPAIN - (+34) 954 999 900 - www.toscano.es - info@toscano.es...
