C
ONNECTION
Cables not included.
Please purchase the necessary cables at your local store.

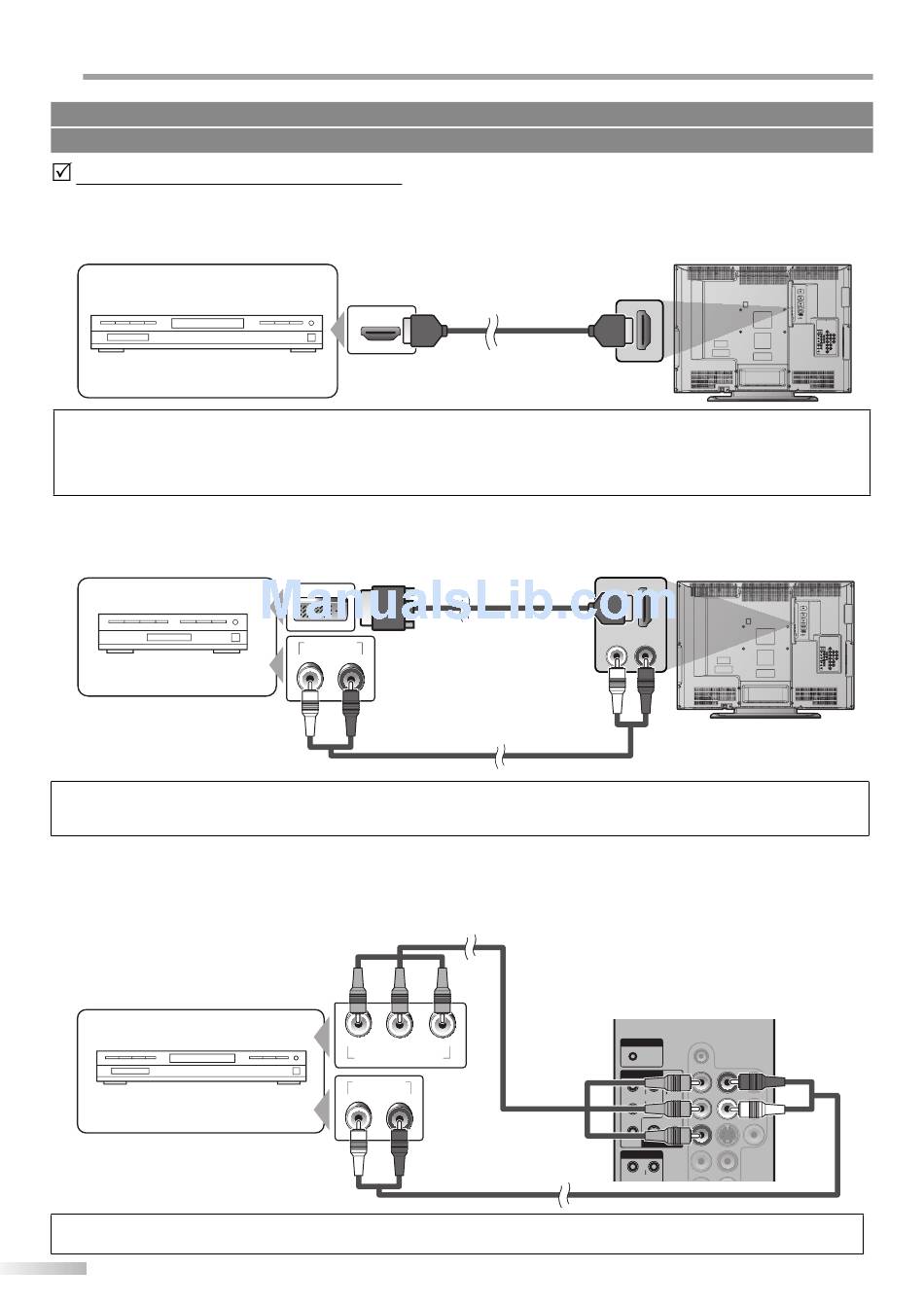

External Device Connection

[HDMI Connection]
HDMI (High Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a
single cable. It ensures that the content sent from the source to this unit is of the highest possible resolution.
e.g.)
DVD recorder with the HDMI output jack
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals compliant with EIA-861.
• This unit accepts only 2 channel audio signal (LPCM).
• You need to select "PCM" for the digital audio output of the device connected or the HDMI audio setting. There may be no audio output if
you select "Bitstream", etc.
[HDMI-DVI Connection]
If your video device has a DVI output jack, connect using an HDMI-DVI conversion cable. An HDMI-DVI conversion cable
requires a separate audio cable connection as well. As such, only the HDMI 1-IN jack can be used.
e.g.)
Cable box or satellite box
with the DVI output jack
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals. DVI does not display 480i image that is not compliant with EIA/CEA-861/861B.
• Audio signals are converted from digital to analog for this connection.
[Component Video Cable Connection]
Component video connection offers better picture quality for video devices connected to the unit. Use a component
video cable to connect the unit to external video devices equipped with component video output jacks.
If you connect to the unit's COMPONENT 1 or COMPONENT 2 video input jack, connect RCA audio cables to the audio
L/R jacks of COMPONENT 1 or COMPONENT 2 accordingly.
e.g.)
DVD recorder with the component
video output jacks
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals.
10
EN
HDMI cable
HDMI OUT
HDMI-DVI
conversion cable
DVI OUT
AUDIO OUT
L R
RCA audio cable
(green) (blue) (red)
Y Pb Pr
COMPONENT VIDEO OUT
AUDIO OUT
L R
RCA audio cable
rear of this unit
To HDMI 1-IN or
HDMI 2-IN jack
To HDMI 1-IN jack
rear of this unit
To AUDIO IN jacks
component video cable
rear of this unit
PC-IN
AUDIO
(green)
COMPONENT 1
Y R R
AUDIO AUDIO
(blue)
Pb L L
S VIDEO VIDEO
(red)
Pr
VIDEO 1
COMPONENT 2
Y R
AUDIO
PC-IN
COMPONENT 1
VIDEO 1
COMPONENT 2
PC-IN
COMPONENT 1
VIDEO 1
COMPONENT 2
