OWNER'S MANUAL
IMPORTANT!
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE BIKE.

Advertisement

loading
Need help?

Need help?

Do you have a question about the X-Bike and is the answer not in the manual?

Questions and answers

Related Manuals for HPF X-Bike

Summary of Contents for HPF X-Bike

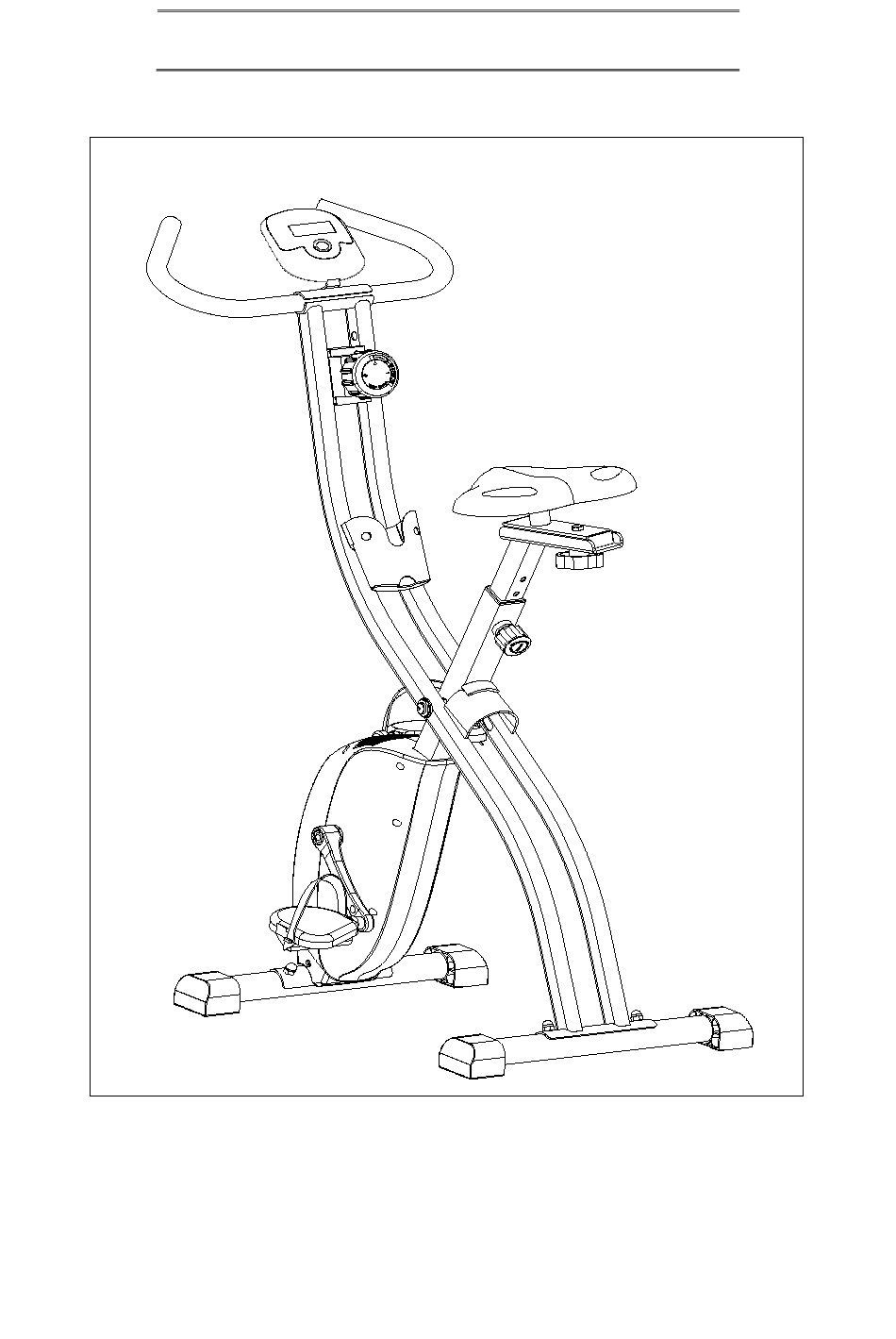

  • Page 1 OWNER'S MANUAL IMPORTANT! PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE BIKE.

  • Page 2: Important Safety Information

    Important Safety Information Thank you for purchasing our product. Proper use can ensure your safety and health, so please read the following text carefully before using this equipment. 1. It is very important to read all the instructions carefully before assembling or operating this product.

  • Page 3: Explode View

    EXPLODE-VIEW:...

  • Page 4: Part List

    PART LIST SEPCIFICTION SEPCIFICTION COMPUTER KNOB M16*1.5*22*Φ37 SENSOR WIRE PEDAL L/R FOAM GRIP Φ23*5*350 END CAPΦ38*75*50*48 FRONT ARMREST BOTTOM TUBE END CAPE Φ25*16 ARC WASHER d8*Φ20*2*R30 SCREW M8*40*20*S6 NUT M8*H16*S13 ARC WASHER d8*Φ20*2*R16 BOLT M8*50*20*H5 THE UPPER COVER FOR SENSOR WIRE HANDELBAR BACK BRACKET JOIN GROMMET PLUG Φ12*11*Φ3...
  • Page 5 STEP 1: a. Secure bottom tube(25) to front bracket join(20) and back bracket join(9) with bolts(28), arc washers(26) and nuts(27). b. Secure pedal(23L/R) to crank(31L/R).
  • Page 6 STEP 2: a. Secure front armrest(4) and the upper cover for handlebar(8) to back bracket join(9) with screws(6) and arc washers(7). b. Secure saddle(40) to saddle post join(39) with washers(32) and nuts(38). c. Secure saddle post join(39) to saddle post(37) with knob(35) and washer(36).
  • Page 7 STEP 3: Connect sensor wire(2) with sensor wire(12), then insert computer(1) into the upper cover of handlebar(8),finish the assembly.
  • Page 8 Stretch exercise No matter how you do sports, please do some stretch at first . The warm muscle will extend easily, so, warm up yourself with 5-10minutes, Then We suggest following stretch exercise, five times.10counts for each time or longer , do these exercise again after sports.
  • Page 9 ©2018 HPF. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
