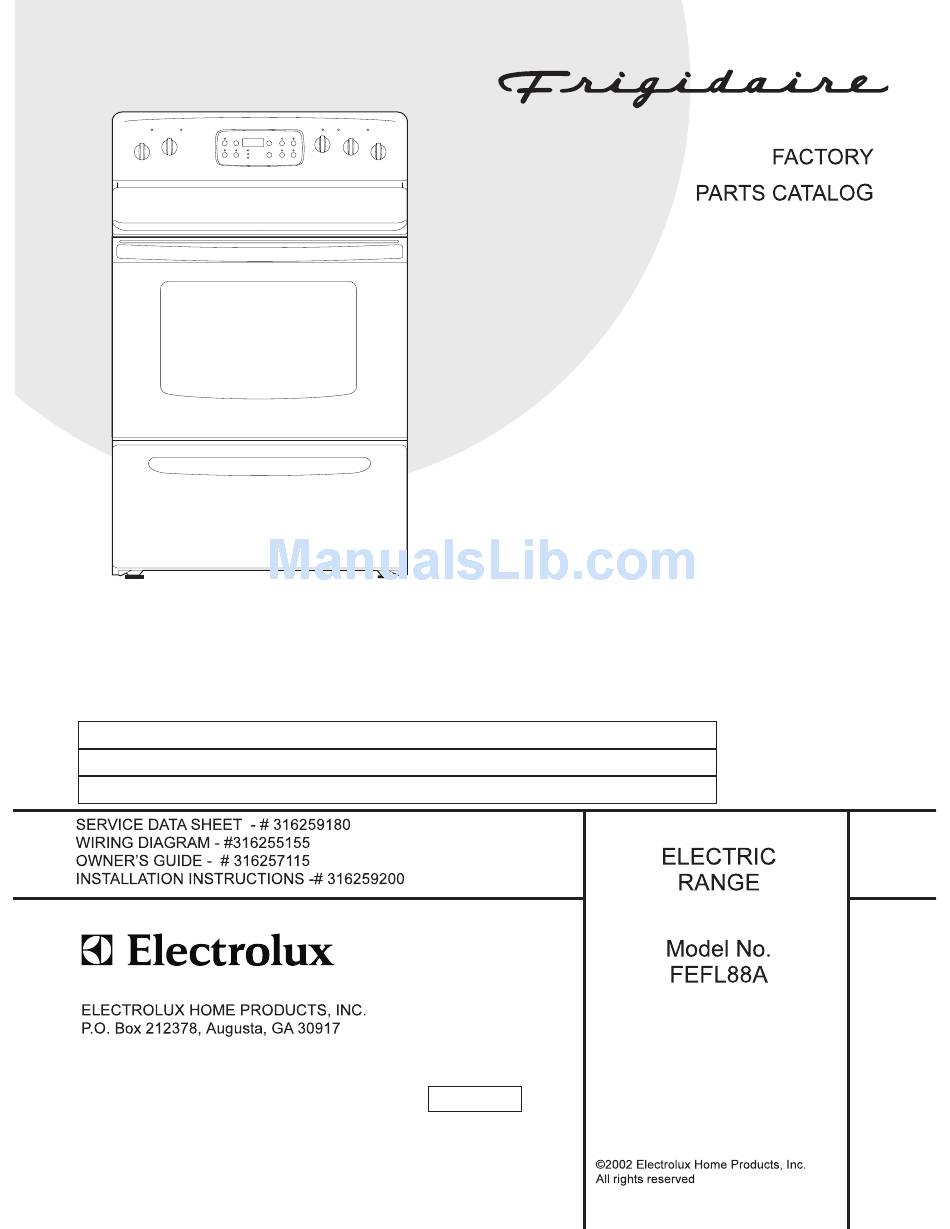

- Page 1 PRODUCT NO. BASE MODEL NO. COLOR MARKET FEFL88ABA FEFL88A black North America FEFL88ASA FEFL88A white North America Publication No. 5995373338 020603 -EN/SERVICE /ECL...
- Page 2 BACKGUARD 06/02...
- Page 3 BACKGUARD A = FEFL88A (FEFL88ASA) B = FEFL88A (FEFL88ABA) POS. NO PART NO DESCRIPTION 316239900 Shield,backguard ,rear wall 13A# 316095500 Switch,infinite ,drawer/zone ,warmer 316022500 Light/Lamp,warmer,indicator ,drawer/zone,125 V 316220214 Support,backguard ,white ,RH 316220216 Support,backguard ,black ,RH 316220215 Support,backguard ,white ,LH 316220217...
- Page 4 BODY 06/02...
- Page 5 BODY A = FEFL88A (FEFL88ASA) B = FEFL88A (FEFL88ABA) POS. NO PART NO DESCRIPTION 316201300 Back,main 316230102 Panel,bodyside ,white ,RH 316230103 Panel,bodyside ,white ,LH 316230104 Panel,bodyside ,black ,RH 316230105 Panel,bodyside ,black ,LH 316129200 Screw,leveling ,plastic ,with stop 316067902 Rack,oven 316262900...
- Page 6 TOP/DRAWER 06/02...
- Page 7 TOP/DRAWER A = FEFL88A (FEFL88ASA) B = FEFL88A (FEFL88ABA) POS. NO PART NO DESCRIPTION 316011503 Drawer 316231500 Liner,drawer 316231305 Panel,drawer ,white 316231306 Panel,drawer ,black 3051163 Glide,drawer ,rear 15A# 316010205 Element,surface ,6" ,1200 W ,radiant 15B# 316224300 Element,dual ,9"/6" ,surface ,2100W/700W,radiant...
- Page 8 DOOR 06/02...
- Page 9 DOOR A = FEFL88A (FEFL88ASA) B = FEFL88A (FEFL88ABA) POS. NO PART NO DESCRIPTION 5303935192 Trim kit-door,3 sided ,white ,w/tape and foil 5303935191 Trim kit-door,3 sided ,black ,w/tape and foil 5303935201 Glass,door kit ,white ,outer ,w/foil tape 5303935200 Glass,door kit ,black ,outer ,w/foil tape...
-
Page 10: Wiring Schematic
WIRING SCHEMATIC 06/02... -
Page 11: Wiring Diagram
WIRING DIAGRAM...
