Wiring Diagram
FEFL67DC.eps L20G0014.eps T20V0038.eps T20T1827.eps T20D0015.eps
316417754d.eps 316417754s.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378
Augusta, GA 30917
Product No.
FEFL67DCE
Series
30" f/s elec
Color
stainless
Market
North America
Wiring Diagram
316417754
Owner's Guide
316417003
Installation Instructions 316259206
Service Data Sheet
316417613
Publication No.
5995429668
05/02/22
(EN/SERVICE/BJH)
369
Copyright
30-INCH FREE-
STANDING ELECTRIC
RANGE
Model No.
FEFL67D
©
2005 Electrolux Home Products, Inc.
All rights reserved.
Advertisement
Related Manuals for Frigidaire FEFL67D
Summary of Contents for Frigidaire FEFL67D

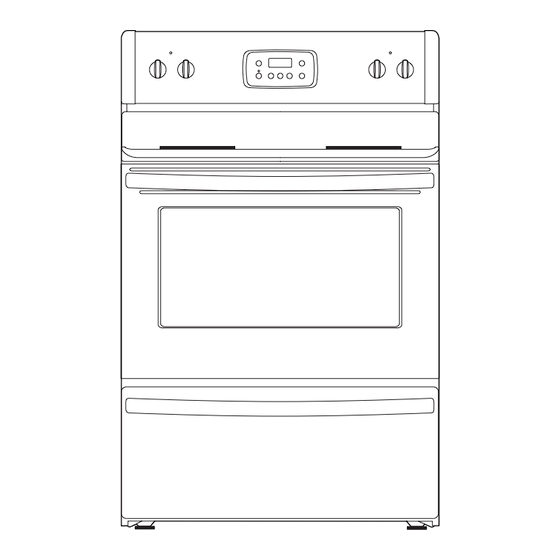

- Page 1 Market North America Wiring Diagram 316417754 Owner's Guide 316417003 Installation Instructions 316259206 Service Data Sheet 316417613 30-INCH FREE- STANDING ELECTRIC Model No. Publication No. 5995429668 05/02/22 (EN/SERVICE/BJH) © Copyright 2005 Electrolux Home Products, Inc. RANGE FEFL67D All rights reserved.
- Page 2 Publication No: 5995429668 FEFL67DCE BACKGUARD 02/05...
- Page 3 POS. NO PART NO. 316239900 316241000 316241001 316022500 316220216 316220217 316240904 316240905 316246651 20 # 316418200 316419103 316245900 24 # 316246001 316223002 316040201 54 # 316021500 54A# 316021501 316234013 5303288565 316021105 316021108 316021109 316021110 # Functional Parts * Non-Illustrated Parts FEFL67DCE BACKGUARD DESCRIPTION...
- Page 4 Publication No: 5995429668 FEFL67DCE BODY NOTE: Oven Liner N/A T20V0038 Ass. du four N/A 02/05...
- Page 5 POS. NO PART NO. 316401800 316400104 316400105 316272900 316407200 316404500 316400601 12 # 316407101 316116400 5303013071 08011086 316087500 18 # 316405800 316408000 5303289914 316407301 37 # 316217001 316407700 316246501 316234100 316422400 316403800 316406600 316406500 316208200 316208302 316247300 5303935238 316085600 316205500 316278800 66 # 316203200...
- Page 6 Publication No: 5995429668 FEFL67DCE TOP/DRAWER T20T 02/05...
- Page 7 POS. NO PART NO. 316408701 316403300 316409403 316407400 15 # 316010205 15A# 316224200 316421239 316436600 316427600 316099202 316214200 316270200 316278300 316416830 316264000 316279700 316021105 316021108 316021109 316021110 5308014215 # Functional Parts * Non-Illustrated Parts FEFL67DCE TOP/DRAWER DESCRIPTION Drawer, utility Liner, drawer Panel, drawer front, stainless Glide, drawer, rear Element, surface, 6", 1200 W, radiant...
- Page 8 Publication No: 5995429668 FEFL67DCE DOOR 02/05...
- Page 9 POS. NO PART NO. 316408503 316406307 316405600 316117500 316423701 316433303 316008401 316405000 316407902 316102208 316102205 316402403 316408600 316437704 316418900 316270200 316408201 316408300 316021110 316433603 316279700 316021109 5303285179 # Functional Parts * Non-Illustrated Parts FEFL67DCE DOOR DESCRIPTION Glass, door front, black Shield, wool Insulation, oven door Glass, oven door, heat barrier...
-
Page 10: Wiring Schematic
Publication No: 5995429668 FEFL67DCE WIRING SCHEMATIC 02/05... -
Page 11: Wiring Diagram
FEFL67DCE Publication No: 5995429668 WIRING DIAGRAM 02/05 # Functional Parts * Non-Illustrated Parts...
