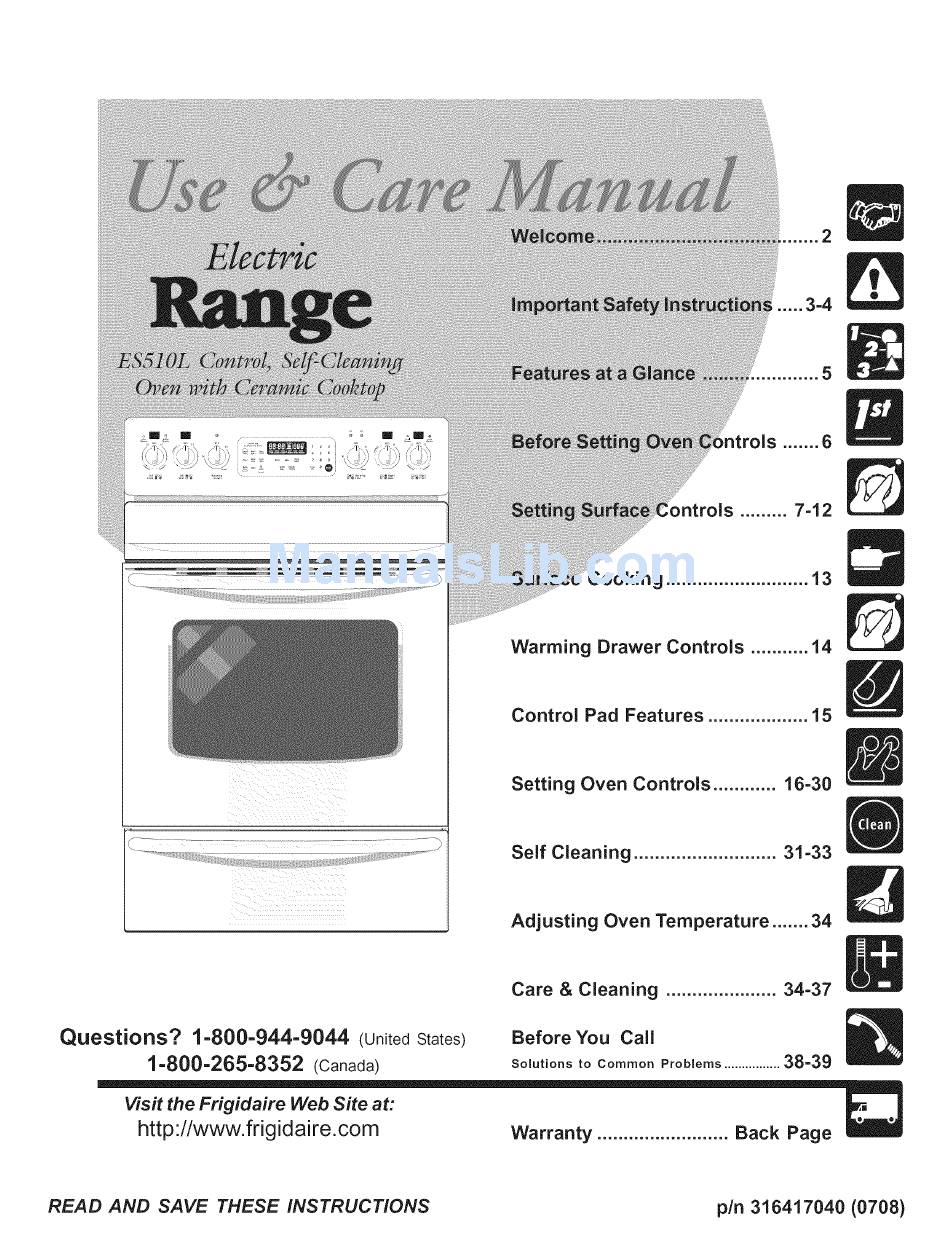

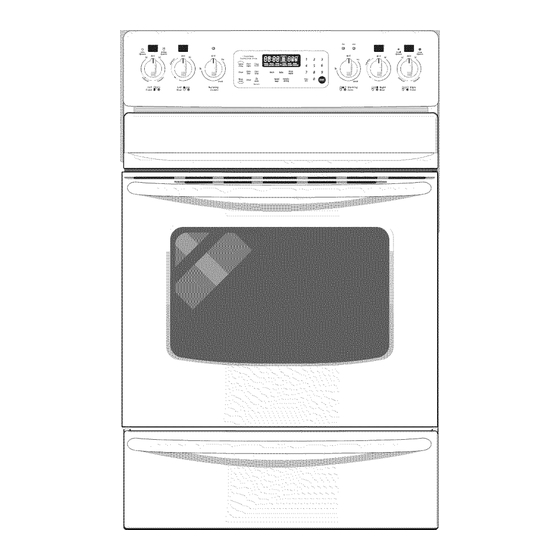

Frigidaire FEFLZ87GCA Use & Care Manual

Es510l control, self-cleaning oven with ceramic cooktop
Hide thumbs
Table of Contents

Advertisement

Quick Links

..... 3-4
>ntrols
....... 6
J
:_ntrols ......... 7-12
g ...........................
13
Warming
Drawer
Controls
........... 14
Control
Pad Features
...................
15
Setting
Oven Controls
............
16-30
Self Cleaning
...........................
31-33
Adjusting
Oven Temperature
....... 34
Care & Cleaning
.....................
34-37
Questions?
1-800-944-9044
(United States)
Before
You Call
_!_
1-800-265-8352
(Canada)
solutions to CommonProblems . ............... 38-39
Visit the Frigidaire
Web Site at:
http://www.frigidaire.com
Warranty
.........................
Back Page
READ AND
SAVE THESE
INSTRUCTIONS
pin 316417040
(0708)

Advertisement

Table of Contents
loading

Related Manuals for Frigidaire FEFLZ87GCA

Summary of Contents for Frigidaire FEFLZ87GCA

  • Page 1 ..34 Care & Cleaning ..... 34-37 Questions? 1-800-944-9044 Before You Call (United States) 1-800-265-8352 (Canada) solutions to CommonProblems ....38-39 Visit the Frigidaire Web Site at: http://www.frigidaire.com Warranty ......Back Page READ AND SAVE THESE INSTRUCTIONS pin 316417040 (0708)

  • Page 2: Register Your Product

    Congratulations on your purchase of a new range! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority. We know you'll enjoy your new range and Thank You for choosing our product. We hope you consider us for future purchases. PLEASE CAREFULLY READ AND SAVE THESE...

  • Page 3: Important Safety Instructions

    important Safety Instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains Jm portant safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. This symbol will help alert you to situations that may cause serious bodily harm, death or property damage. This symbol will help alert you to situations that may cause bodily injury or property damage.
  • Page 4 IMPORTANT INSTRUCTIONS FOR USING YOUR IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP OVEN * Know which knob controls each surface heating unit. Place a * Use Care When Opening Oven Door or Warmer Drawer (if pan of food on the unit before turning it on, and turn the unit off equipped)--Stand to the side of the range when opening the door before removing the pan.

  • Page 5: Features At A Glance

    Features AtA Glance ®@ _= m co., J_ Zo*_e @ Rear Fro.l ® ® Your Electric Range Features include: Electronic Oven Control with Kitchen Timer. Dual Element Control (some models). Dual Element Control (some models). Warming Drawer Control (some models). Warming Drawer Indicator...
  • Page 6 ¸¸ vOven Controls OVENVENT Oven Vent Location The oven vent is located under the left side of the control panel (See Fig. 1). When the oven is on, warm air passes through the vent. This venting is necessary for proper air circulation in the oven and good baking results.

  • Page 7: Glass Cooktop

    About the Ceramic Glass Cooktop Cooktop radiant areas that heat Models with 4 Dual Elements The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Make sure the diameter of the pan matches the diameter of the element outline on the cooktop ii _...
  • Page 8 The Electronic Surface Element Control (ESEC) The Electronic Surface Element Control ("ESEC") feature includes 4 digital display windows. The ESEC feature provides a numeric digital setting for 4 of the radiant surface element positions on the cooktop. These settings work the same way as normal knob setting indicators work except the settings are displayed in digital windows (Figs.
  • Page 9 ESEC Hot Element Indicator Message (HE) After using any of the single, dual or Bridge radiant element positions the cooktop will become very hot. Even after turning the control knob to OFF, the cooktop will remain hot for some time. The ESEC control monitors the temperature of the cooktop and displays the message "HE"...
  • Page 10 The Dual Radiant Elements (all models) The cooktop is equipped with one or more dual radiant surface elements. Symbols on the control panel (See Fig. 4) are used to indicate which coil of the dual radiant element will heat. The symbol shown in Fig.
  • Page 11 To Operate the Bridge Element (some models): Place correctly sized cookware on the Bridge surface element. Push in and turn the control knob counterclockwise (See Figs. 1 & 2) to heat the portion of the Bridge element for normal shaped cookware or clockwise (See Figs. 3 & 4) for larger or rectangular shaped cookware.
  • Page 12 Operating the Warming Zone (some models) The purpose of the Warming Zone is to keep hot cooked foods at serving temperature. Use the Warming Zone to keep cooked foods hot such as; vegetables, gravies, casseroles, soups, stews, breads, pastries and oven-safe dinner plates. Always start with hot food.
  • Page 13 *CORRECT INCORRECT Using proper cookware The size and type of cookware used will influence the setting needed for best cooking results. Cookware should have fiat bottoms that make good contact with o Curved and warped pan the entire surface heating element (See Fig. 2). Check bottoms.
  • Page 14 (some models) Arranging Warming Drawer Rack Positions The rack can be used in 2 ways: Always use pot holders or • In the upright position to allow low profile food items to be placed both oven mitts when removing food from the under and on top of the rack (for example, rolls or biscuits on top of the rack Warming Drawer as cookware and plates and a casserole dish underneath).
  • Page 15 READ THE iNSTRUCTiONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this Use & Care Manual. OVEN LIGHT--Use TIMERON/...

  • Page 16: Oven Controls

    Setting Oven Controls Even-Cook- • Convection Oven Speed Oven Timer clea_ light OnlOff Clean Bake Start Broil Bake Keep time time warm Maxx Clock Speed Favorite Clear clean Lock bake settin_ Controls Setting the Clock The CLOCK _ pad is used to set the clock. The clock may be set for 12 or 24 hour time of day operation.
  • Page 17 Setting Continuous Bake or 12 Hour Energy Saving The TIMER ON/OFF _ and CLEAN ___ pads control the Continuous Bake or 12 Hour Energy Saving features. The oven controt has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left on for more than 11 hours and 59 minutes, The oven can be programmed to override this feature for Continuous Baking, INSTRUCTIONS PRESS...
  • Page 18 Setting Oven Lockout Feature The _ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door, prevents the Warming Drawer and most oven controls from being turned ON. It does not disable the clock, Kitchen Timer or the interior oven light.

  • Page 19: Operation

    • • Even-Cook. • Convection Oven Speed Oven Timer clean light OnlOft Clean Bake Start Broil Bake Keep time time warm Maxx Clock Speed Favorite Clear clean Lock bake setting lOft Controls Setting Silent Control Operation The START TIME _ and CLEAN _e_ pads control the Silent Control operation feature.
  • Page 20 CsettingOven:Con ¸ CU Z?: ¸¸: • • Even-Cook. • Convection Oven Speed Oven Timer clean light OnlOff ¸Keep Clean Bake Start Broil Bake time time warm Max× Clock speed Favorite Clear /off clean Lock bake setting ControLs Setting Bake The BAKE_ pad controls normal baking.
  • Page 21 Setting Timed Bake pads control the Timed Bake feature. The automatic timer of the Timed Bake feature The BAKE and BAKE TiME _ will turn the oven OFF after cooking for the desired amount of time you selected. iNSTRUCTiONS PRESS DISPLAY To program the oven to begin baking...
  • Page 22 Setting Delayed Timed Bake The BAKE , BAKE TIME _ and START TIME _ pads control the Delayed Timed Bake feature. The automatic timer of the Delayed Timed Bake will turn the oven ON and OFF at the time you select in advance. INSTRUCTIONS PRESS DISPLAY...

  • Page 23: Setting Broil

    sott..go o,.co,.t ol Setting Broil pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler for even coverage. The Broil feature is preset to start broiling at 550°F however, the Broil feature temperature may be set at any temperature between 400°F and 550°F.
  • Page 24 setting o yencontrols Benefits of Speed Bake Cooking System: -- Some foods may cook up to 25 to 30% faster, saving time and energy. -- Multiple rack baking. -- No special pans or bakeware needed. Setting Speed Bake The SPEED BAKE pad controls the Speed Bake cooking feature.

  • Page 25: Setting Oven Controls

    Setting Oven Controls Using the Favorite Settings Feature FAVORITE SETTING pad is used to record and recall your favorite recipe settings. This feature may store and recall from 1 to 3 different settings. The Favorite Setting feature may be used with Bake or a Timed Bake. This feature will not work with any other function including a Delayed Timed Bake setting.

  • Page 26: Setting The Sabbath Feature (For Use On The Jewish Sabbath & Holidays)

    .-L-. Setting the Sabbath Feature (for use on the Jewish Sabbath & Holidays) "_.,KK_" The @ BAKE TIME and @ START TIME pads are used to set the Sabbath feature. The Sabbath feature can only be used with the pad. The oven temperature may be set higher or lower after setting the Sabbath feature (the oven temperature adjustment feature should be used only during Jewish Holidays), however the display will not visibly change and no audible tones will be provided when a change occurs.
  • Page 27 Setting the Sabbath Feature (cont'd) It is recommended that any oven temperature change with the Sabbath feature activated be followed with 2 presses of the START pad. This will insure the oven remains ON even if the attempt to set the oven temperature was lower or higher than the oven control can accept.
  • Page 28 During theSelf-Cleaning Self-Cleaning Oven cycle, t heoutside oftherange can A Self-Cleaning oven cleans itself with high temperatures (well above cooking become veryhottothetouch.DONOT temperatures) which eliminate soils completely or reduces them to a fine leave small c hildren unattended n ear t he powdered ash you can wipe away with a damp cloth.
  • Page 29 TheSPEED CLEAN _, CLEAN _& MAXX CLEAN _(_,_), pads are used to start a Self-Cleaning cycle. When used with START TIME @ pad, a delayed Self-Cleaning cycle may also be programmed. This feature allows for any Self-Cleaning cycle times from 2 hours (using Speed Clean), 3 hours (using Clean) to 4 hours (using Maxx Clean). During the Self-Cleaning cycle, the outside of the range can become very hot to the touch.
  • Page 30 iNSTRUCTiONS PRESS DISPLAY When the Self-Clean cycle is done: The time of day,"DOOR LOCKED" and "CLEAN" icon will remain in the display. Once the oven has cooled down for approximately 1 HOUR, and the "DOOR LOCKED" icon is no longer displayed, the oven door can then be opened.
  • Page 31 Thetemperature i ntheovenhasbeen pre-set a tthefactory. W henfirstusing theoven, b e Note: Theoven suretofollowrecipe times andtemperatures. Ifyouthinktheovenistoohotortoocool, t he temperature adjustments temperature i ntheovencanbeadjusted. Before adjusting, testa recipe byusing a made with this feature will temperature setting thatishigher o rlower thantherecommended temperature. Thebaking not change the Self-Clean results should helpyoutodecide howmuch ofanadjustment isneeded.

  • Page 32: How To Clean

    Surfaces Howto Clean Glass, Painted For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution Plastic Body Parts & of vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth. Control Knobs Glass cleaners may be used if sprayed...
  • Page 33 Prior to using your cooktop for the first time, apply the recommended cooktop cleaning cream to the ceramic surface (visit www.frigidaire.com for replacement cleaner). Buff with a non-abrasive cloth or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

  • Page 34: Removing & Replacing The Lift-Off Oven Door

    Do not use the following on the ceramic glass cooktop: • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean. • Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners, as they may etch or discolor the cooktop.
  • Page 35 Solutions to Common Problems Before you carl for service, review the following list. It may save you time & expense. The list includes common occurrences (shown in bold) that are not the result of defective workmanship or materials in this appliance. The possible corrections to these problems are provided...
  • Page 36 Major Appfiance Wa 'r, a nty lnfor,mation Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials...
