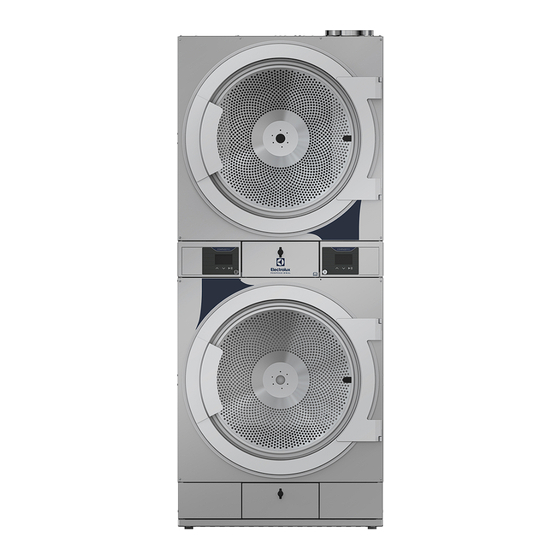

- Page 1 Installation manual Tumble dryer DE-650S Compass Pro Type N3... 438917591/US Original instructions 2023.12.18...
-
Page 3: Fire Or Explosion Hazard
Safety WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death or property damage. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. WHAT TO DO IF YOU SMELL GAS: Do not try to light any appliance. - Page 4 Safety WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life.
- Page 5 Safety WARNING: The dryer is intended for use only with fabrics that have been washed with water. WARNING: To avoid fire hazard, do not dry articles containing foam rubber or similarly textured rubberlike materials. WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR MACHINE.
- Page 6 Safety NOTICE TO: OWNERS, OPERATORS AND DEALERS IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL NEGLECT OR BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY. TO ASSURE THE SAFETY OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLOWING MAINTENANCE CHECKS MUST BE PERFORMED ON A DAILY BASIS. Prior to operation of the machine, check to make certain that all operating instructions and warning signs are affixed to the machine and legible.
-
Page 7: Notice To Installer
Refer to complete installation instructions provided in manuals accompanying the machine. Contact Electrolux Professional Technical Support with any questions BEFORE installing this machine. Damage resulting from inadequate installation materials or improper installation... -
Page 8: Electrical Information
Safety Electrical Information It is your responsibility to have ALL electrical connections (including grounding) made by a properly licensed and competent electrician to assure that the electrical installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL electrical connections, material, and workmanship must conform to the applicable requirements of the NATIONAL ELECTRIC CODE ANSI/NFPA NO. -
Page 9: Gas Information
Safety Gas Information It is your responsibility to have ALL plumbing connections made by a qualified professional to insure that the installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL plumbing connections, material, and workmanship must conform to the applicable requirements of National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1 - both the latest edition. - Page 10 Safety Natural Gas If the pressure is too low, ignition failure and/or slow drying times may result. Excessively high supply pressure will result in erratic operation of the gas valves internal pressure regulator. Further information in section: Gas connection. Propane Gas Dryers made for use with propane gas have the gas valve pressure regulator blocked open, so that the gas pressure must be regulated upstream of the dryer.
-
Page 11: Table Of Contents
Contents Contents 1 Safety Precautions ..........................13 Additional safety precautions for gas heated tumble dryer ............15 General safety information......................15 Commercial use only........................15 Copyright ..........................15 Symbols..........................16 2 Warranty terms and exclusions......................17 3 Technical data...........................18 Drawing ..........................18 Technical data .........................19 4 Setup ...............................20 General...........................20 Unpacking ..........................20 Recycling instruction for packaging ...................21... -
Page 13: Safety Precautions
Installation manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •... - Page 14 Installation manual • A-weighted emission sound pressure level at working stations: 70 dB(A).
-
Page 15: Additional Safety Precautions For Gas Heated Tumble Dryer
The machine/machines covered by this manual is/are made for commercial and industrial use only. 1.4 Copyright This manual is intended solely for consultation by the operator and can only be given to third parties with the permis- sion of Electrolux Professional AB company. -
Page 16: Symbols
Installation manual 1.5 Symbols Caution Caution, hot surface Caution, high voltage Warning, risk of fire / flammable material Danger, crush hazard Read the instructions before using the machine... -
Page 17: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 18: Technical Data
Installation manual 3 Technical data 3.1 Drawing fig.W00530 Operating panel Door opening, ⌀ 687 mm / ⌀ 27 1/16 inch Electrical connection Gas connection Exhaust connection 1335 2085 1310 1240 inch 34 1/4 52 9/16 82 1/16 1 3/8 51 9/16 48 13/16 1085 inch... -
Page 19: Technical Data
Installation manual 3.2 Technical data Weight, net Drum volume litres 2 x 423 2 x 15 Drum diameter inch 32 3/4 Drum depth inch 29 13/16 Drum speed 43–44 Rated capacity, filling factor 1:18 (Max. load) 2 x 23.5 2 x 51.8 Rated capacity, filling factor 1:22 (Recommended load) 2 x 19.2 2 x 42.3... -
Page 20: Setup
Installation manual 4 Setup 4.1 General The principle work flow to setup or install this machine is as follows: 1. Unpacking 2. Positioning/siting, levelling or/and securing the machine. 3. Correcting the fresh air/air intake's size, exhaust duct's size and pipe(s) connections in considering a stand-alone machine or sharing exhaust duct. -
Page 21: Recycling Instruction For Packaging
Installation manual 4.3 Recycling instruction for packaging fig.X02460 Fig. Description Code Type Wrapping film LDPE 4 Plastics Corner protection PS 6 Plastics Cardboard packaging PAP 20 Paper Pallet FOR 50 Wood Screw FE 40 Steel Plastic bag PET 1 Plastics... -
Page 22: Siting
Installation manual 4.4 Siting The figure shows recommended distance to walls and/or other machines. D=C+B 1= Top view 2 = Side view on built in machine Y = For built-in machines it is recommended that the wall section Y is a removable finish piece. If so, E and F can be 0. fig.X00959A 5–500 mm / 3/16–19 11/16 inch (Min. -
Page 23: Connection To Network
Installation manual 4.5 Connection to network If several machines are to be connected to a network, the knock-outs (A) in the side panels must be removed before installation. A bushing for network cables must be installed from the inside in the right-hand side panel. The bushing must be pushed right through the hole in the left-hand side panel on the side of the machine. -
Page 24: Securing The Machine
Installation manual 4.6.1 Securing the machine To ensure steadiness of the machine it is important to fasten the machine to the foundation. Fasten the four fittings (A) to the foundation using four x M10 set screws (B). If the four fittings are not supplied, order kit No. -
Page 25: Evacuation System
Installation manual 5 Evacuation system 5.1 Air principle The fan creates low pressure in the machine, drawing air into the drum via the heating unit. The heated air passes through the garments and the drum holes. The air then flows out through a lint filter positioned below the drum. Then the air is evacuated through the fan and exhaust system. -
Page 26: Exhaust Duct
Installation manual 5.3 Exhaust duct • Only rigid or flexible metal duct should be used for exhausting. • Plastic ducting is not to be used. • Recommended material for exhaust is galvanized steel. • The duct is not to be assembled with screws or other fastening means that extend into the duct and catch lint. •... -
Page 27: Shared Exhaust Duct
Installation manual 5.4 Shared exhaust duct It is recommended that each machine is connected to a separate exhaust duct. When several machines shall use the same exhaust duct the exhaust duct must increase before each machine is added. The individual ducts should enter the main duct at an angle of 45° or less and in the direction of airflow. The recommended diameter increase progression is the one in the table. -
Page 28: Gas Connection
Installation manual 6 Gas connection 6.1 Fasten the label Before installing the machine fasten the label “Read the user instructions” on the inside of the door in a suitable place and at the front panel. The label must have the correct country code, choose the correct label from the gas kit. Read the technical instructions before installing the appli-... - Page 29 Installation manual The machine and its individual shut-off valve must be disconnected from the gas supply piping system during any pressure testing of the system at test pressures in excess of 1/2 psi (3.5 kPa). The machine must be isolated from the gas supply piping system by closing its individual manual shut-off valve dur- ing any pressure testing of the gas supply piping system at test pressures equal to or greater than 1/2 psi (3.5 kPa).
-
Page 30: Gas Installation
Installation manual 6.3 Gas installation The default gas appliances are built to run on either GNH (Natural gas) or LPG gas where the machine should be in- stalled at not over than 610 m (2001 ft) high altitude. Otherwise a kit for high altitude must be installed to the machine. For the kit No. -
Page 31: Table Of Pressure And Adjustment
Installation manual 6.4 Table of pressure and adjustment Gas category Heating power Inlet pressure Nozzle pressure Nozzle size (⌀ Air reducing/re- Label number (BTH/h) (WC") (WC") striction plate (mm) Natural 2 x 93900 4.60 Default Propane 2 x 93900 2.80 490375747 When a machine shall be installed or used on high altitude (2001 feet and higher) a kit for high altitude must be installed. -
Page 32: Test Run
Installation manual 6.5 Test run Note! Before test run the machine, ensure that the air flow/static back pressure has been adjusted accorded to the "Evacuation system" section. Adjust the air flow if necessary. • Loosen the measuring branch screw (2) 1/4 turn; connect a manometer to the measuring branch and make sure the connection is tight to prevent air leakage. -
Page 33: Converting Instructions
Installation manual 6.6 Converting instructions • Disconnect the power to the machine. • Demount the back panel. • Demount the air restriction plate (1). • Demount the nozzle (2) and mount the new supplied nozzle. • Re-mount the air restriction plate. fig.X02718 •... -
Page 34: Data Label
ORFICE MM: D (0-200 FT ALTITUDE) MANIFOLD PRESSURE: C ” WC CLOTHES DRYER VOL: II For safety reasons use only genuine spare parts. Made in Sweden Electrolux Professional AB 341 80 Ljungby, Sweden WXXXXX 9868XXXXXX Product no.: 09XXX / 99XXXXX Serial no.:... -
Page 35: Electrical Connection
Installation manual 7 Electrical connection 7.1 Electrical installation The electrical installation may only be carried out by qualified personnel. Machines with frequency-controlled motors can be incompatible with certain types of earth leakage circuit break- er. It is important to know that the machines are designed to provide a high level of personal safety, which is why items of external equipment such as earth leakage circuit breakers are not necessary but is recommended. -
Page 36: Three-Phase Connection
Installation manual 7.3 Three-phase connection Demount the upper rear cover panel. Connect the earth and other wires as shown. L1 L2 L3 L2 L3 3NAC L1 L2 L3 N 3NAC 3NAC L2 L3 When the installation is completed remount the cover panel and check: •... -
Page 37: Electrical Connections
Installation manual 7.4 Electrical connections Electrical connections Heating alternative Main voltage Heating power Total power Recommended fuse ITCB 1.55 Gas heated 120V 1~ 208–240V 1~ 1.55 Total power and recommended fuse does not depend on the heating power in those cases. -
Page 38: At First Power Up
Installation manual 8 At first power up When the installation is complete and the power is connected for the first time you will be forced to make the following settings. When one setting is ready you will automatically enter the next one. Follow the instructions on the display. •... -
Page 39: Function Check
Installation manual 9 Function check May only be carried out by qualified personnel. A function check must be made when the installation is finished and before the machine can be ready to be used. Whenever a repair has been made, a function check must be performed before the machine can be used again. Check the automatic stop of the machine •... - Page 40 Installation manual If the direction is wrong, swap two of the three phases to the left on the connection terminal. fig.7119 Check the heat • Let the machine work for five minutes on a program with heat. • Check that the heating is working by opening the door and feel if there is heat in the drum. Ready to use If all tests are OK the machine is now ready to be used.
-
Page 41: Disposal Information
Installation manual 10 Disposal information 10.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 44 www.electroluxprofessional.com...
