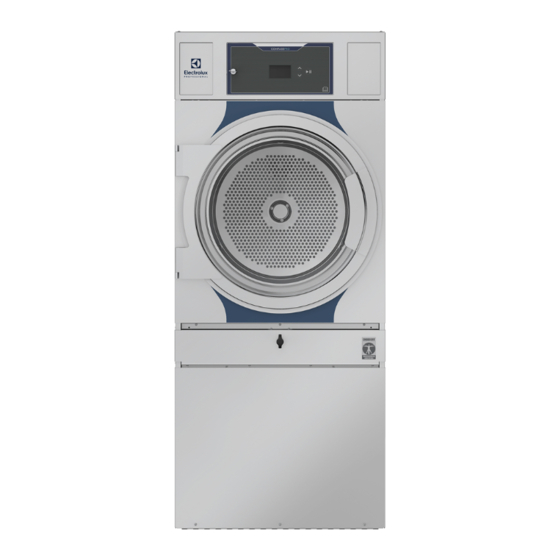

- Page 1 User manual Tumble dryer TD6–16 Compass Pro Type N2... 438917946/GB, IE Original instructions 2023.02.28...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 Additional safety precautions for gas heated tumble dryer .............7 General safety information......................7 Commercial use only........................7 Copyright ..........................7 Symbols............................7 2 Warranty terms and exclusions......................8 3 Operating panel ..........................9 4 Program description ..........................10 General...........................10 Program description ......................... 11 5 Handling ............................14 Load ............................14 How to start the machine ......................15... -
Page 5: Safety Precautions
User manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •... - Page 6 User manual • Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire.
-
Page 7: Additional Safety Precautions For Gas Heated Tumble Dryer
The machine/machines covered by this manual is/are made for commercial and industrial use only. 1.4 Copyright This manual is intended solely for consultation by the operator and can only be given to third parties with the permis- sion of Electrolux Professional company. 1.5 Symbols Caution... -
Page 8: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 9: Operating Panel
User manual 3 Operating panel fig.X00727A Display Up- and down arrows that are used to scroll up and down through the menus on the display. Start- and pause button... -
Page 10: Program Description
User manual 4 Program description 4.1 General The machine is equipped with a number of programs adapted to the range of use to which the machine is intended — different markets use different programs. The following program description is a short description of some exam- ples of programs that can be used. -
Page 11: Program Description
User manual 4.2 Program description There are two types of programs, automatic programs and time programs. • Automatic programs has moisture detection and will stop when selected dryness is achieved. • Time programs has no moisture detection and will stop when the preset or selected time has ended. During a drying cycle, when the square in the lower right corner is fully ticked, it indicates that the heating unit is ac- tive / ON. - Page 12 Check that there are no moist areas in the load after finished drying process. Avoid entanglement of loaded items during drying process. To achieve disinfection of the laundry, in Electrolux Professional washing machines, it is necessary to use Global Disinfection programs during drying.
- Page 13 User manual Program name Care label Program description and display symbol Normal temperature. NORMAL TEMP LARGE TEXTILES The program will stop automatically when the fabric is dry. This program is suitable when drying large fabrics such as bed sheets, table cloths, curtains ect. The program is built to prevent the fabric from tangling together.
-
Page 14: Handling
User manual 5 Handling 5.1 Load Note! Remove all objects from pockets and make sure there are no metal objects such as screws, pins etc. left. Metal objects might cause damage to the drum. Load the goods into the machine according to recommendations and close the door. Make sure the filter is clean and clean if necessary. -
Page 15: How To Start The Machine
User manual 5.2 How to start the machine Automatic programs Select program with the up- and down arrows. Start the machine by pressing Time programs Select program with the up- and down arrows. Start the machine by pressing After start it is possible to change the time for the selected program: •... -
Page 16: Additional Functions
User manual 5.3 Additional functions There is a menu with additional functions available for selection after start. When pressing the menu will ap- pear on the display. Select from the menu with the up- and down arrows and press to activate. Note! Some of the functions may not be available or active on your machine. -
Page 17: When Program Has Ended
User manual 5.4 When program has ended Note! For the best possible drying result it is important to empty the machine as soon as the program has ended. If the machine is not emptied as soon as the program has ended the drum will rotate in short intervals in order to keep the goods from being wrinkled. -
Page 18: Error Codes
User manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 12:11 DRYING ERROR WITH RMC The longest permitted RMC time has been exceeded. -
Page 19: Maintenance
User manual 7 Maintenance 7.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Note! Lack of maintenance may deteriorate the performance of the machine and may cause damage to components. -
Page 20: Machines With Residual Moisture Control (Rmc)
User manual Check that the filter is clean and unbroken. Clean or replace if necessary. fig.7239 Remove any lint and dust around the machine. 7.4 Machines with residual moisture control (RMC) At regular basis, wipe off/clean drum and lifters with citric acid (Acidum citricum). If soap/softener residue remains, it is recommended also to use a coarse sponge. -
Page 21: Disposal Information
User manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 24 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
